Overview
The LC75394NE is an electronic volume control system
providing control over volume, balance, 5-band equalizer,
and input switching based on serial inputs.
Functions
Volume control:
The chip provides 25 levels of volume attenuation: in 2-
dB steps between 0 dB and –20 dB, 3-dB steps between
–20 dB and –32 dB, 4-dB steps between –32 dB and –52
dB, 4.5-dB steps between –52 dB and –70 dB, and –
∞.
Independent control over left and right channels
provides balance control.
Equalizer:
The chip provides control in 2-dB steps over the range
between +10 dB and –10 dB. Four of the five bands
have peaking equalization; the remaining one, shelving
equalization.
Selector:
The left and right channels each offer a choice of four
inputs. An external constant determines the
amplification for the input signal.
Features
Built-in buffer amplifiers reduce the number of external
parts necessary.
Silicon gate CMOS reduces switching noise.
Serial data input
—Supports CCB* format communication with the
system controller.
A built-in reference voltage circuit divides the supply
voltage (VDD) in half.

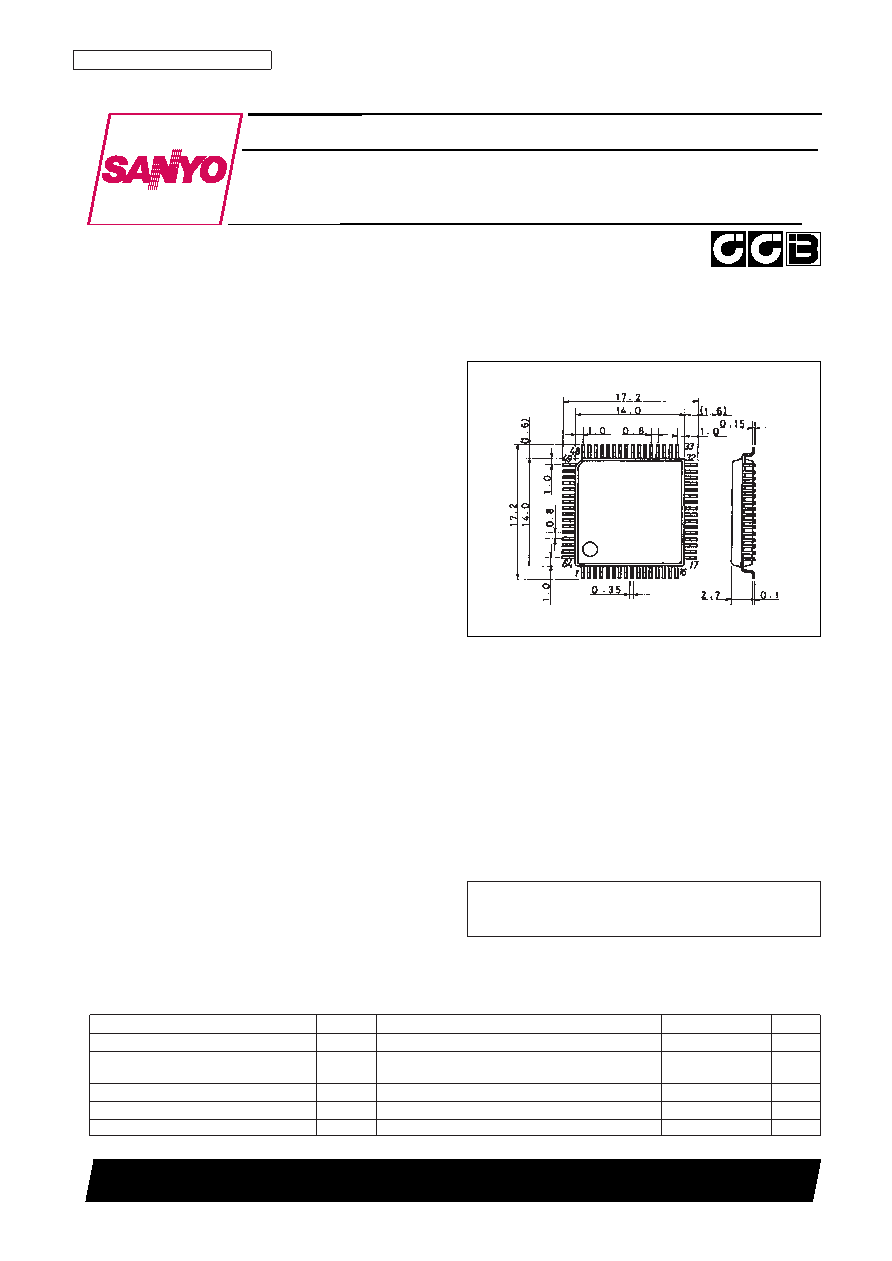

Package Dimensions
unit: mm
3159-QFP64E
Ordering number : EN5466
91096HA (OT)/81095HA (OT) No. 5466-1/17
SANYO: QFP64E
[LC75394NE]
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
Specifications
Absolute Maximum Ratings at Ta = 25°C, VSS = 0 V
Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDD max
VDD
12
V
Maximum input voltage
VIN max
CL, DI, CE, L1 to L4, R1 to R4, LTIN, RTIN, LVRIN,
VSS – 0.3 to
V
RVRIN
VDD + 0.3
Allowable power dissipation
Pd max
Ta
≤ 85°C
310
mW
Operating temperature
Topr
–30 to +85
°C
Storage temperature
Tstg
–40 to +125
°C
CCB is a trademark of SANYO ELECTRIC CO., LTD.
CCB is SANYO’s original bus format and all the bus
addresses are controlled by SANYO.
*
