LM1247
150 MHz I
2C Compatible RGB Preamplifier with Internal
512 Character OSD ROM, 512 Character RAM and 4
DACs
General Description
The LM1247 pre-amp is an integrated CMOS CRT preamp.
It has an I
2C compatible interface which allows control of all
the parameters necessary to directly setup and adjust the
gain and contrast in the CRT display. Brightness and bias
can be controlled through the DAC outputs which are well
matched to the LM2479 and LM2480 integrated bias clamp
ICs. The LM1247 preamp is also designed to be compatible
with the LM246x high gain driver family.
Black level clamping of the video signal is carried out directly
on the AC coupled input signal into the high impedance
preamplifier input, thus eliminating the need for additional
clamp capacitors. Horizontal and vertical blanking of the
outputs is provided. Vertical blanking is optional and its
duration is register programmable.
The IC is packaged in an industry standard 24 lead DIP
molded plastic package.
Features
n
Internal 512 character OSD ROM usable as either (a)
384 2-color plus 128 4-color characters, (b) 640 2-color
characters, or (c) some combination in between
n
Internal 512 character RAM, which can be displayed as
one single or two independent windows
n
I
2C compatible microcontroller interface
n
OSD override allows OSD messages to override video
and the use of burn-in screens with no video input
n
4 DAC outputs (8-bit resolution) for bus controlled CRT
bias and brightness
n
Spot killer which blanks the video outputs when V
CC
falls below the specified threshold
n
Suitable for use with discrete or integrated clamp, with
software configurable brightness mixer
n
Horizontal blanking and OSD synchronization directly
from deflection signals. The blanking can be disabled, if
desired
n
Vertical blanking and OSD synchronization directly from
deflection signals. The blanking width is register
programmable and can be disabled, if desired
n
Power Saving Mode with 65% power reduction
n
Matched to LM246x driver and LM2479/80 bias IC’s
Applications
n
Low end 15" and 17" bus controlled monitors with OSD
n
1024x768 displays up to 85 Hz requiring OSD capability
n
Very low cost systems with LM246x driver

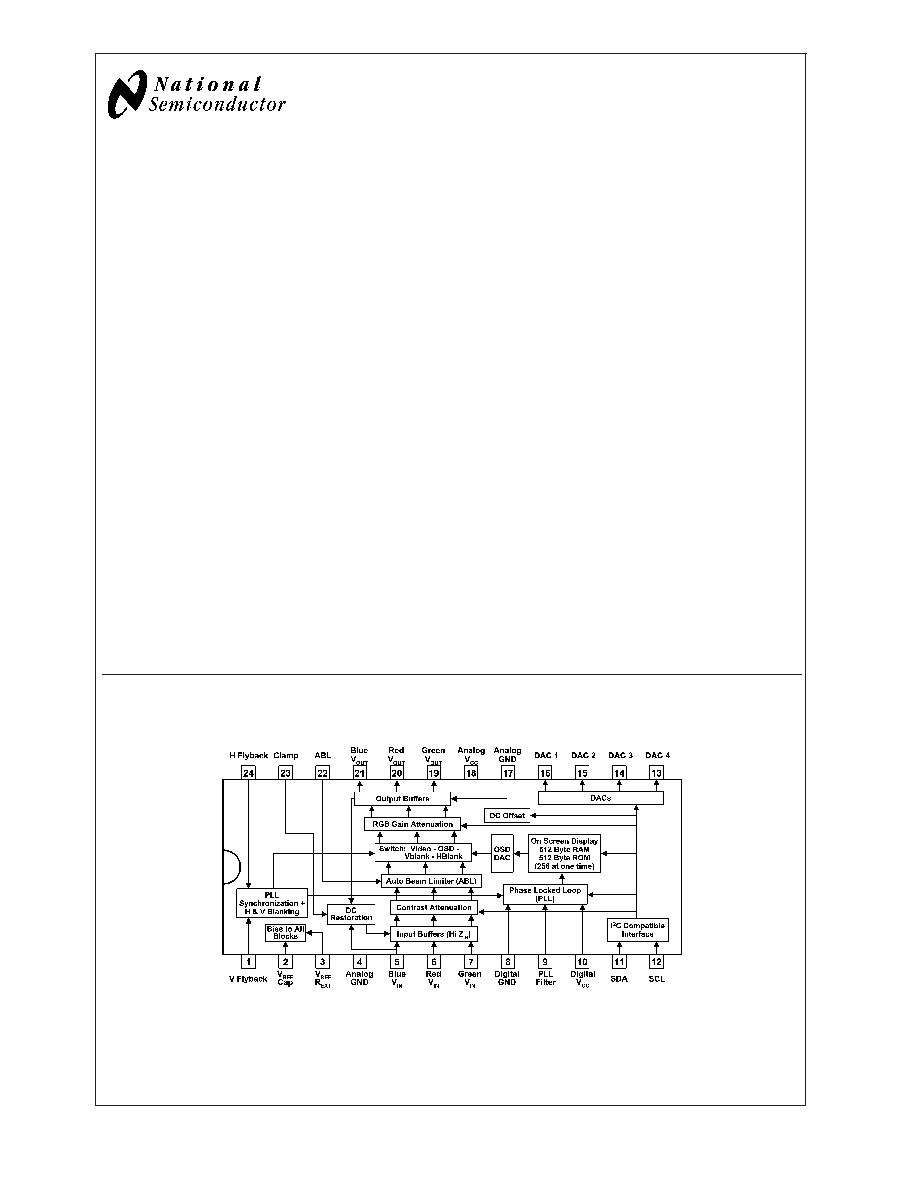

Internal Block Diagram
20048401
FIGURE 1. Order Number LM1247AAG/NA
See NS Package Number N24D
December 2002
LM1247
150
MHz
I
2
C
Compatible
RGB
Preamplifier
with
Internal
512
Character
OSD
ROM,
512
Character
RAM
and
4
DACs
2002 National Semiconductor Corporation
DS200484
www.national.com
