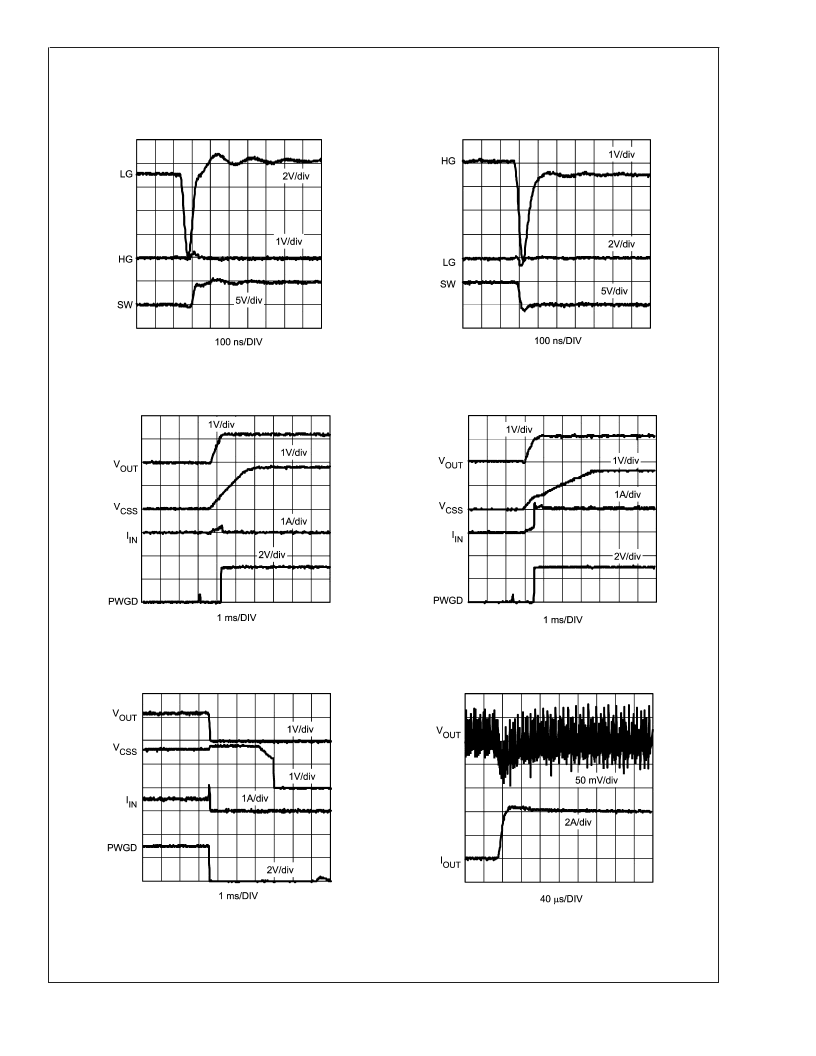

Typical Performance Characteristics
(Continued)
Switch Waveforms (HG Rising)
V
CC
= 3.3V, V
IN
= 5V, V
OUT
= 1.2V
I
OUT
= 4A, C
SS
= 12nF, F
SW
= 300kHz
Switch Waveforms (HG Falling)
V
CC
= 3.3V, V
IN
= 5V, V
OUT
= 1.2V
I
OUT
= 4A, C
SS
= 12nF, F
SW
= 300kHz
20095246
20095247
Start-Up (No-Load)
V
CC
= 3.3V, V
= 5V, V
OUT
= 1.2V
I
OUT
= 4A, C
SS
= 12nF, F
SW
= 300kHz
Start-Up (Full-Load)
V
CC
= 3.3V, V
= 5V, V
OUT
= 1.2V
I
OUT
= 4A, C
SS
= 12nF, F
SW
= 300kHz
20095248
20095249
Shutdown (Full-Load)
V
CC
= 3.3V, V
= 5V, V
OUT
= 1.2V
I
OUT
= 4A, C
SS
= 12nF, F
SW
= 300kHz
Load Transient Response (I
OUT
= 0A to 4A)
V
CC
= 3.3V, V
= 5V, V
= 1.2V
C
SS
= 12nF, F
SW
= 300kHz
20095250
20095251
L
www.national.com
7
