LMH6570
2:1 High Speed Video Multiplexer
General Description
The LMH
6570 is a high performance analog multiplexer
optimized for professional grade video and other high fidelity
high bandwidth analog applications. The output amplifier
selects one of two buffered input signals based on the state
of the SEL pin. The LMH6570 provides a 400 MHz band-
width at 2 V
PP
output signal levels. Multimedia and high
definition television (HDTV) applications can benefit from the
LMH6570’s 0.1 dB bandwidth of 150 MHz and its 2200 V/μs
slew rate.
The LMH6570 supports composite video applications with its
0.02% and 0.05 differential gain and phase errors for NTSC
and PAL video signals while driving a single, back terminated
75
load. An 80 mA linear output current is available for
driving multiple video load applications.
The LMH6570 gain is set by external feedback and gain set
resistors for maximum flexibility.
The LMH6570 is available in the 8 pin SOIC package.
Features
n
500 MHz, 500 mV
PP
, 3 dB bandwidth, A
V
=2
n
400 MHz, 2V
PP
, 3 dB bandwidth, A
V
=2
n
8 ns channel switching time
n
70 dB channel to channel isolation
@
10 MHz
n
0.02%, 0.05 diff. gain, diff. phase
n
0.1 dB gain flatness to 150 MHz
n
2200 V/μs slew rate
n
Wide supply voltage range: 6V (
±
3V) to 12V (
±
6V)
n
68 dB HD2
@
5 MHz
n
84 dB HD3
@
5 MHz
Applications
n
Video router
n
Multi input video monitor
n
Instrumentation / Test equipment
n
Receiver IF diversity switch
n
Multi channel A/D driver
n
Picture in Picture video switch

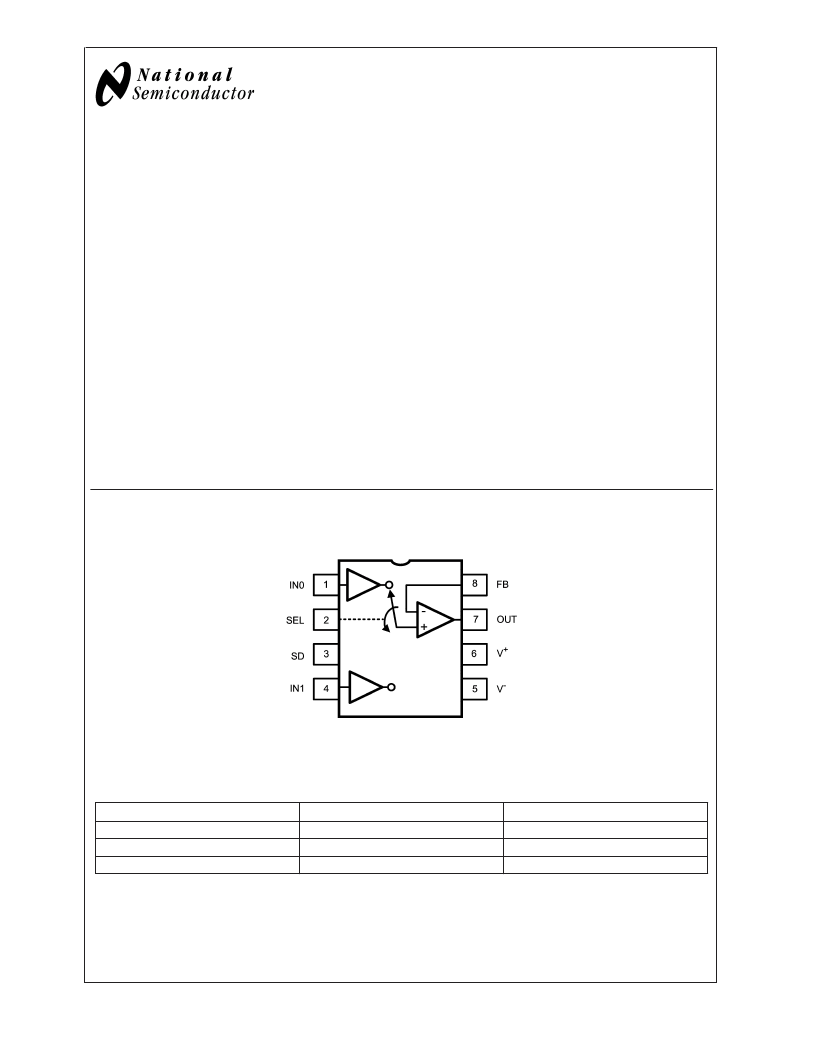

Connection Diagram
8-Pin SOIC
20129905
Top View
Truth Table
SEL
1
0
X
SD
0
0
1
OUTPUT
IN1 * (1+RF/RG)
IN0 * (1+RF/RG)
Shutdown
LMH
is a trademark of National Semiconductor Corporation.
May 2005
L
2005 National Semiconductor Corporation
DS201299
www.national.com
