Application Notes
GENERAL INFORMATION
The LMH6570 is a high-speed 2:1 analog multiplexer, opti-
mized for very high speed and low distortion. With selectable
gain and excellent AC performance, the LMH6570 is ideally
suited for switching high resolution, presentation grade video
signals. The LMH6570 has no internal ground reference.
Single or split supply configurations are both possible, how-
ever, all logic functions are referenced to the mid supply
point. The LMH6570 features very high speed channel
switching and disable times. When disabled the LMH6570
output is high impedance making MUX expansion possible
by combining multiple devices. See “Multiplexer Expansion”
section below. The LMH6570 SEL defaults to logic low (IN0
active). The default state for the SD pin is also logic low
(device enabled). Both pins can be left floating if the default
state is desired.
VIDEO PERFORMANCE
The LMH6570 has been designed to provide excellent per-
formance with production quality video signals in a wide
variety of formats such as HDTV and High Resolution VGA.
Best performance will be obtained with back-terminated
loads. The back termination reduces reflections from the
transmission line and effectively masks transmission line
and other parasitic capacitances from the amplifier output
stage.

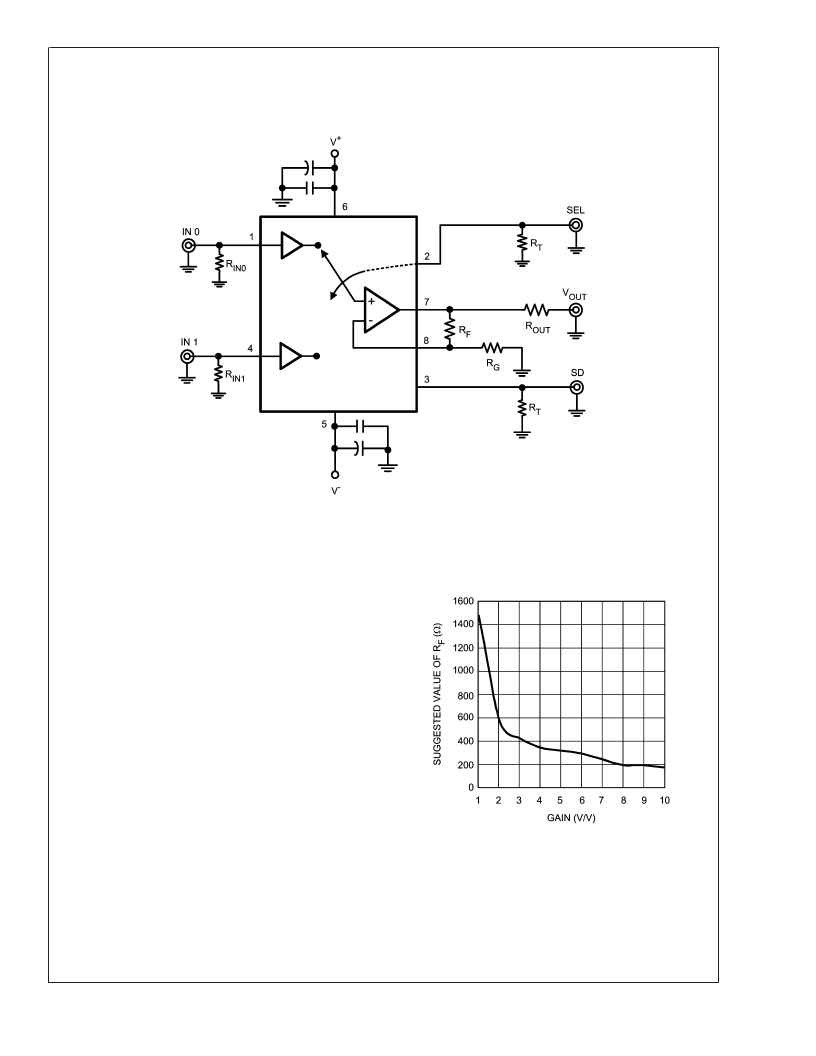

Figure 1
shows a typical configuration for driving a
75
cable. The output buffer is configured for a gain of 2, so
using back terminated loads will give a net gain of 1.
FEEDBACK RESISTOR SELECTION
The LMH6570 has a current feedback output buffer with gain
determined by external feedback (R
) and gain set (R
)
resistors. With current feedback amplifiers, the closed loop
frequency response is a function of R
F
. For a gain of 2 V/V,
the recommended value of R
is 576
. For other gains see
the chart “Suggested R
vs Gain”. Generally, lowering R
F
from the recommended value will peak the frequency re-
20129922
FIGURE 1. Typical Application
20129932
FIGURE 2. Suggested R
F
vs. Gain
L
www.national.com
9
