參數資料
| 型號： | MAX6622UE9A+T |
| 廠商： | Maxim Integrated |
| 文件頁數： | 9/18頁 |
| 文件大小： | 196K |
| 描述： | IC PREC TEMP MONITOR 5CH 16TSSOP |
| 產品培訓模塊： | Lead (SnPb) Finish for COTS Obsolescence Mitigation Program |
| 標準包裝： | 2,500 |
| 功能： | 溫度監控系統（傳感器） |
| 傳感器類型： | 內部和外部 |
| 感應溫度： | -40°C ~ 125°C，外部傳感器 |
| 精確度： | -0.1°C 本地，±3°C 遠程 |
| 拓撲： | ADC，緩沖器，寄存器庫 |
| 輸出類型： | SMBus? |
| 輸出警報： | 是 |
| 輸出風扇： | 是 |
| 電源電壓： | 3 V ~ 5.5 V |
| 工作溫度： | -40°C ~ 125°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 16-TSSOP（0.173"，4.40mm 寬） |
| 供應商設備封裝： | 16-TSSOP |
| 包裝： | 帶卷 (TR) |
Alarm Threshold Registers
There are seven alarm threshold registers that store
overtemperature ALERT and OVERT threshold values.
Five of these registers are dedicated to store one local
alert temperature threshold limit and four remote alert
temperature threshold limits (see the ALERT Interrupt
Mode section). The remaining two registers are dedi-
cated to remote channels 1 and 4 to store overtempera-
ture threshold limits (see the OVERT Overtemperature
Alarms section). Access to these registers is provided
through the SMBus interface.
ALERT Interrupt Mode
An ALERT interrupt occurs when the internal or external
temperature reading exceeds a high-temperature limit
(user programmable). The ALERT interrupt output signal
can be cleared by reading the status register(s) associ-
ated with the fault(s) or by successfully responding to an
alert response address transmission by the master. In
both cases, the alert is cleared but is reasserted at the
end of the next conversion if the fault condition still
exists. The interrupt does not halt automatic conversions.
The ALERT output is open drain so that multiple devices
can share a common interrupt line. All ALERT interrupts
can be masked using the configuration 3 register. The
POR state of these registers is shown in Table 1.
5-Channel Precision Temperature Monitor
_______________________________________________________________________________________ 9
SMBCLK
A = START CONDITION
B = MSB OF ADDRESS CLOCKED INTO SLAVE
C = LSB OF ADDRESS CLOCKED INTO SLAVE
D = R/W BIT CLOCKED INTO SLAVE
A
B
C
D
E F
G
H
I
J
SMBDATA
t
SU:STA
t
HD:STA
t
LOW
tHIGH
t
SU:DAT
t
SU:STO
t
BUF
L
M
K
E = SLAVE PULLS SMBDATA LINE LOW
F = ACKNOWLEDGE BIT CLOCKED INTO MASTER
G = MSB OF DATA CLOCKED INTO SLAVE
H = LSB OF DATA CLOCKED INTO SLAVE
I = MASTER PULLS DATA LINE LOW
J = ACKNOWLEDGE CLOCKED INTO SLAVE
K = ACKNOWLEDGE CLOCK PULSE
L = STOP CONDITION
M = NEW START CONDITION

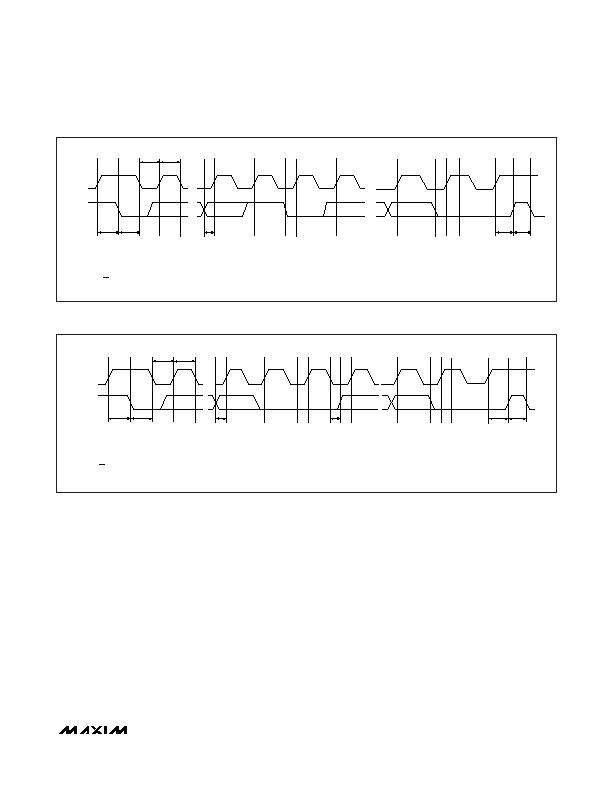

Figure 3. SMBus Write Timing Diagram
SMBCLK
A
B
C
D
E F
G
H
I J K
SMBDATA
t
SU:STA
t
HD:STA
t
LOW
t
HIGH
t
SU:DAT
t
HD:DAT
t
SU:STO
t
BUF
A = START CONDITION
B = MSB OF ADDRESS CLOCKED INTO SLAVE
C = LSB OF ADDRESS CLOCKED INTO SLAVE
D = R/W BIT CLOCKED INTO SLAVE
E = SLAVE PULLS SMBDATA LINE LOW
L
M
F = ACKNOWLEDGE BIT CLOCKED INTO MASTER
G = MSB OF DATA CLOCKED INTO MASTER
H = LSB OF DATA CLOCKED INTO MASTER
I = MASTER PULLS DATA LINE LOW
J = ACKNOWLEDGE CLOCKED INTO SLAVE
K = ACKNOWLEDGE CLOCK PULSE
L = STOP CONDITION
M = NEW START CONDITION
Figure 4. SMBus Read Timing Diagram
