參數資料
| 型號： | MAX9737EVKIT+ |
| 廠商： | Maxim Integrated Products |
| 文件頁數： | 1/13頁 |
| 文件大小： | 0K |
| 描述： | KIT EVAL FOR MAX9737 |
| 產品培訓模塊： | Lead (SnPb) Finish for COTS Obsolescence Mitigation Program |
| 標準包裝： | 1 |
| 放大器類型： | D 類 |
| 輸出類型： | 1-通道（單聲道） |
| 在某負載時最大輸出功率 x 通道數量： | 13W x 1 @ 4 歐姆 |
| 電源電壓： | 8 V ~ 28 V |
| 工作溫度： | -40°C ~ 85°C |
| 板類型： | 完全填充 |
| 已用 IC / 零件： | MAX9737 |
| 已供物品： | 板 |

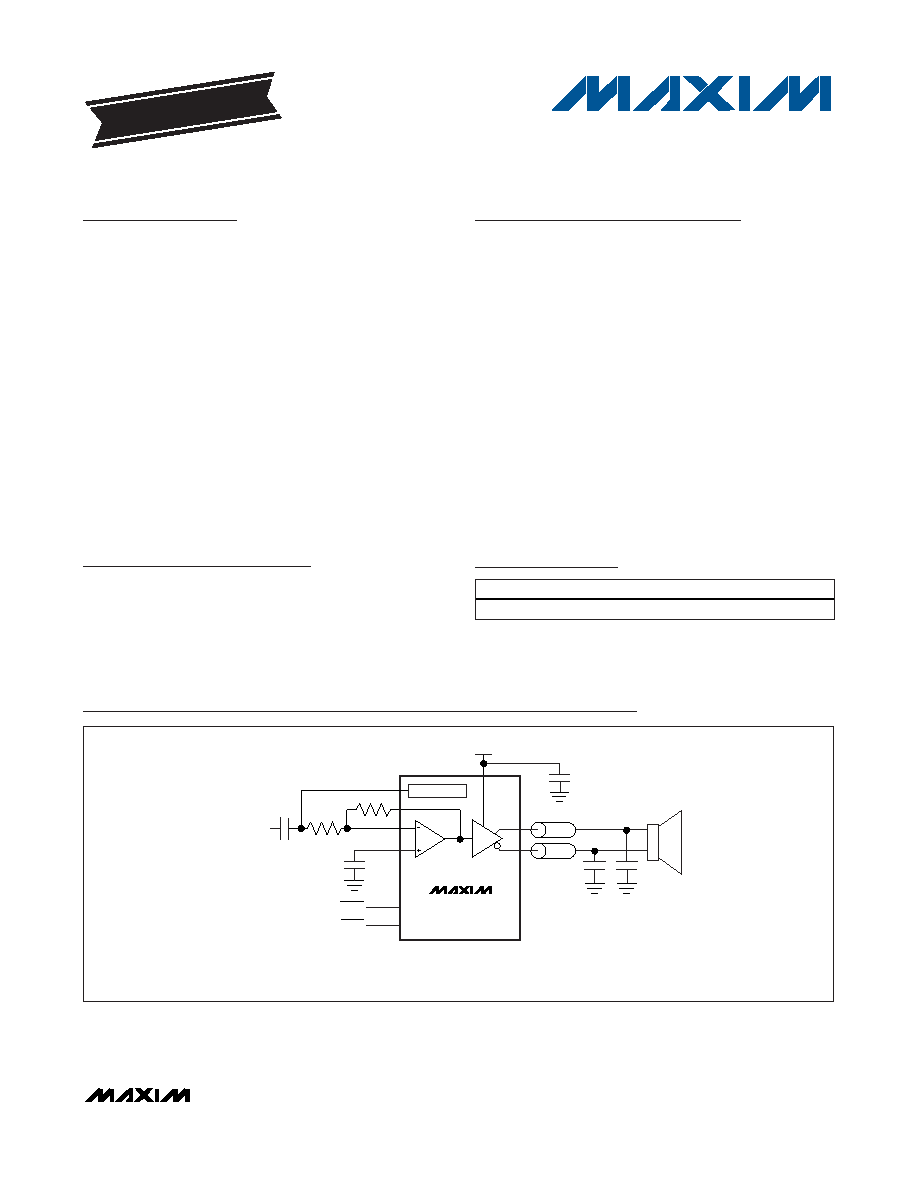

General Description
The MAX9737 mono 7W Class D amplifier provides a
high-performance, thermally efficient amplifier solution
that offers up to 88% efficiency at a 12V supply. The
device operates from 8V to 28V and provides a high 80dB
PSRR, eliminating the need for a regulated power supply.
Filterless modulation allows the MAX9737 to pass CE
EMI limits with 1m cables using only a low-cost ferrite
bead and small-value capacitor on each output.
Comprehensive click-and-pop suppression circuitry
reduces noise on power-up/down or into and out of
shutdown or mute.
An input op amp allows the user to create a lowpass or
highpass filter, and select an optimal gain. The internal
precharge circuit ensures clickless/popless turn-on
within 10ms.
The MAX9737 is available in the 24-pin, TQFN-EP pack-
age and is specified over the -40°C to +85°C tempera-
ture range.
Applications
2.1 Notebook PCs
LCD/PDP/CRT Monitors
PC Surround Speakers
MP3 Docking Stations
Features
8V to 28V Supply Voltage Range
Spread-Spectrum Modulation Enables Low-EMI
Solution
Passes EMI Limit with Up to 1m of Speaker Cable
High 80dB PSRR
Up to 88% Efficiency Eliminates Heatsink
Thermal and Output Current Protection
< 1A Shutdown Mode
Click-and-Pop Suppression
< 10ms Turn-On Time
Space-Saving, 4mm x 4mm x 0.8mm, 24-Pin TQFN
Package
MAX9737
Mono 7W Class D Amplifier
________________________________________________________________
Maxim Integrated Products
1
19-4327; Rev 0; 10/08
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
EVALUATION
KIT
AVAILABLE
Ordering Information
PART
TEMP RANGE
PIN-PACKAGE
MAX9737ETG+
-40°C to +85°C
24 TQFN-EP*
+
Denotes a lead-free/RoHS-compliant package.
*
EP = Exposed pad.
MAX9737
AUDIO
INPUT
SHDN
MUTE
8
Ω
8V TO 28V
INPUT RESISTORS AND
CAPACITORS SELECT GAIN
AND CUTOFF FREQUENCY
PRECHARGE
Simplified Diagram
Pin Configuration and Typical Application Circuit appear at
end of data sheet.
