參數資料
| 型號： | MRF1507T1 |
| 元件分類： | 功率晶體管 |
| 英文描述： | UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET |
| 封裝： | POWER, PLASTIC, CASE 466-02, 4 PIN |
| 文件頁數： | 10/12頁 |
| 文件大小： | 173K |
| 代理商： | MRF1507T1 |
LIFETIME
BUY
LAST
ORDER
30JUN02
LAST
SHIP
30DEC0
2
7

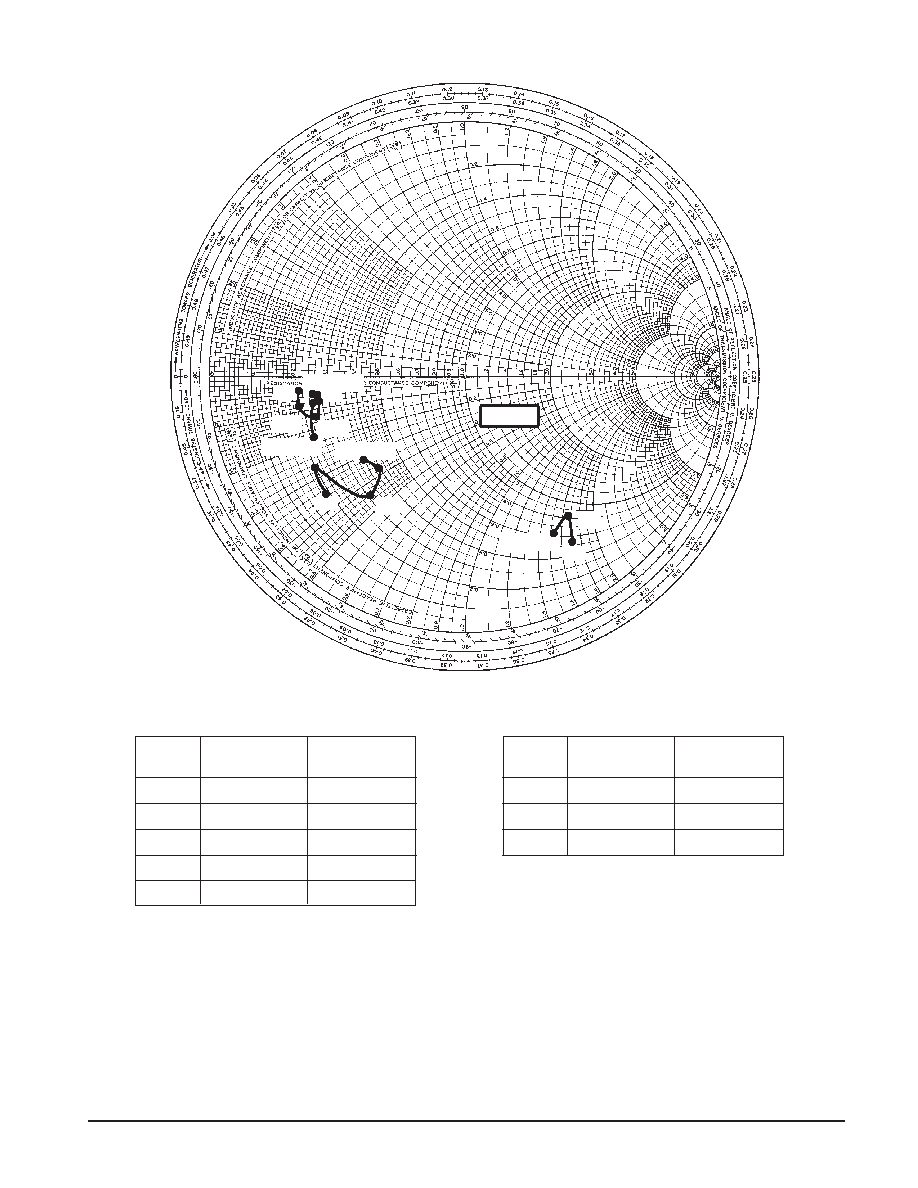

MRF1507
MOTOROLA RF DEVICE DATA
ZOL*
f
MHz
Zin
ZOL*
400
440
470
500
3.6 – j3.1
3.1 – j4.4
4.0 – j3.7
2.0 – j2.71
2.5 – j0.5
2.7 – j0.6
2.5 – j1.2
2.05 – j0.65
Zin
= Conjugate of source impedance with parallel
20
resistor and 82 pF capacitor in series
with gate.
ZOL* = Conjugate of the load impedance at given
output power, voltage, frequency, and
ηD > 50 %.
VDD = 7.5 V, IDQ = 150 mA, Pout = 8 W
520
1.9 – j3.5
2.1 – j0.4
Zo = 10
f
MHz
Zin
ZOL*
135
155
175
6.2 – j15.1
5.33 – j17.0
8.29 – j16.9
2.3 – j1.8
2.5 – j0.8
2.6 – j0.6
Zin
= Conjugate of source impedance with parallel
10
resistor and 1000 pF capacitor in series
with gate.
ZOL* = Conjugate of the load impedance at given
output power, voltage, frequency, and
ηD > 50 %.
VDD = 7.5 V, IDQ = 800 mA, Pout = 8 W
f = 400 MHz
Note: ZOL* was chosen based on tradeoffs between gain, drain efficiency, and device stability.
Zin
ZOL*
f = 400 MHz
520
175
Zin
f = 135 MHz
175
f = 135 MHz
