MRF1513T1
7
RF Device Data
Freescale Semiconductor

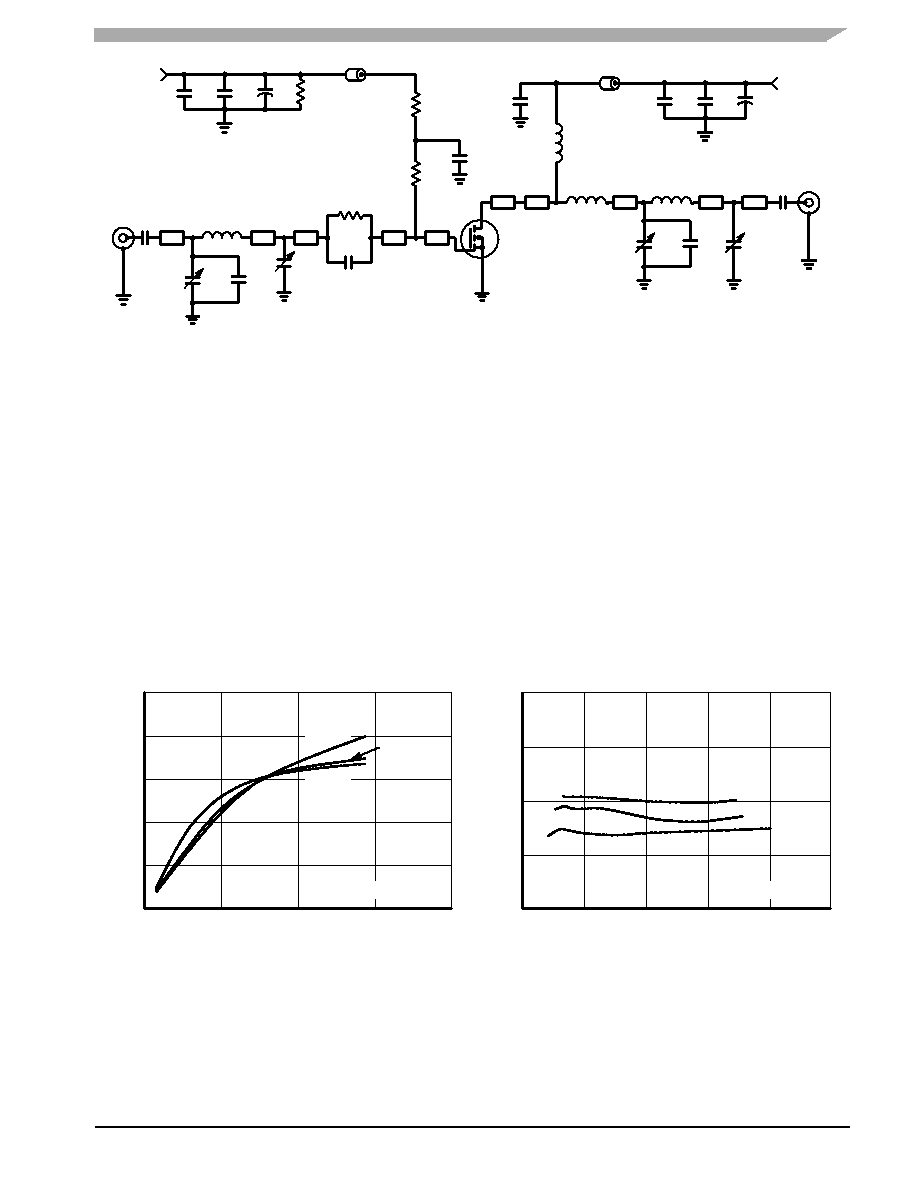

Figure 19. 135 - 175 MHz Broadband Test Circuit
VDD
C7
R4
C8
C6
R3
RF
INPUT
RF
OUTPUT
Z2
Z6
C1
C13
DUT
Z8
Z9
Z10
Z4
Z5
L4
N2
C17
B2
N1
+
C11
C4
B1, B2
Short Ferrite Beads, Fair Rite Products
#2743021446
C1, C13
330 pF, 100 mil Chip Capacitors
C2, C4, C10, C12
0 to 20 pF Trimmer Capacitors
C3
12 pF, 100 mil Chip Capacitor
C5
130 pF, 100 mil Chip Capacitor
C6, C17
120 pF, 100 mil Chip Capacitors
C7, C14
10 μF, 50 V Electrolytic Capacitors
C8, C15
1,000 pF, 100 mil Chip Capacitors
C9, C16
0.1 μF, 100 mil Chip Capacitors
C11
18 pF, 100 mil Chip Capacitor
L1
26 nH, 4 Turn, Coilcraft
L2
8 nH, 3 Turn, Coilcraft
L3
55.5 nH, 5 Turn, Coilcraft
L4
33 nH, 5 Turn, Coilcraft
N1, N2
Type N Flange Mounts
R1
15 W Chip Resistor (0805)
R2
56 W, 1/8 W Chip Resistor
R3
10 W, 1/8 W Chip Resistor
R4
33 kW, 1/8 W Chip Resistor
Z1
0.115″ x 0.080″ Microstrip
Z2
0.230″ x 0.080″ Microstrip
Z3
1.034″ x 0.080″ Microstrip
Z4
0.202″ x 0.080″ Microstrip
Z5, Z6
0.260″ x 0.223″ Microstrip
Z7
1.088″ x 0.080″ Microstrip
Z8
0.149″ x 0.080″ Microstrip
Z9
0.171″ x 0.080″ Microstrip
Z10
0.095″ x 0.080″ Microstrip
Board
Glass Teflon, 31 mils, 2 oz. Copper
Z1
VGG
C14
+
C9
B1
R2
C15
C16
L3
C12
L1
C10
R1
C5
Z3
C2
C3
Z7
L2
TYPICAL CHARACTERISTICS, 135 - 175 MHz
Pout, OUTPUT POWER (WATTS)
IRL,
INPUT
RETURN
LOSS
(dB) 5
15
20
10
2
0
1
Figure 20. Output Power versus Input Power
Pin, INPUT POWER (WATTS)
1
Figure 21. Input Return Loss
versus Output Power
0.10
P out
,OUTPUT
POWER
(W
ATTS)
0
3
0.15
2
135 MHz
175 MHz
0.20
0.05
0
5
155 MHz
3
135 MHz
175 MHz
155 MHz
4
45
VDD = 12.5 Vdc
