MRF19085R3 MRF19085LR3 MRF19085SR3 MRF19085LSR3
MOTOROLA RF DEVICE DATA

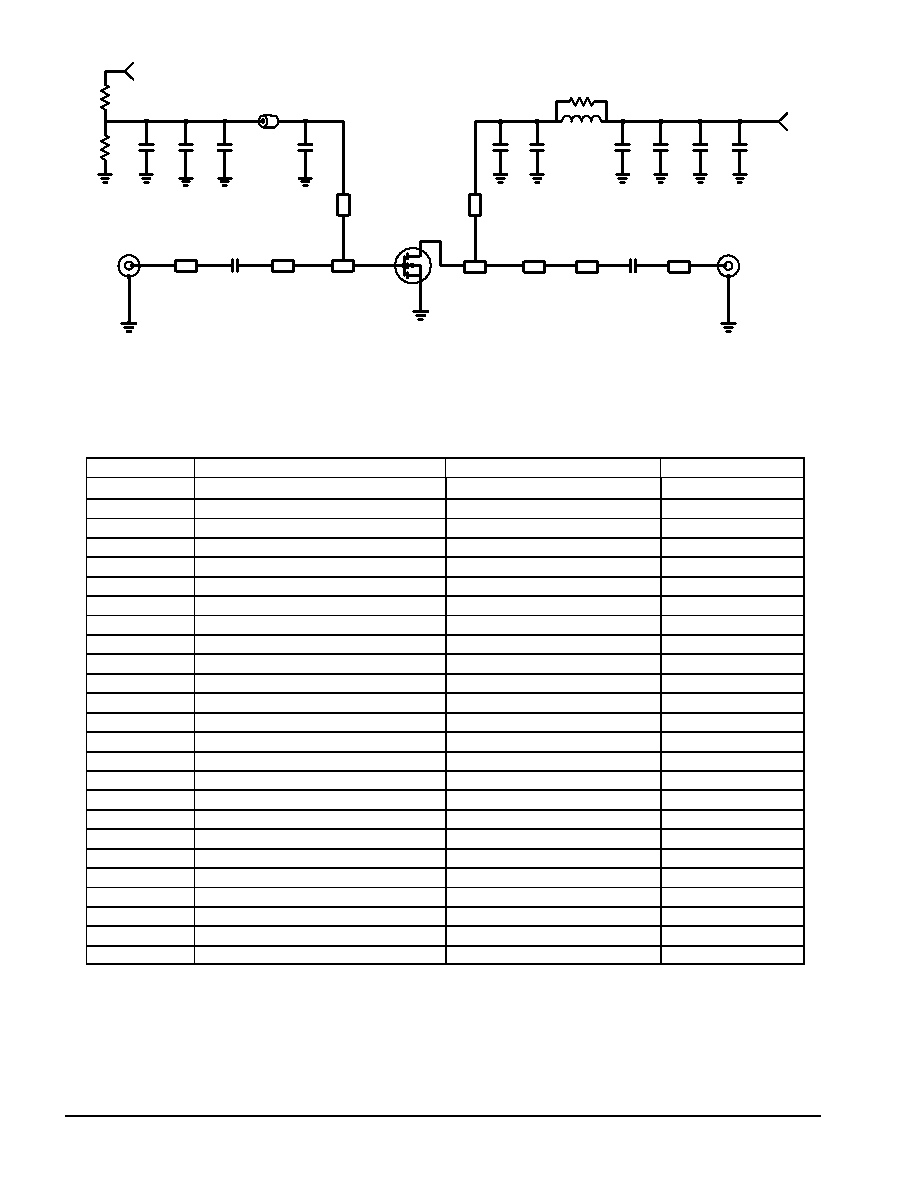

Figure 1. 1930 - 1990 MHz 2-Carrier N-CDMA Test Circuit Schematic
RF
INPUT
RF
OUTPUT
Z1
Z2
VGG
C1
C6
L1
DUT
VDD
Z3
C8
Z8
Z7
C5
C7
Z5
Z6
R3
C4
Z4
+
C9
C3
C2
Z9
C10
C11
C12
++
+
B1
R1
R2
Table 1. 1930 - 1990 MHz 2-Carrier N-CDMA Test Circuit Component Designations and Values
Part
Description
Value, P/N or DWG
Manufacturer
B1
Short Ferrite Bead
2743019447
Fair Rite
C1
51 pF Chip Capacitor
100B510JCA500X
ATC
C2, C7
5.1 pF Chip Capacitors
100B5R1JCA500X
ATC
C3, C9
1000 pF Chip Capacitors
100B102JCA500X
ATC
C4, C10
0.1 F Chip Capacitors
CDR33BX104AKWS
Kemet
C5
0.1 F Tantalum Surface Mount Capacitor
T491C105M050
Kemet
C6
10 pF Chip Capacitor
100B100JCA500X
ATC
C8
10 F Tantalum Surface Mount Capacitor
T495X106K035AS4394
Kemet
C11, C12
22 F Tantalum Surface Mount Capacitors
T491X226K035AS4394
Kemet
L1
1 Turn, 20 AWG, 0.100″ ID
Motorola
N1, N2
Type N Flange Mounts
3052-1648-10
Omni Spectra
R1
1.0 k, 1/8 W Chip Resistor
R2
220 k, 1/8 W Chip Resistor
R3
10 , 1/8 W Chip Resistor
Z1
Microstrip
0.750″ x 0.0840″
Z2
Microstrip
1.090″ x 0.0840″
Z3
Microstrip
0.400″ x 1.400″
Z4
Microstrip
0.520″ x 0.050″
Z5
Microstrip
0.540″ x 1.133″
Z6
Microstrip
0.400″ x 0.140″
Z7
Microstrip
0.555″ x 0.0840″
Z8
Microstrip
0.720″ x 0.0840″
Z9
Microstrip
0.560″ x 0.070″
Board
0.030″ Glass Teflon
GX-0300-55-22, εr = 2.55
Keene
PCB
Etched Circuit Boards
MRF19085 Rev. 4
