MRF282SR1 MRF282ZR1
7
RF Device Data
Freescale Semiconductor

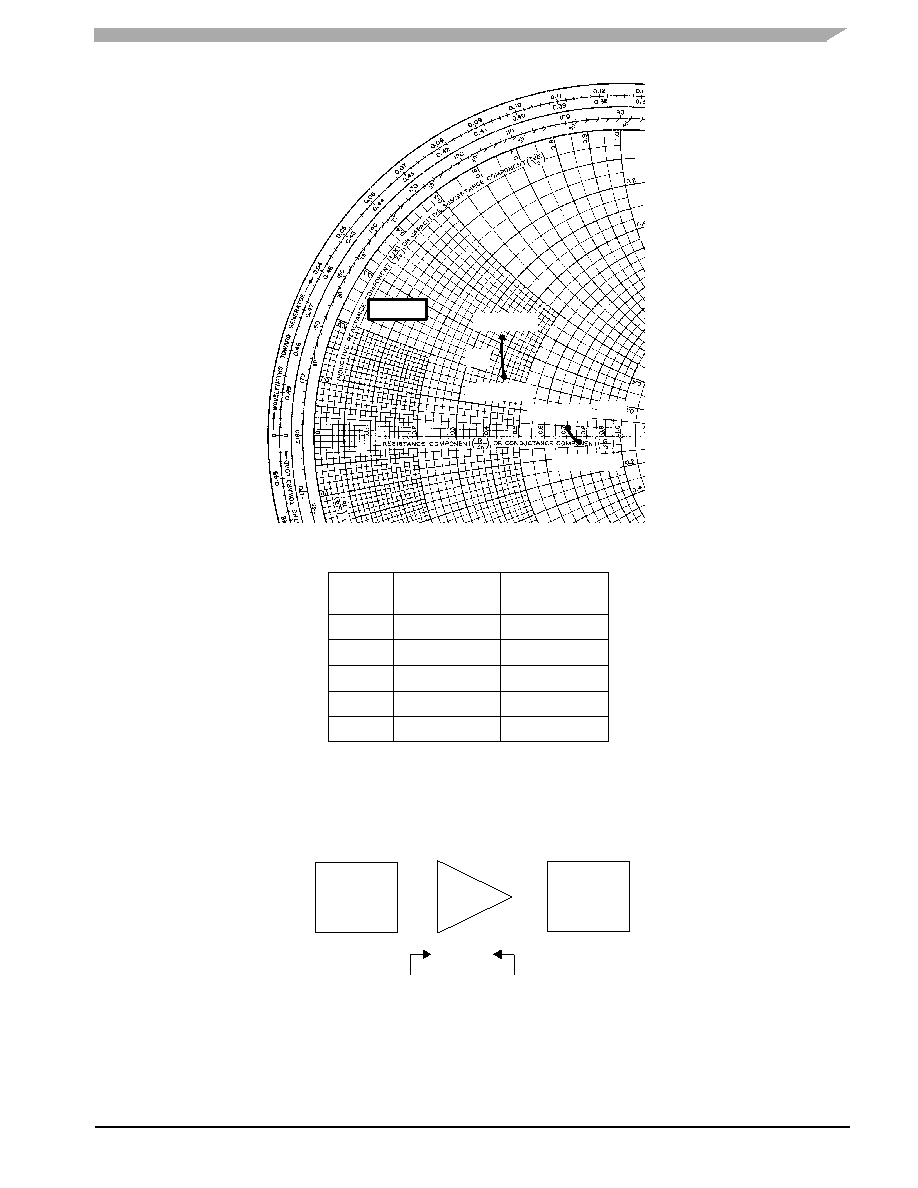

Figure 5. Series Equivalent Input and Output Impedence
f
MHz
Zin
Ω
ZOL*
Ω
1800
1860
1900
1960
2.1 + j1.0
2.0 + j1.2
2.05 + j1.15
1.9 + j1.4
3.8 - j0.15
3.77 - j0.13
3.75 - j0.1
3.65 + j0.1
Zin
= Complex conjugate of source impedance.
ZOL* = Complex conjugate of the optimum load
impedance at given output power, voltage, IMD,
bias current and frequency.
VDD = 26 V, IDQ = 75 mA, Pout = 10 W (PEP)
ZOL*
Zin
Zo = 5 Ω
f = 1800 MHz
2000
1.85 + j1.6
3.55 + j0.2
Z in
Z OL*
Input
Matching
Network
Device
Under Test
Output
Matching
Network
f = 1800 MHz
f = 2000 MHz
