MRF374A

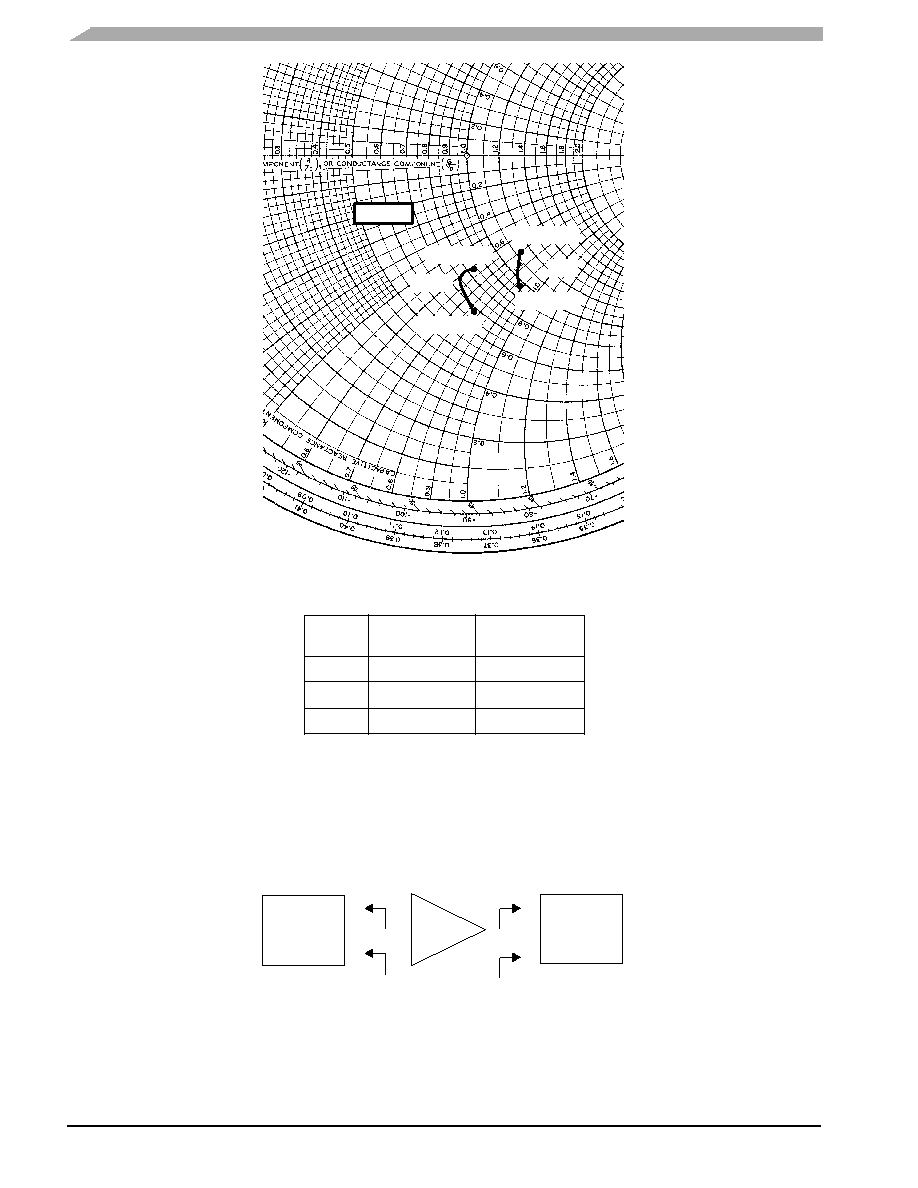

Figure 18. Series Equivalent Source and Load Impedance
f
MHz
Zsource
Ω
Zload
Ω
845
860
875
3.33 - j2.42
2.73 - j3.10
3.03 - j2.39
4.56 - j2.86
4.22 - j3.16
3.87 - j3.52
VDD = 32 V, IDQ = 400 mA, Pout = 130 W PEP
Zo = 4 Ω
Zsource
Zload
f = 845 MHz
f = 875 MHz
f = 845 MHz
f = 875 MHz
Zsource = Test circuit impedance as measured from
gate to gate, balanced configuration.
Zload
= Test circuit impedance as measured
from drain to drain, balanced configuration.
Z source
Z load
Input
Matching
Network
Device
Under
Test
Output
Matching
Network
+
