Philips Semiconductors
Product data sheet
PCA9515
I
2
C-bus repeater
2004 Jun 24
4
APPLICATION INFORMATION

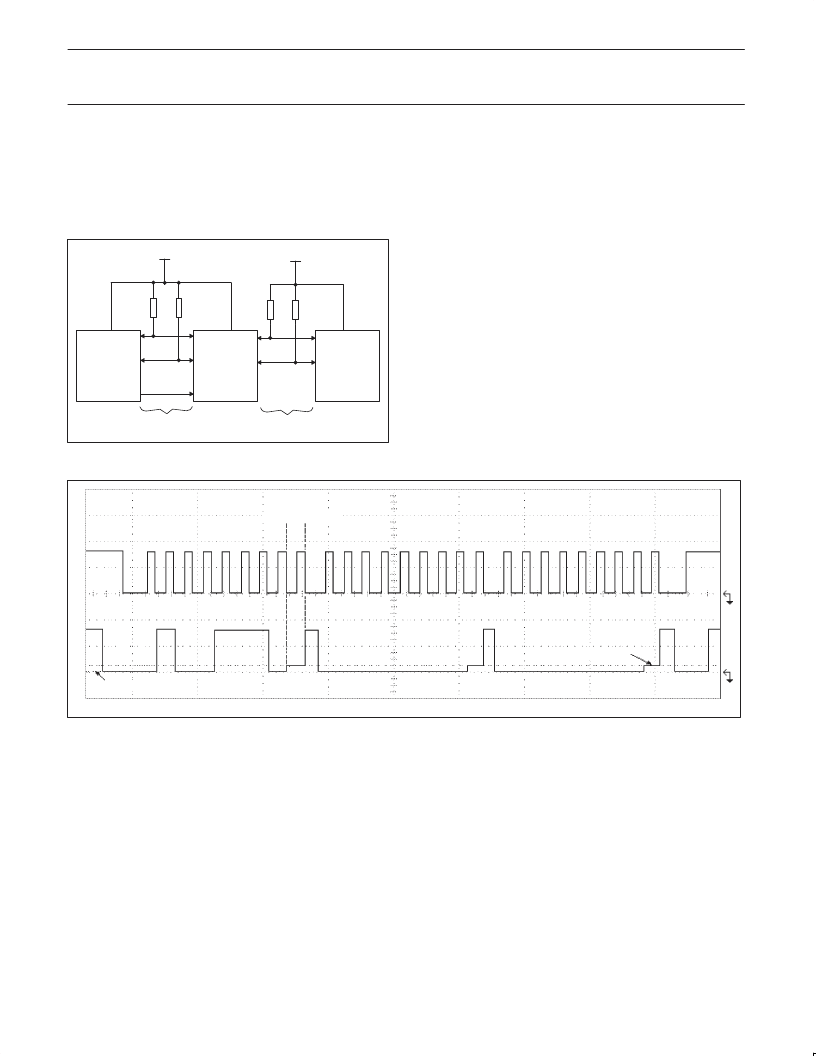

A typical application is shown in Figure 3. In this example, the
system master is running on a 3.3 V I
2
C-bus while the slave is
connected to a 5 V bus. Both buses run at 100 kHz unless the slave
bus is isolated and then the master bus can run at 400 kHz. Master
devices can be placed on either bus.
SW00867
BUS0
BUS
MASTER
400 kHz
SLAVE
100 kHz
PCA9515
SDA
SDA0
SDA
SCL
SCL0
SCL
EN
BUS1
3.3 V
5 V
SDA1
SCL1
Figure 3. Typical application
The PCA9515 is 5 V tolerant so it does not require any additional
circuitry to translate between the different bus voltages.
When one side of the PCA9515 is pulled LOW by a device on the
I
2
C-bus, a CMOS hysteresis type input detects the falling edge and
causes an internal driver on the other side to turn on, thus causing
the other side to also go LOW. The side driven LOW by the
PCA9515 will typically be at V
OL
= 0.5 V.
In order to illustrate what would be seen in a typical application, refer
to Figures 4 and 5. If the bus master in Figure 3 were to write to the
slave through the PCA9515, we would see the waveform shown in
Figure 4 on Bus 0. This looks like a normal I
2
C transmission until the
falling edge of the 8
th
clock pulse. At that point, the master releases
the data line (SDA) while the slave pulls it LOW through the
PCA9515. Because the V
OL
of the PCA9515 is typically around
0.5 V, a step in the SDA will be seen. After the master has
transmitted the 9
th
clock pulse, the slave releases the data line.
9th CLOCK PULSE
V
OL
OF MASTER
V
OL
OF PCA9515
2 V/DIV
SW00866
Figure 4. Bus 0 waveform
