1.24 Vref
Reference (R)
Cathode (K)
Anode (A)

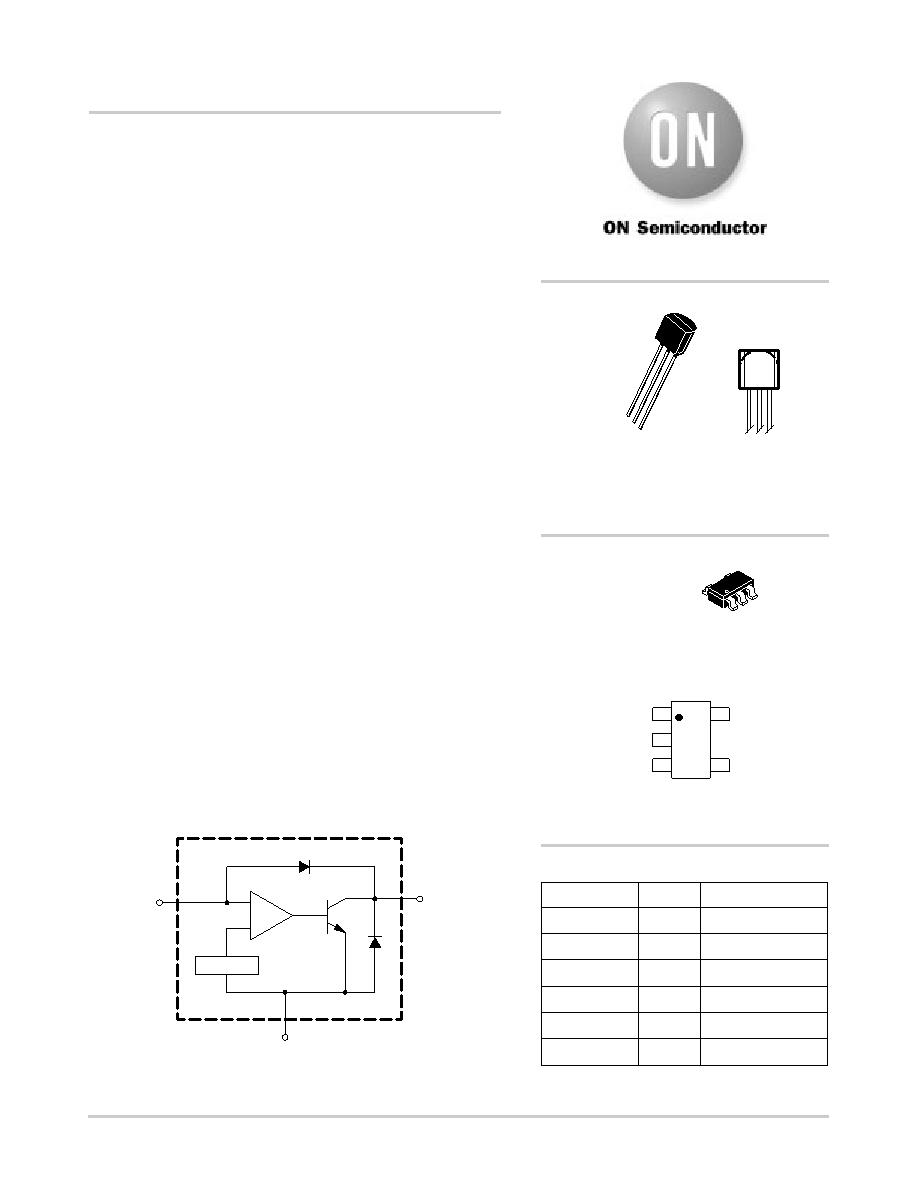

Representative Block Diagram
Semiconductor Components Industries, LLC, 2000
July, 2000 – Rev. 1
1
Publication Order Number:
TLV431A/D
TLV431A
Low Voltage Precision
Adjustable Shunt Regulator
The TLV431A series are precision low voltage shunt regulators that
are programmable over a wide voltage range of 1.24 V to 16 V. These
series feature a guaranteed reference accuracy of
±1.0% at 25°C and
±2.0% over the entire industrial temperature range of –40°C to 85°C.
These devices exhibit a sharp low current turn–on characteristic with a
low dynamic impedance of 0.20
over an operating current range of
100
mA to 20 mA. This combination of features makes this series an
excellent replacement for zener diodes in numerous applications
circuits that require a precise reference voltage. When combined with
an optocoupler, the TLV431A can be used as an error amplifier for
controlling the feedback loop in isolated low output voltage (3.0 V to
3.3 V) switching power supplies. These devices are available in
economical TSOP–5 and TO–92 packages.
Features
Programmable Output Voltage Range of 1.24 V to 16 V
Voltage Reference Tolerance "1.0%
Sharp Low Current Turn–On Characteristic
Low Dynamic Output Impedance of 0.20 from 100 mA to 20 mA
Wide Operating Current Range of 50 mA to 20 mA
Micro Miniature TSOP–5 and TO–92 Packages
Applications
Low Output Voltage (3.0 V to 3.3 V) Switching Power Supply Error
Amplifier
Adjustable Voltage or Current Linear and Switching Power Supplies
Voltage Monitoring
Current Source and Sink Circuits
Analog and Digital Circuits Requiring Precision References
Low Voltage Zener Diode Replacements
Device
Package
Shipping
ORDERING INFORMATION
TLV431ALP
TO–92
TLV431ALPRA
TO–92
TO–92
LP SUFFIX
CASE 29
1
2
3
http://onsemi.com
TSOP–5
SN SUFFIX
CASE 483
1. Reference
2. Anode
3. Cathode
1
2
3
5
4
Anode
Reference
NC
Cathode
5
4
1
2
3
PIN CONNECTIONS
Top View
RAA
YW
6000 / Box
2000 / Tape & Reel
TLV431ALPRB
TO–92
2000 / Tape & Reel
TLV431ALPRE
TO–92
TLV431ALPRF
TO–92
2000 / Tape & Reel
TLV431ASNT1
TSOP–5
3000 / Tape & Reel
TLV43
1ALP
YWW
Y = Year
W = Work Week
