_
+
IN-
IN+
PWM
H-
Bridge
VO+
VO-
Internal
Oscillator
CS
To Battery
VDD
GND
Bias
Circuitry
RI2
+
-
Differential
Input 1
SHUTDOWN
RI1
+
-
Differential
Input 2
Filter-Free Class D
Summing a Differential Input Signal and a Single-Ended Input Signal
Gain 1 +
V
O
V
I1
+
2 x 150 kW
R
I1
V
(6)
Gain 2 +
V
O
V
I2
+
2 x 150 kW
R
I2
V
(7)
(
)
1
I2
c2
C
=
2
R f
p
(8)
www.ti.com........................................................................................................................................................................................................ SLOS546 – MAY 2008
If summing a ring tone and a phone signal, set the ring-tone gain to Gain 2 = 2 V/V, and the phone gain to gain 1
= 0.1 V/V. The resistor values would be. . .
RI1 = 3 M, and = RI2 = 150 k.

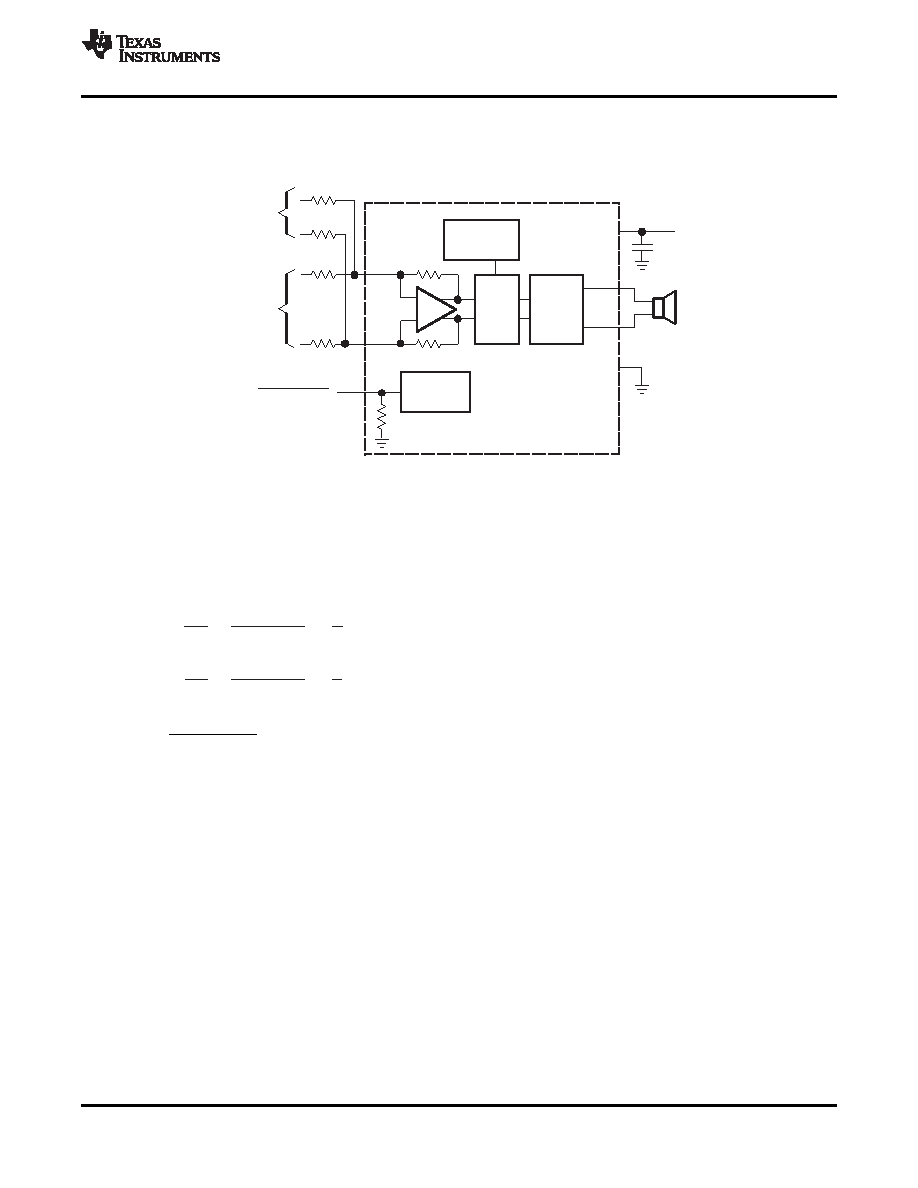

Figure 31. Application Schematic With TPA2031D1 Summing Two Differential Inputs
Figure 32 shows how to sum a differential input signal and a single-ended input signal. Ground noise can couple
in through IN+ with this method. It is better to use differential inputs. The corner frequency of the single-ended
input is set by CI2, shown in Equation 8. To assure that each input is balanced, the single-ended input must be
driven by a low-impedance source even if the input is not in use
If summing a ring tone and a phone signal, the phone signal should use a differential input signal while the ring
tone might be limited to a single-ended signal. Phone gain is set at gain 1 = 0.1 V/V, and the ring-tone gain is set
to gain 2 = 2 V/V, the resistor values would be…
RI1 = 3 M, and = RI2 = 150 k.
The high pass corner frequency of the single-ended input is set by CI2. If the desired corner frequency is less
than 20 Hz...
Copyright 2008, Texas Instruments Incorporated
13
Product Folder Link(s): TPA2031D1
