TPA3000D1
SLOS379A – SEPTEMBER 2001 – REVISED JANUARY 2002
7
www.ti.com

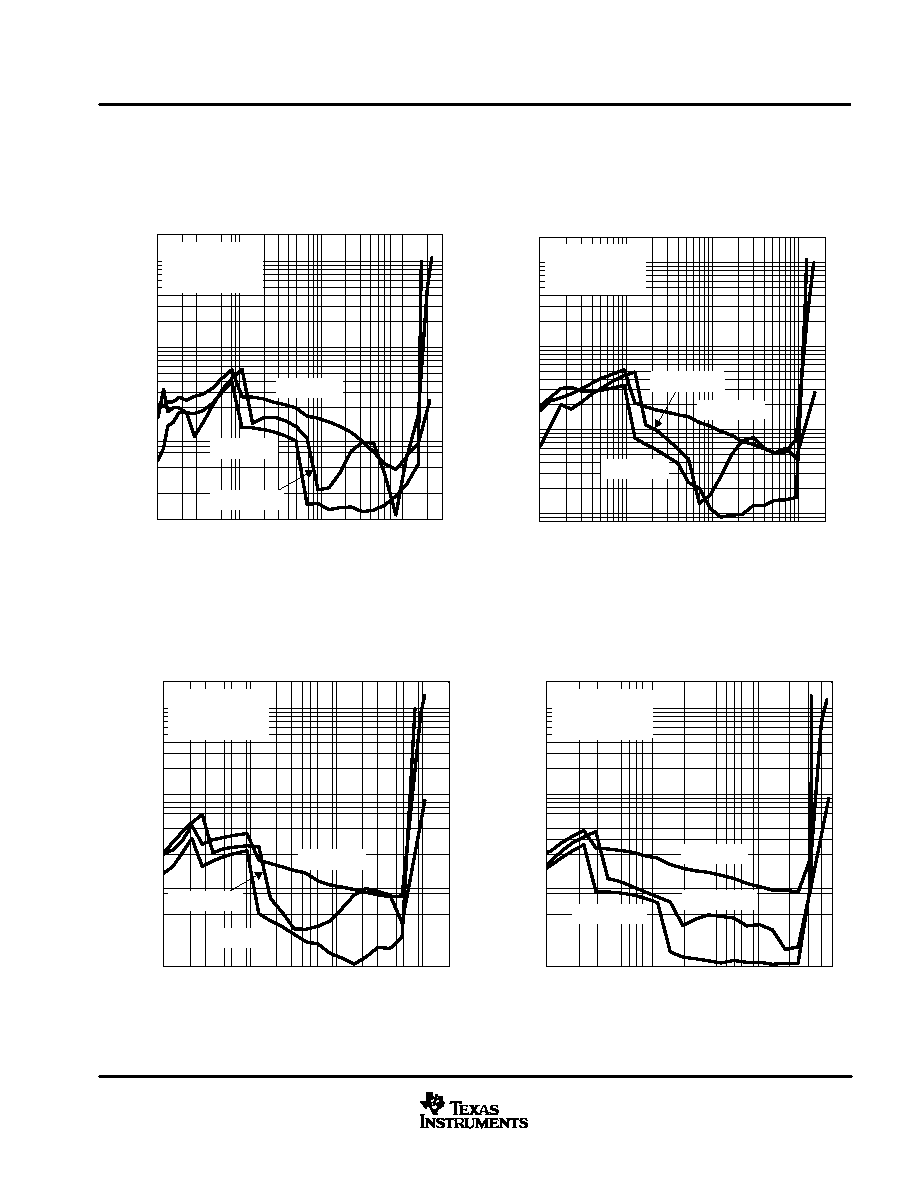

TYPICAL CHARACTERISTICS
Figure 7
PO – Output Power – W
0.01
0.1
1
10
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
VCC = 18 V
RL = 8
Gain = 12 dB
f = 1 kHz
f = 20 Hz
f = 20 kHz
Figure 8
PO – Output Power – W
0.01
0.1
1
10
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
VCC = 15 V
RL = 8
Gain = 12 dB
f = 1 kHz
f = 20 Hz
f = 20 kHz
Figure 9
PO – Output Power – W
0.01
0.1
1
10
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
VCC = 12 V
RL = 8
Gain = 12 dB
f = 1 kHz
f = 20 Hz
f = 20 kHz
Figure 10
PO – Output Power – W
0.01
0.1
1
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
OUTPUT POWER
0.01
0.1
1
10
VCC = 8 V
RL = 8
Gain = 12 dB
f = 20 kHz
f = 20 Hz
f = 1 kHz
