TPA3000D1
SLOS379A – SEPTEMBER 2001 – REVISED JANUARY 2002
8
www.ti.com

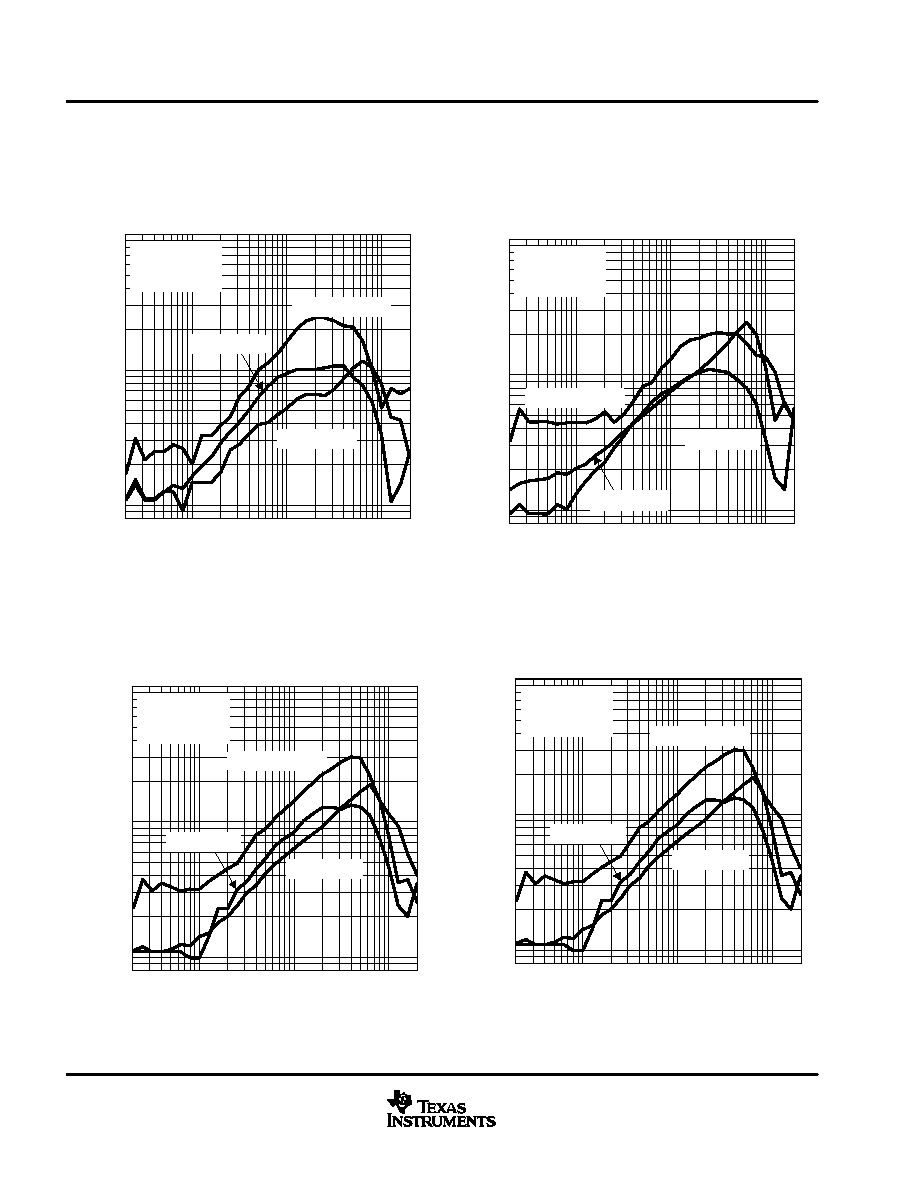

TYPICAL CHARACTERISTICS
Figure 11
f – Frequency – Hz
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
FREQUENCY
0.01
0.1
1
VCC = 18 V
RL = 8
Gain = 12 dB
20
100
1k
10k
PO = 500 mW
PO = 2 W
PO = 10 W
Figure 12
f – Frequency – Hz
20
100
1k
10k
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
FREQUENCY
0.01
0.1
1
VCC = 15 V
RL = 8
Gain = 12 dB
PO = 2 W
PO = 500 mW
PO = 10 W
Figure 13
f – Frequency – Hz
20
100
1k
10k
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
FREQUENCY
0.01
0.1
1
VCC = 12 V
RL = 8
Gain = 12 dB
PO = 5 W
PO = 250 mW
PO = 1 W
Figure 14
f – Frequency – Hz
20
100
1k
10k
THD+N
–
T
otal
Harmonic
Distortion
+
Noise
–
%
TOTAL HARMONIC DISTORTION + NOISE
vs
FREQUENCY
0.01
0.1
1
VCC = 8 V
RL = 8
Gain = 12 dB
PO = 5 W
PO = 250 mW
PO = 1 W
