D1
D2
D3
D4
C1
C2
C3
C4
B1
B2
B3
B4
A1
A3
A4
SW
AGND
CPN
SDA
AVDD
CPP
HPVSS
SCL
OUTL
HPVDD
OUTR
INL-
INL+
INR+
A2
SGND
INR-

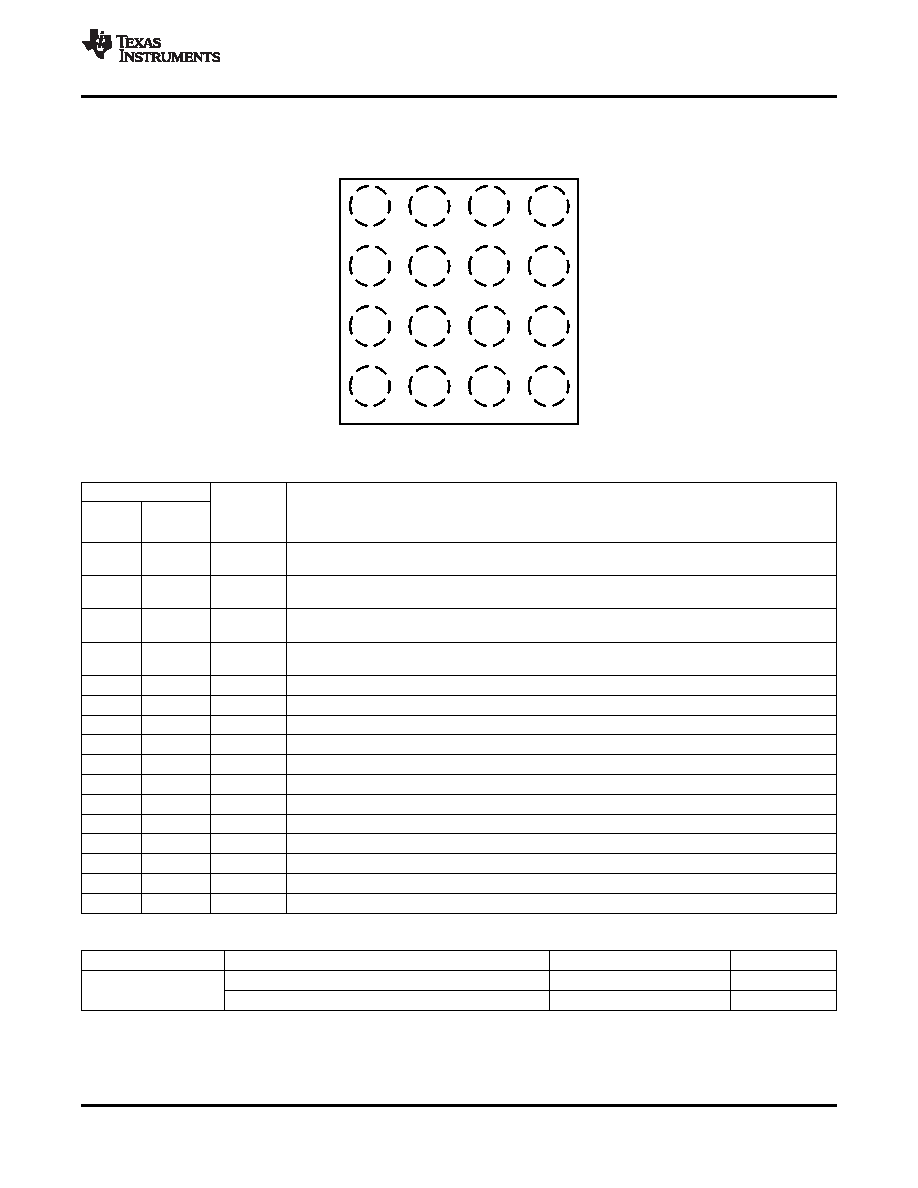

WCSP PACKAGE
(TOPVIEW)
www.ti.com................................................................................................................................................. SLOS598A – MARCH 2009 – REVISED OCTOBER 2009
DEVICE PINOUT
TERMINAL FUNCTIONS
TERMINAL
INPUT /
OUTPUT /
BALL
DESCRIPTION
POWER
NAME
WCSP
(I/O/P)
INL–
A4
I
Inverting left input for differential signals; connect to left input signal through 1
μF capacitor for
single-ended input applications
INL+
B4
I
Non-inverting left input for differential signals; connect to ground through 1
μF capacitor for
single-ended input applications
INR–
D4
I
Inverting right input for differential signals; connect to right input signal through 1
μF capacitor for
single-ended input applications
INR+
C4
I
Non-inverting right input for differential signals; connect to ground through 1
μF capacitor for
single-ended input applications
SGND
C3
I
Sense Ground; connect to shield terminal of headphone jack or to AGND
SDA
D1
I/O
I2C Data; 1.8 V logic compliant
SCL
D2
I
I2C Clock; 1.8 V logic compliant
OUTL
A3
O
Left headphone amplifier output; connect to left terminal of headphone jack
OUTR
D3
O
Right headphone amplifier output; connect to right terminal of headphone jack
CPP
B2
P
Charge pump positive flying cap; connect to positive side of capacitor between CPP and CPN
CPN
C1
P
Charge pump negative flying cap; connect to negative side of capacitor between CPP and CPN
SW
A1
P
Buck converter switching node
AVDD
A2
P
Primary power supply for device
HPVDD
B3
P
Power supply for headphone amplifier (DC/DC output node)
AGND
B1
P
Main Ground for headphone amplifiers, DC/DC converter, and charge pump
HPVSS
C2
P
Charge pump output; connect 2.2
μF capacitor to GND
ORDERING INFORMATION
TA
PACKAGED DEVICES (1)
PART NUMBER (2)
SYMBOL
16-ball, 1,6 mm × 1,6 mm WCSP
TPA6140A2YFFR
AIFI
–40°C to 85°C
16-ball, 1,6 mm × 1,6 mm WCSP
TPA6140A2YFFT
AIFI
(1)
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
Web site at www.ti.com.
(2)
YFF packages are only available taped and reeled. The suffix “R” indicates a reel of 3000, the suffix “T” indicates a reel of 250.
Copyright 2009, Texas Instruments Incorporated
3
Product Folder Link(s): TPA6140A2
