4
SLVSAH5A
– DECEMBER 2010 – REVISED MARCH 2011
APPLICATION INFORMATION
DESIGN GUIDE
– STEP-BY-STEP DESIGN PROCEDURE
This example details the design of a high frequency switching regulator design using ceramic output capacitors.
This design is available as the HPA375 evaluation module (EVM). A few parameters must be known in order to
start the design process. These parameters are typically determined on the system level. For this example, we
start with the following known parameters:
Output Voltage
1.8 V
Transient Response 1 to 2A load step
ΔVout = 5%
Maximum Output Current
4 A
Input Voltage
5 V nom. 3 V to 5 V
Output Voltage Ripple
< 30 mV p-p
Switching Frequency (Fsw)
1000 kHz
SELECTING THE SWITCHING FREQUENCY
The first step is to decide on a switching frequency for the regulator. Typically, you want to choose the highest
switching frequency possible since this produces the smallest solution size. The high switching frequency allows
for lower valued inductors and smaller output capacitors compared to a power supply that switches at a lower
frequency. However, the highest switching frequency causes extra switching losses, which hurt the converter
’s
performance. The converter is capable of running from 300 kHz to 2 MHz. Unless a small solution size is an
ultimate goal, a moderate switching frequency of 1MHz is selected to achieve both a small solution size and a
high efficiency operation. Using Equation 9, R5 is calculated to be 180 k
. A standard 1% 182 k value was
chosen in the design.

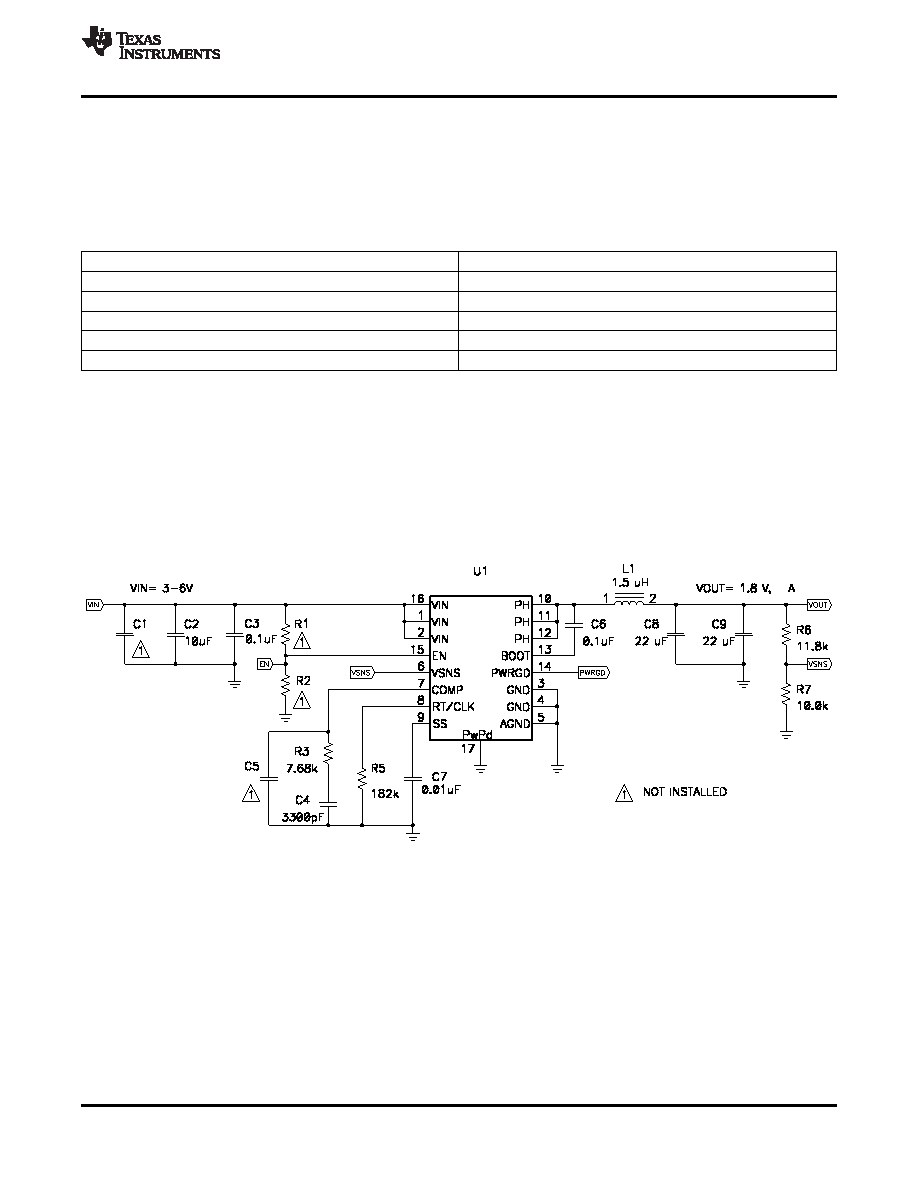

Figure 34. High Frequency, 1.8 V Output Power Supply Design with Adjusted UVLO
OUTPUT INDUCTOR SELECTION
The inductor selected works for the entire TPS57114 -Q1 input voltage range. To calculate the value of the
output inductor, use Equation 22. KIND is a coefficient that represents the amount of inductor ripple current
relative to the maximum output current. The inductor ripple current is filtered by the output capacitor. Therefore,
choosing high inductor ripple currents impacts the selection of the output capacitor since the output capacitor
must have a ripple current rating equal to or greater than the inductor ripple current. In general, the inductor
ripple value is at the discretion of the designer; however, KIND is normally from 0.1 to 0.3 for the majority of
applications.
Copyright
2010–2011, Texas Instruments Incorporated
21
Product Folder Link(s): TPS57114 -Q1
