EN
SS
VO1
VO2
SS/TR1
SS/TR2
TPS57114-Q1
EN1
EN2
PWRGD1
PWRGD2
TPS57114-Q1
D
V out2 +
V
V ssoffset
R1 =
V ref
Iss
D
-
Vref
R1
R2 =
Vout2 +
V
Vref
V = Vout1
Vout 2
D
-
R1
2930
Vout1 145
V
>
-
D
SLVSAH5A
– DECEMBER 2010 – REVISED MARCH 2011

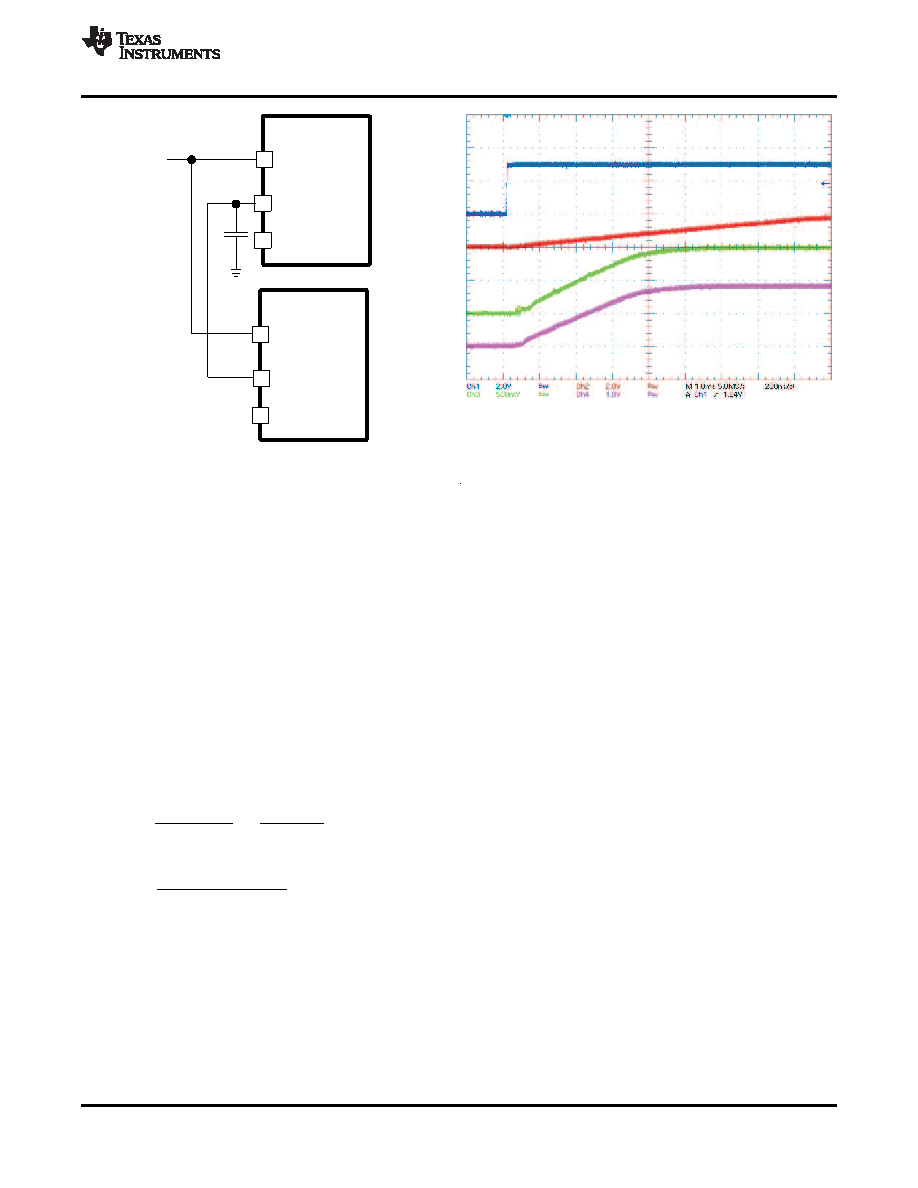

Figure 25. Schematic for Ratiometric Start-Up
Figure 26. Ratio-metric Startup with VOUT1
Sequence
Leading VOUT2
Ratio-metric and simultaneous power supply sequencing can be implemented by connecting the resistor network
of R1 and R2 shown in Figure 27 to the output of the power supply that needs to be tracked or another voltage
reference source. Using Equation 5 and Equation 6, the tracking resistors can be calculated to initiate the Vout2
slightly before, after or at the same time as Vout1. Equation 7 is the voltage difference between Vout1 and
Vout2. The
ΔV variable is zero volts for simultaneous sequencing. To minimize the effect of the inherent SS/TR
to VSENSE offset (Vssoffset) in the slow start circuit and the offset created by the pullup current source (Iss) and
tracking resistors, the Vssoffset and Iss are included as variables in the equations. To design a ratio-metric start
up in which the Vout2 voltage is slightly greater than the Vout1 voltage when Vout2 reaches regulation, use a
negative number in Equation 5 through Equation 7 for
ΔV. Equation 7 will result in a positive number for
applications which the Vout2 is slightly lower than Vout1 when Vout2 regulation is achieved. Since the SS/TR pin
must be pulled below 60 mV before starting after an EN, UVLO or thermal shutdown fault, careful selection of the
tracking resistors is needed to ensure the device will restart after a fault. Make sure the calculated R1 value from
Equation 5 is greater than the value calculated in Equation 8 to ensure the device can recover from a fault. As
the SS/TR voltage becomes more than 85% of the nominal reference voltage the Vssoffset becomes larger as
the slow start circuits gradually handoff the regulation reference to the internal voltage reference. The SS/TR pin
voltage needs to be greater than 1.1 V for a complete handoff to the internal voltage reference as shown in
vertical spacer
(5)
vertical spacer
(6)
vertical spacer
(7)
vertical spacer
(8)
vertical spacer
Copyright
2010–2011, Texas Instruments Incorporated
15
Product Folder Link(s): TPS57114 -Q1
