V
=1.8V
1V/div
OUT
I
200mA/div
L
V
=3.6V
C
=4.7
F
L =2.2
H
MODE=GND
I
=0mA
IN
OUT
m
SW5V/div
EN2V/div
V
PreBias=1V
OUT
TimeBase-20
s/div
m
SW
2V/div
V
=0Vto2.5V
1V/div
OUT
I
50mA/div
IN
V
=3.6V
C
=4.7
F
L =1
H
MODE=GND
Load=20R
IN
OUT
m
t-Time-20 ms/div
EN
2V/div
www.ti.com....................................................................................................................................................... SLVS941A – APRIL 2009 – REVISED AUGUST 2009

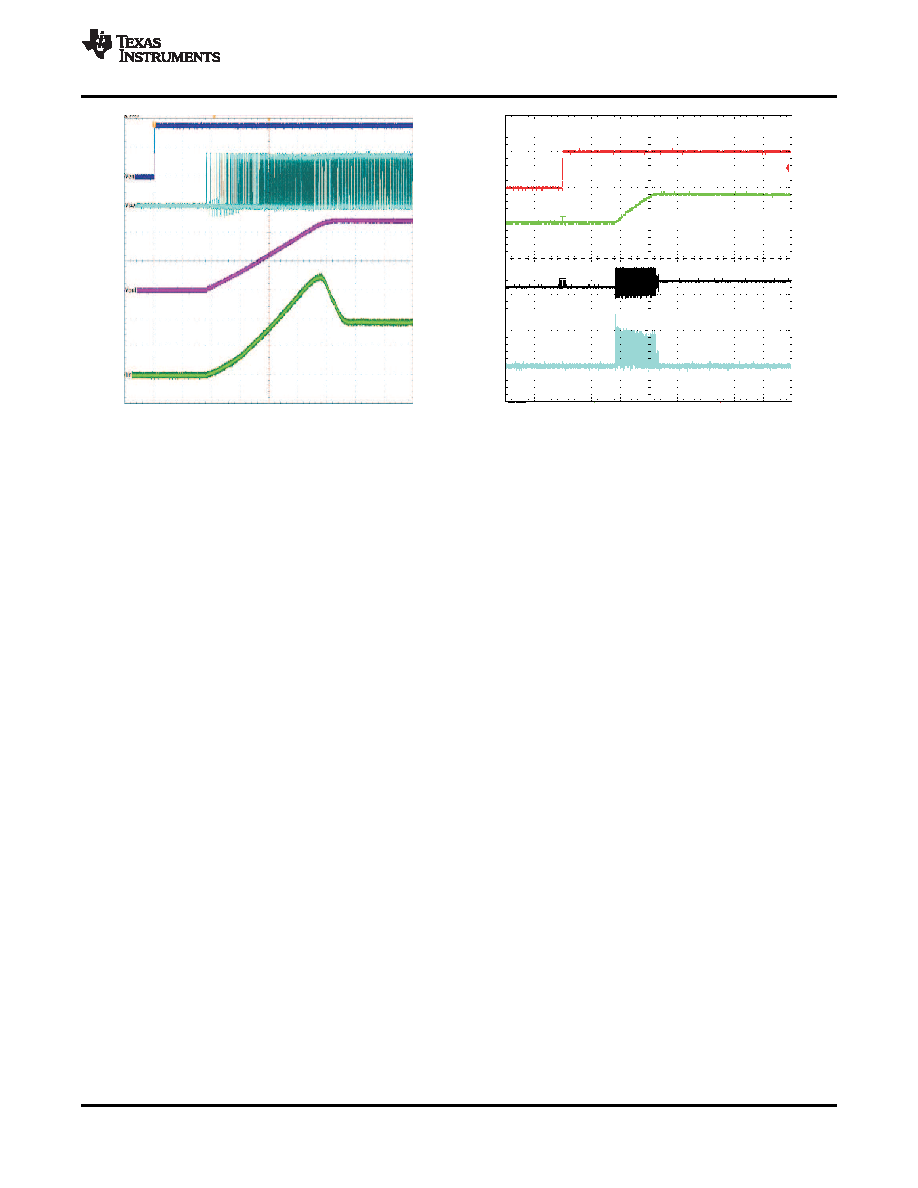

Figure 39. Start Up into 20
Load, VOUT 2.5V
Figure 40. Startup in 1V Pre-biased Output
DETAILED DESCRIPTION
The TPS6223X synchronous step down converter family includes a unique hysteric PWM controller scheme
which enables switch frequencies over 3MHz, excellent transient and ac load regulation as well as operation with
tiny and cost competitive external components.
The controller topology supports forced PWM Mode as well as Power Save Mode operation. Power Save Mode
operation reduces the quiescent current consumption down to 22
μA and ensures high conversion efficiency at
light loads by skipping switch pulses.
In forced PWM Mode, the device operates on a quasi fixed frequency, avoids pulse skipping and allows therefore
easy filtering of the switch noise by external filter components.
The TPS6223X devices offer fixed output voltage options featuring smallest solution size by using only three
external components.
The internal switch current limit of typical 850mA supports output currents of up to 500mA, depending on the
operating condition.
A significant advantage of TPS6223X compared to other hysteretic PWM controller topologies is its excellent DC
and AC load regulation capability in combination with low output voltage ripple over the entire load range which
makes this part well suited for audio and RF applications.
OPERATION
Once the output voltage falls below the threshold of the error comparator a switch pulse is initiated and the high
side switch is turned on. It remains turned on until a minimum on time of TONmin expires and the output voltage
trips the threshold of the error comparator or the inductor current reaches the high side switch current limit. Once
the high side switch turns off, the low side switch rectifier is turned on and the inductor current ramps down until
the high side switch turns on again or the inductor current reaches zero.
In forced PWM Mode operation negative inductor current is allowed to enable continuous conduction mode even
at no load condition.
POWER SAVE MODE
Connecting the MODE pin to GND enables the automatic PWM and power-save mode operation. The converter
operates in quasi fixed frequency PWM mode at moderate to heavy loads and in the PFM (Pulse Frequency
Modulation) mode during light loads, which maintains high efficiency over a wide load current range.
Copyright 2009, Texas Instruments Incorporated
17
