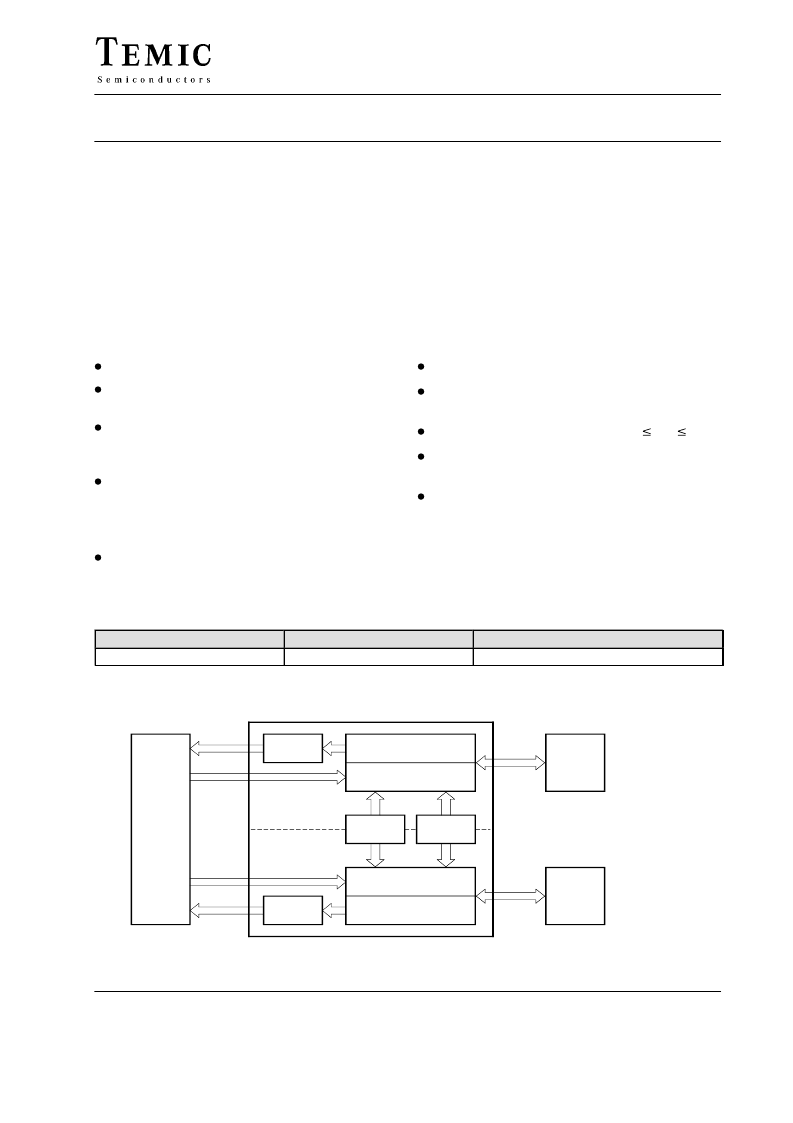

U6268B
Preliminary Information
TELEFUNKEN Semiconductors
Rev. A1, 21-May-97
1 (12)
Side-Airbag Sensor Dual Interface
Description
The U6268B is an interface IC for remote automotive
sensors. It links the crash sensors in the driver- and
passenger door with the main airbag unit in the
dashboard. Two identical channels supply the external
sensors and receive digital information from them via one
active wire each. The interface supplies the external
sensors with a pre-regulated smoothed voltage, the
external units transmit the digital information back to the
interface by current modulation.
As the device is for safety critical applications, highest
data transmission security is mandatory. With high
immunity against cross-coupling between the two
channels, the U6228B is tailored for the harsh automotive
environment.
Features
Two identical interface channels
Provides a pre-regulated smoothed voltage and a
supply current up to 50 mA for the sensors
Receives data from the sensors by current modulation
with a transmission rate of 60 kBaud (transmission
bandwidth 500 kHz)
Current modulation provides high noise immunity for
data transfer
TTL-compatible input activate the sensor
Data output can be directly connected to a micro-
controller input
Operation supply voltage range 5.7 V
V
S
40 V
ESD protection according to MIL-STD-883C test
method 3015.7
High-level EMI protection
Benefits
Voltage supply and data transmission with one active
wire over long distances
Ordering Information
Extended Type Number
U6268B
Package
SO16
Remarks
Block Diagram
Short circuit
detection
Temperature
monitor
Smoothed voltage
regulator
I/U converter
Smoothed voltage
regulator
I/U converter
Voltage
comparator
Channel 1
Data
Enable
Enable
Voltage
comparator
Channel 2
Data
Crash
sensor
Channel 1
Channel 2
Channel 1
power
supply
Data
trans–
mission
Crash
sensor
Channel 2
power
supply
Data
trans–
mission
13839
μ
C
Figure 1. Block diagram
