1998 Jul 22
11
Philips Semiconductors
Product specification
Advanced modem/audio analog front-end
UCB1200
TELECOM CODEC
The telecom codec contains an input channel, built up from a 64 times oversampling sigma delta analog to digital
converter (ADC) with digital decimation filters, programmable attenuation and built-in sidetone suppression circuit.
The output path consist of a digital up sample filter, a 64 time oversampling 4 bit digital to analog converter (DAC) circuit
followed by a differential output driver, capable of directly driving a 600
isolation transformer. The output path includes
a mute function. The telecom codec also incorporates a loopback mode, in which codec output path and the input path
are connected in series.
The telecom sample rate (f
st
) is derived from the SIB interface clock pin (SIBCLK) and is programmable through the SIB
interface. The telecom sample rate is given by the following formula:
2
F
×
(
)
TEL_DIV[n]
×
)
(15 < TEL_DIV[n] <128)
For example, a SIBCLK of 9.216 MHz, with a divisor of 40, results in a telecom sample rate of 7.2 kHz. Both the rising
and the falling edges of the SIBCLK are used in case TEL_DIV[n] is set to an odd number. In that case a 50% duty cycle
of the SIBCLK signal is mandatory to obtain time equidistant sampling.
The input path of the telecom codec has a programmable attenuation. It also implements a voice band filter, which
consists of an digital low pass filter, which is a part of the decimation filter. Therefore the pass band of the voice band

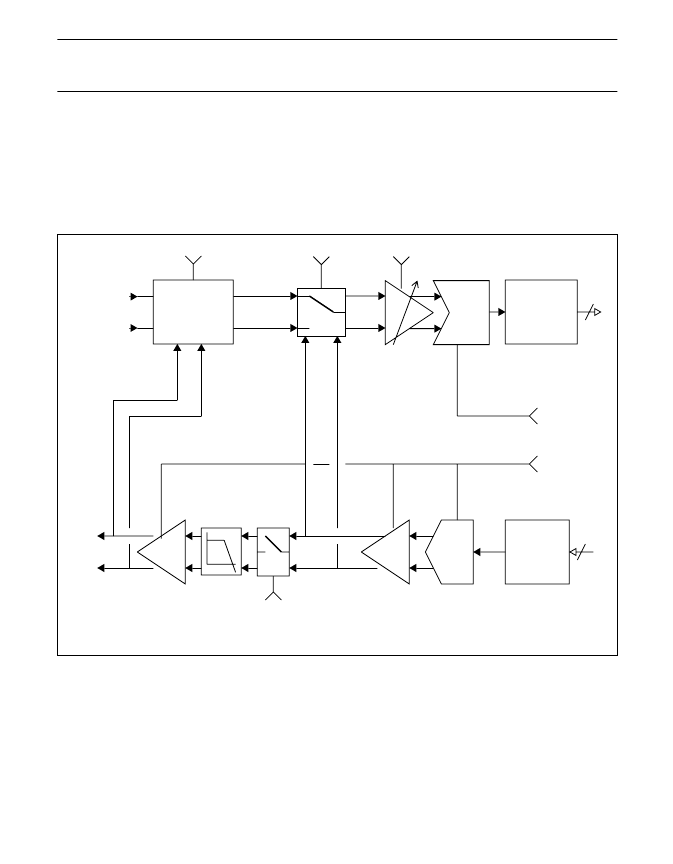

Fig.7 Telecom codec block diagram.
TINP
TOUTP
TOUTN
TEL_SIDE_ENA
TEL_LOOP
1bit ADC
DIGITAL
DECIMATION
FILTER
14
TEL_IN_ENA
TEL_OUT_ENA
14
TEL_MUTE
4bit DAC
DIGITAL
NOISE
SHAPER
TINN
SIDETONE
SUPPRESSION
CIRCUIT
TEL_ATT
f
st
-64
=
