AD7822/AD7825/AD7829
–12–
REV. A
OPERATING MODES
The AD7822, AD7825, and AD7829 have two possible modes
of operation, depending on the state of the
CONVST
pulse
approximately 100 ns after the end of a conversion, i.e., upon
the rising edge of the
EOC
pulse.
Mode 1 Operation (High Speed Sampling)
When the AD7822, AD7825, and AD7829 are operated in
Mode 1 they are not powered-down between conversions. This
mode of operation allows high throughput rates to be achieved.
Figure 20 shows how this optimum throughput rate is achieved
by bringing
CONVST
high before the end of a conversion, i.e.,
before the
EOC
pulses low. When operating in this mode a new
conversion should not be initiated until 30 ns after the end of a
read operation. This is to allow the track/hold to acquire the
analog signal to 0.5 LSB accuracy.
Mode 2 Operation (Automatic Power-Down)
When the AD7822, AD7825, and AD7829 are operated in
Mode 2 (see Figure 21), they automatically power down at the
end of a conversion. The
CONVST
signal is brought low to ini-
tiate a conversion and is left logic low until after the
EOC
goes
high, i.e., approximately 100 ns after the end of the conversion.
The state of the
CONVST
signal is sampled at this point (i.e.,
530 ns maximum after
CONVST
falling edge) and the AD7822,
AD7825, and AD7829 will power down as long as
CONVST
is low. The ADC is powered up again on the rising edge of the
CONVST
signal. Superior power performance can be achieved
in this mode of operation by only powering up the AD7822,
AD7825, and AD7829 to carry out a conversion. The parallel
interface of the AD7822, AD7825, and AD7829 is still fully
operational while the ADCs are powered down. A read may occur
while the part is powered down, and so it does not necessarily
need to be placed within the
EOC
pulse as shown in Figure 21.
t
2
t
1
t
3
VALID
DATA
CONVST
EOC
CS
RD
DB0-DB7
TRACK
HOLD
TRACK
HOLD
120ns

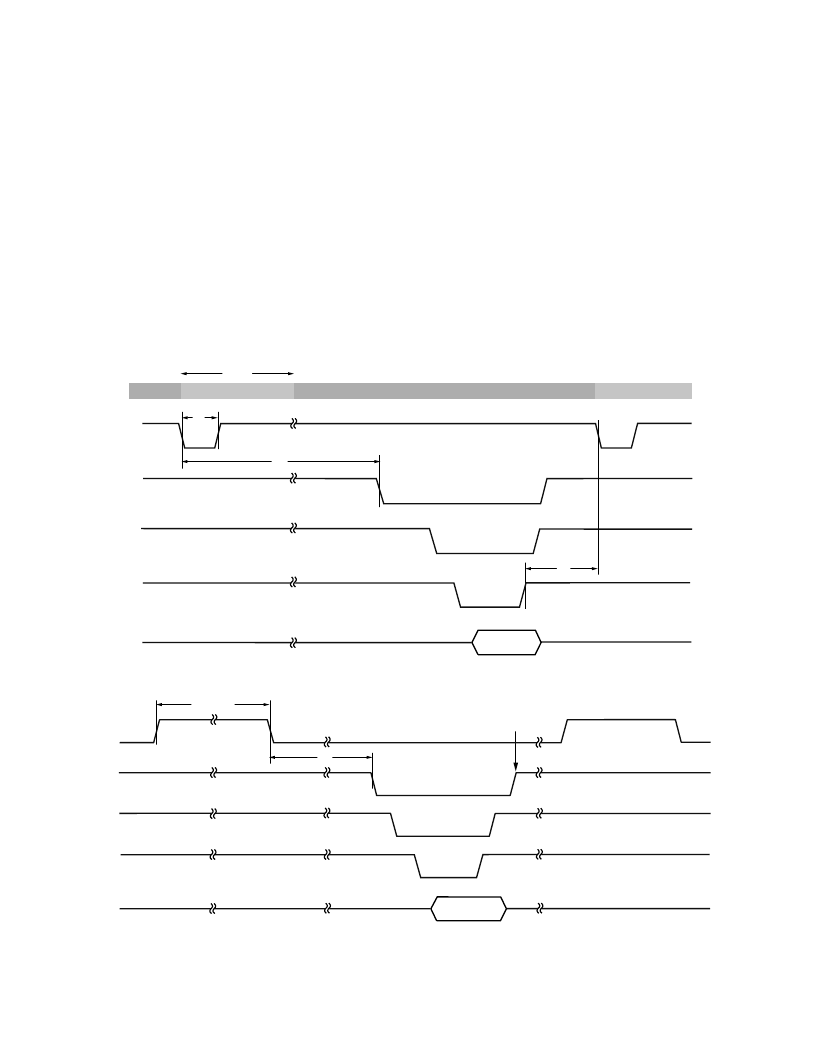

Figure 20. Mode 1 Operation
CONVST
EOC
CS
RD
DB0-DB7
t
POWER-UP
t
1
VALID
DATA
POWER
DOWN
HERE
Figure 21. Mode 2 Operation
