AD7854/AD7854L
–18–
REV. 0
Using T he Internal (On-Chip) Reference
As in the case of an external reference the AD7854/AD7854L can
power up from one of two conditions, power-up after the sup-
plies are connected or power-up from a software power-down.
When using the on-chip reference and powering up when AV
DD
and DV
DD
are first connected, it is recommended that the power-
up calibration mode be disabled as explained above. When using
the on-chip reference, the power-up time is effectively the time
it takes to charge up the external capacitor on the REF
IN
/
REF
OUT
pin. T his time is given by the equation:
t
UP
= 9
×
R
×
C
where
R
≈
150K and
C
= external capacitor.
T he recommended value of the external capacitor is 100nF;
this gives a power-up time of approximately 135 ms before a
calibration is initiated and normal operation should commence.
When C
REF
is fully charged, the power-up time from a software
power-down reduces to 5
μ
s. T his is because an internal switch
opens to provide a high impedance discharge path for the refer-
ence capacitor during power-down—see Figure 22. An added
advantage of the low charge leakage from the reference capacitor
during power-down is that even though the reference is being
powered down between conversions, the reference capacitor
holds the reference voltage to within 0.5 LSBs with throughput
rates of 100 samples/second and over with a full power-down
between conversions. A high input impedance op amp like the
AD707 should be used to buffer this reference capacitor if it is
being used externally. Note, if the AD7854/AD7854L is left in
its powered-down state for more than 100 ms, the charge on
C
REF
will start to leak away and the power-up time will increase.
If this longer power-up time is a problem, the user can use a
partial power-down for the last conversion so the reference re-
mains powered up.
SWITCH OPENS
DURING POWER-DOWN
TO OTHER CIRCUITRY
REF
IN/OUT
EXTERNAL
CAPACITOR
ON-CHIP
REFERENCE
BUF
AD7854/
AD7854L

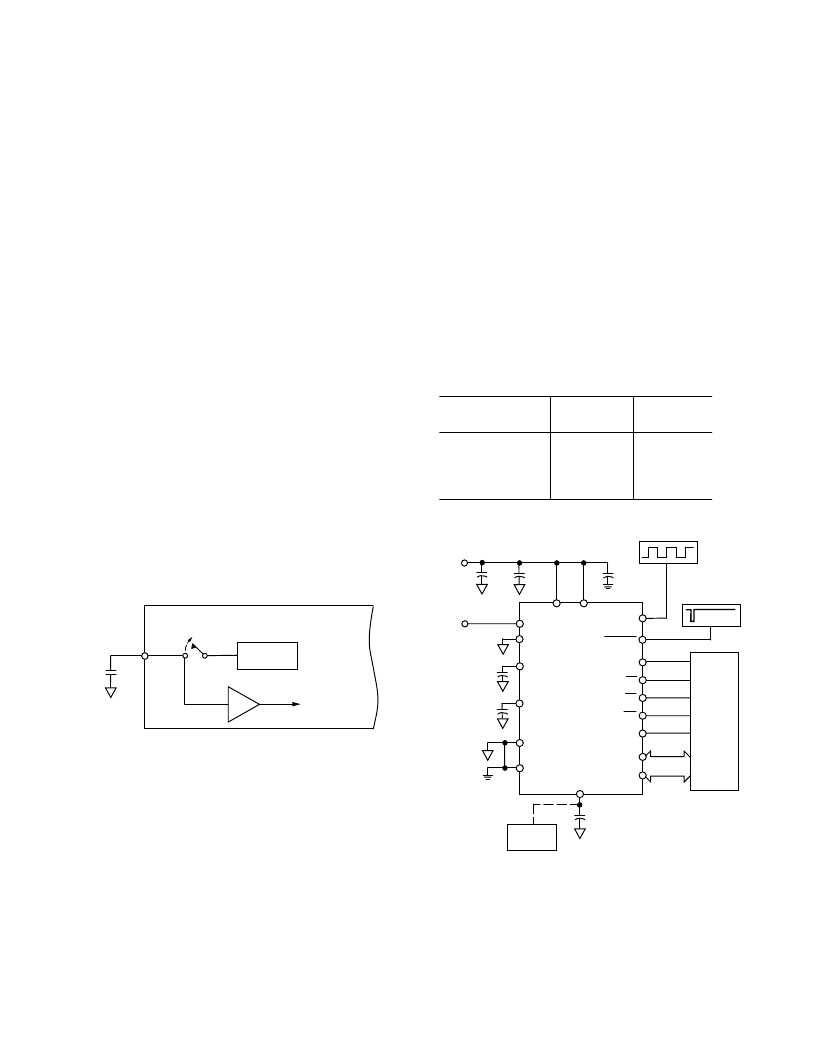

Figure 22. On-Chip Reference During Power-Down
POWE R VS. T HROUGHPUT RAT E
T he main advantage of a full power-down after a conversion is
that it significantly reduces the power consumption of the part
at lower throughput rates. When using this mode of operation,
the AD7854/AD7854L is only powered up for the duration of
the conversion. If the power-up time of the AD7854/AD7854L
is taken to be 5
μ
s and it is assumed that the current during
power-up is 4.5 mA/1.5 mA typ, then power consumption as a
function of throughput can easily be calculated. T he AD7854
has a conversion time of 4.6
μ
s with a 4 MHz external clock,
and the AD7854L has a conversion time of 9
μ
s with a 1.8 MHz
clock. T his means the AD7854/AD7854L consumes 4.5 mA/
1.5 mA typ for 9.6
μ
s/14
μ
s in every conversion cycle if the parts
are powered down at the end of a conversion. T he four graphs,
Figures 24, 25, 26 and 27, show the power consumption of the
AD7854 and AD7854L for V
DD
= 3 V as a function of through-
put. T able VII lists the power consumption for various through-
put rates.
T able VII. Power Consumption vs. T hroughput
Power
AD7854
Power
AD7854L
T hroughput Rate
1 kSPS
10 kSPS
20 kSPS
50 kSPS
130
μ
W
1.3 mW
2.6 mW
6.48 mW
65
μ
W
650
μ
W
1.25 mW
3.2 mW
4MHz/1.8MHz
OSCILLATOR
AV
DD
DV
DD
AIN(+)
AIN(–)
C
REF1
C
REF2
DB11
DB0
CONVST
AGND
DGND
CLKIN
REF
IN
/REF
OUT
AD7854/
AD7854L
ANALOG
SUPPLY
+3V TO +5V
0.1μF
0.1μF
10μF
0.1μF
0.01μF
CONVERSION
START SIGNAL
0.1nF EXTERNAL REFERENCE
0.1μF ON-CHIP REFERENCE
0V TO 2.5V
INPUT
OPTIONAL
EXTERNAL
REFERENCE
CS
RD
WR
BUSY
AD780/
REF192
μC/μP
HBEN
FULL POWER-DOWN
AFTER A CONVERSION
PMGT1 = 0
PMGT0 = 1
Figure 23. Typical Low Power Circuit
