400 MSPS, 10-Bit, 1.8 V CMOS
Direct Digital Synthesizer
AD9859
FEATURES
Rev.
0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
Tel: 781.329.4700Fax: 781.326.8703
400 MSPS internal clock speed Integrated 10-bit DAC
32-bit tuning word
Phase noise ≤ –120 dBc/Hz @ 1 kHz offset (DAC output)
Excellent dynamic performance
>75 dB SFDR @ 160 MHz (±100 kHz offset) A
OUT
Serial I/O control
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4× to 20×)
Internal oscillator; can be driven by a single crystal
Phase modulation capability
Multichip synchronization
APPLICATIONS
Agile LO frequency synthesis
Programmable clock generators
Test and measurement equipment
Commercial and amateur radio exciter
GENERAL DESCRIPTION
The AD9859 is a direct digital synthesizer (DDS) featuring a
10-bit DAC operating at up to 400 MSPS. The AD9859 uses
advanced DDS technology, coupled with an internal high speed,
high performance DAC to form a digitally programmable,
complete high frequency synthesizer capable of generating a
frequency-agile analog output sinusoidal waveform at up to
200 MHz. The AD9859 is designed to provide fast frequency
hopping and fine tuning resolution (32-bit frequency tuning
word). The frequency tuning and control words are loaded into
the AD9859 via a serial I/O port.
The AD9859 is specified to operate over the extended industrial
temperature range of –40°C to +105°C

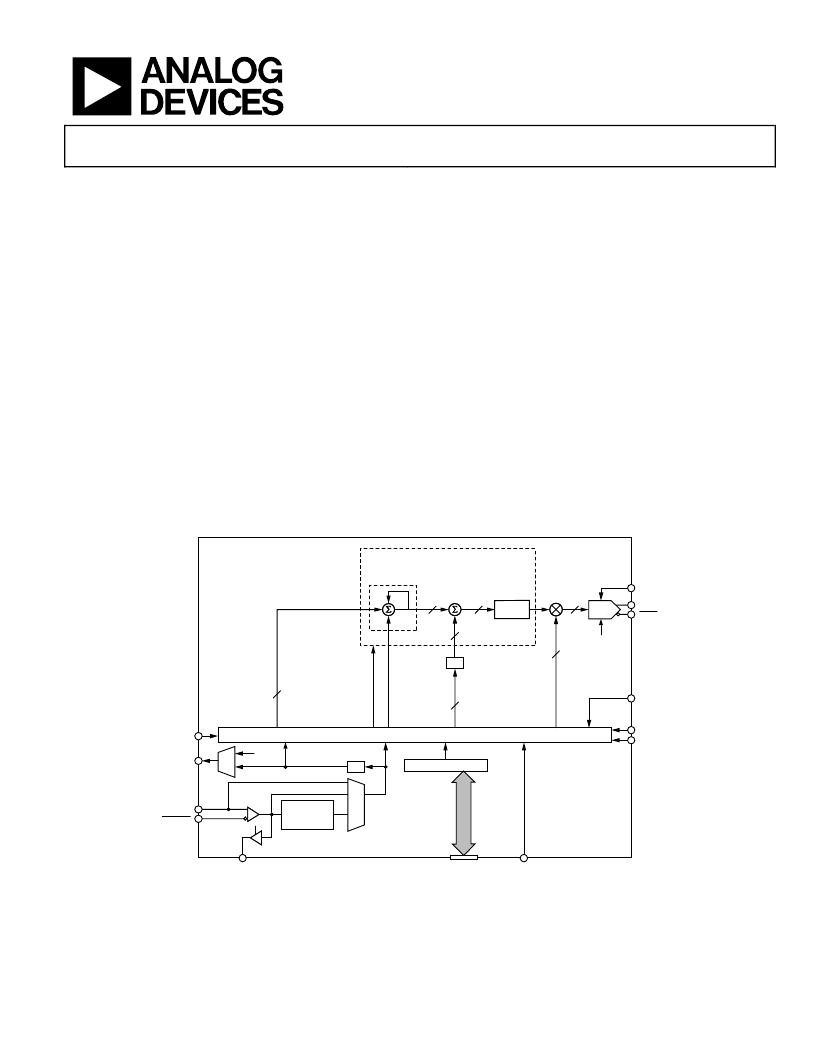

FUNCTIONAL BLOCK DIAGRAM
COS(X)
CONTROL REGISTERS
OSCILLATOR/BUFFER
SYNC
ENABLE
I/O UPDATE
DAC_R
SET
DDS CORE
PHASE
ACCPHASE
Z
–1
Z
–1
IOUT
IOUT
OSK
PWRDWNCTL
REFCLK
REFCLK
CRYSTAL OUT
I/O PORT
D
F
T
A
S
P
A
R
DAC
CLOCK
CLOCK
SYNC_IN
SYNC_CLK
RESET
TIMING AND CONTROL LOGIC
×
–20
×
M4
÷ 4
AD9859
32
14
10
14
19
32
10
0
M
U
X
M
U
X
0
Figure 1.
