Input/Output (I/O) Ports
Technical Data
MC68HC05C8A
MC68HCL05C8A
MC68HSC05C8A
Rev. 5.0
58
Input/Output (I/O) Ports
MOTOROLA

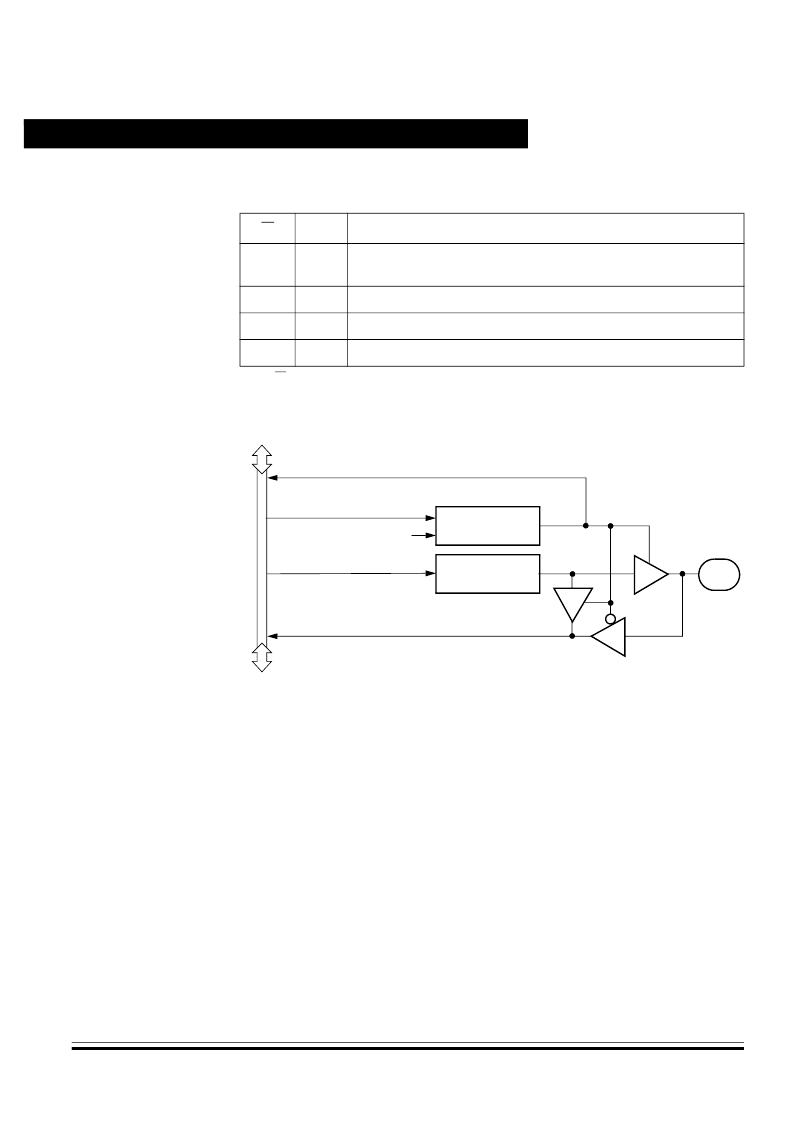

Figure 7-2. I/O Circuitry
Table 7-1. I/O Pin Functions
R/W
(1)
1. R/W is an internal signal.
DDR
I/O Pin Function
0
0
The I/O pin is in input mode. Data is written into the output
data latch.
0
1
Data is written into the output data latch and output to the I/O pin.
1
0
The state of the I/O pin is read.
1
1
The I/O pin is in an output mode. The output data latch is read.
READ DDRx
WRITE DDRx
RESET
WRITE PORTx
READ PORTx
I
PORT x DATA
REGISTER BIT
(LATCHED OUTPUT)
DATA DIRECTION
REGISTER x BIT
I/O
PIN
[1]
[2]
[3]
[1] This output buffer enables the latched output to drive the pin when DDR bit is 1 (output mode).
[2] This input buffer is enabled when DDR bit is 0 (input mode).
[3] This input buffer is enabled when DDR bit is 1 (output mode).
