1

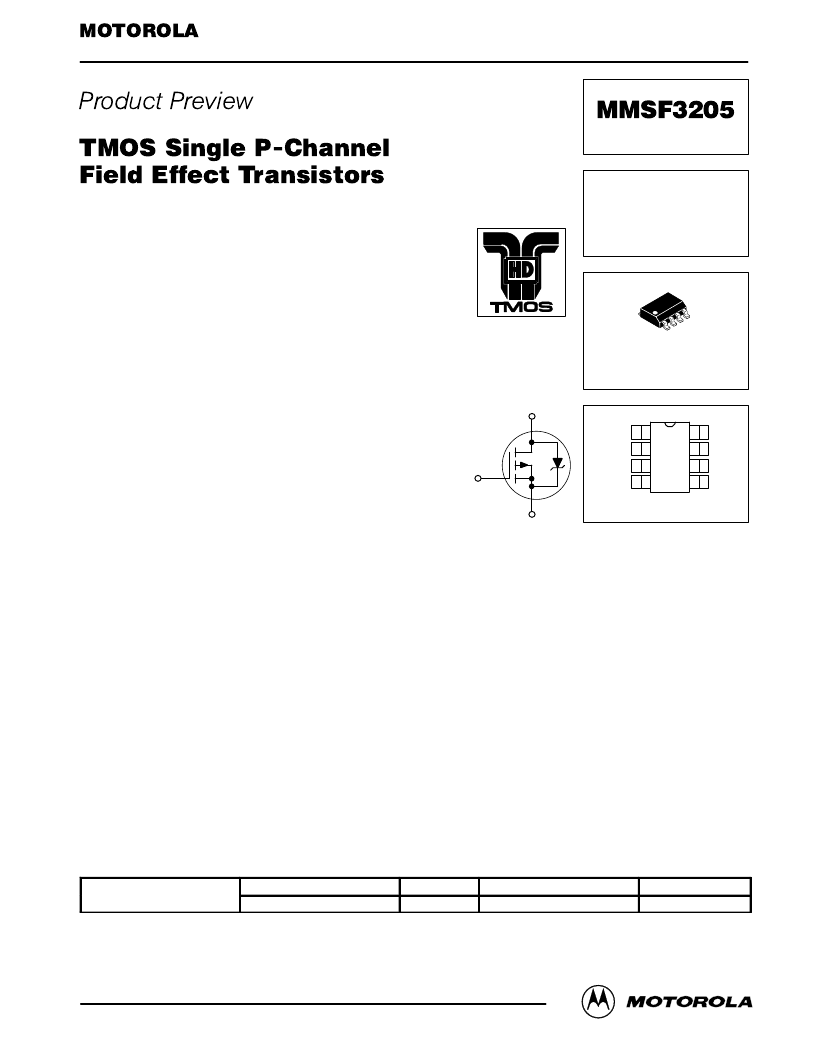

Motorola TMOS Power MOSFET Transistor Device Data
Medium Power Surface Mount Products
MiniMOS
devices are an advanced series of power MOSFETs
which utilize Motorola’s High Cell Density HDTMOS process. These
miniature surface mount MOSFETs feature ultra low RDS(on) and true
logic level performance. They are capable of withstanding high energy in
the avalanche and commutation modes and the drain–to–source diode
has a very low reverse recovery time. MiniMOS devices are designed for
use in low voltage, high speed switching applications where power
efficiency is important. Typical applications are dc–dc converters, and
power management in portable and battery powered products such as
computers, printers, cellular and cordless phones. They can also be
used for low voltage motor controls in mass storage products such as
disk drives and tape drives. The avalanche energy is specified to
eliminate the guesswork in designs where inductive loads are switched
and offer additional safety margin against unexpected voltage transients.
Ultra Low RDS(on) Provides Higher Efficiency and Extends Battery Life
Logic Level Gate Drive — Can Be Driven by Logic ICs
Miniature SO–8 Surface Mount Package — Saves Board Space
Diode Is Characterized for Use In Bridge Circuits
Diode Exhibits High Speed, With Soft Recovery
IDSS Specified at Elevated Temperature
Avalanche Energy Specified
Mounting Information for SO–8 Package Provided
DEVICE MARKING
ORDERING INFORMATION
S3205
Device
Reel Size
13
″
Tape Width
12 mm embossed tape
Quantity
4000 units
MMSF3205R2
HDTMOS and MiniMOS are trademarks of Motorola, Inc. TMOS is a registered trademark of Motorola, Inc.
Preferred
devices are Motorola recommended choices for future use and best overall value.
This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.
Order this document
by MMSF3205/D
SEMICONDUCTOR TECHNICAL DATA
CASE 751–06, Style 12
SO–8
SINGLE TMOS
POWER MOSFET
11 AMPERES
20 VOLTS
RDS(on) = 0.015 OHM
Motorola Preferred Device
Source
Source
Source
Gate
1
2
3
4
8
7
6
5
Top View
Drain
Drain
Drain
Drain
D
S
G
