參數資料
| 型號： | MMSF4N01HD |
| 廠商： | MOTOROLA INC |
| 元件分類： | 小信號晶體管 |
| 英文描述： | TMOS MOSFET 5.8 AMPERES 20 VOLTS |
| 中文描述： | 5800 mA, 20 V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET |
| 封裝： | MINIATURE, CASE 751-05, SO-8 |
| 文件頁數： | 6/10頁 |
| 文件大?。?/td> | 285K |
| 代理商： | MMSF4N01HD |
6
Motorola TMOS Power MOSFET Transistor Device Data
I
t, TIME

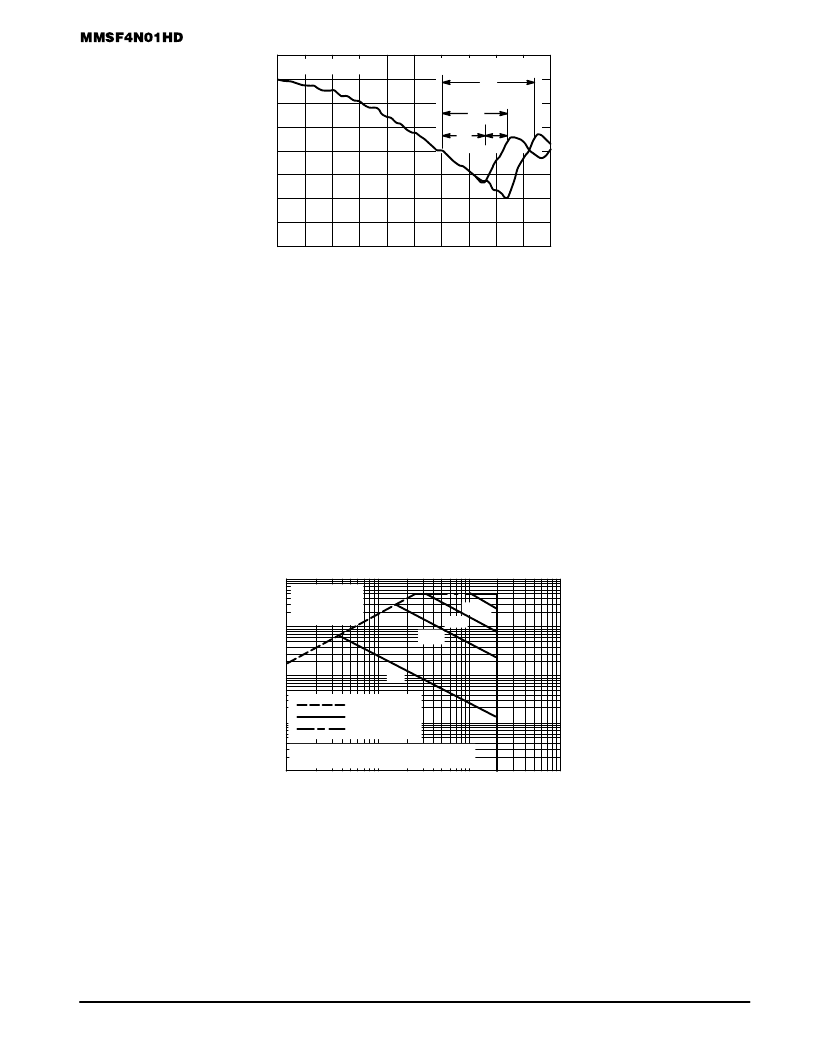

Figure 11. Reverse Recovery Time (trr)
di/dt = 300 A/
μ
s
Standard Cell Density
trr
High Cell Density
trr
tb
ta
SAFE OPERATING AREA
The Forward Biased Safe Operating Area curves define
the maximum simultaneous drain–to–source voltage and
drain current that a transistor can handle safely when it is for-
ward biased. Curves are based upon maximum peak junc-
tion temperature and a case temperature (TC) of 25
°
C. Peak
repetitive pulsed power limits are determined by using the
thermal response data in conjunction with the procedures
discussed in AN569, “Transient Thermal Resistance – Gen-
eral Data and Its Use.”
Switching between the off–state and the on–state may tra-
verse any load line provided neither rated peak current (IDM)
nor rated voltage (VDSS) is exceeded, and that the transition
time (tr, tf) does not exceed 10
μ
s. In addition the total power
averaged over a complete switching cycle must not exceed
(TJ(MAX) – TC)/(R
θ
JC).
A power MOSFET designated E–FET can be safely used
in switching circuits with unclamped inductive loads. For reli-
able operation, the stored energy from circuit inductance dis-
sipated in the transistor while in avalanche must be less than
the rated limit and must be adjusted for operating conditions
differing from those specified. Although industry practice is to
rate in terms of energy, avalanche energy capability is not a
constant. The energy rating decreases non–linearly with an
increase of peak current in avalanche and peak junction tem-
perature.
Figure 12. Maximum Rated Forward Biased
Safe Operating Area
0.1
VDS, DRAIN–TO–SOURCE VOLTAGE (VOLTS)
1
10
I
RDS(on) LIMIT
THERMAL LIMIT
PACKAGE LIMIT
0.01
VGS = 20 V
SINGLE PULSE
TC = 25
°
C
10
0.1
dc
10 ms
1
100
100
Mounted on 2” sq. FR4 board (1” sq. 2 oz. Cu 0.06”
thick single sided), 10s max.
1 ms
100
μ
s
