MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order Number: MPC99J93/D
Rev 1, 08/2003
MOTOROLA TIMING SOLUTIONS
1
Product Preview
Intelligent Dynamic Clock
Switch (IDCS) PLL Clock
Driver
The MPC99J93 is a PLL clock driver designed specifically for redun-
dant clock tree designs. The device receives two differential LVPECL
clock signals from which it generates 5 new differential LVPECL clock
outputs. Two of the output pairs regenerate the input signals frequency
and phase while the other three pairs generate 2x, phase aligned clock
outputs.
Features:
Fully Integrated PLL
Intelligent Dynamic Clock Switch
LVPECL Clock Outputs
LVCMOS Control I/O
3.3V Operation
32--Lead LQFP Packaging
Functional Description
The MPC99J93 Intelligent Dynamic Clock Switch (IDCS) circuit continuously monitors both input CLK signals. Upon detection
of a failure (CLK stuck HIGH or LOW for at least 1 period), the INP_BAD for that CLK will be latched (H). If that CLK is the primary
clock, the IDCS will switch to the good secondary clock and phase/frequency alignment will occur with minimal output phase
disturbance. The typical phase bump caused by a failed clock is eliminated. (See Application Information section).

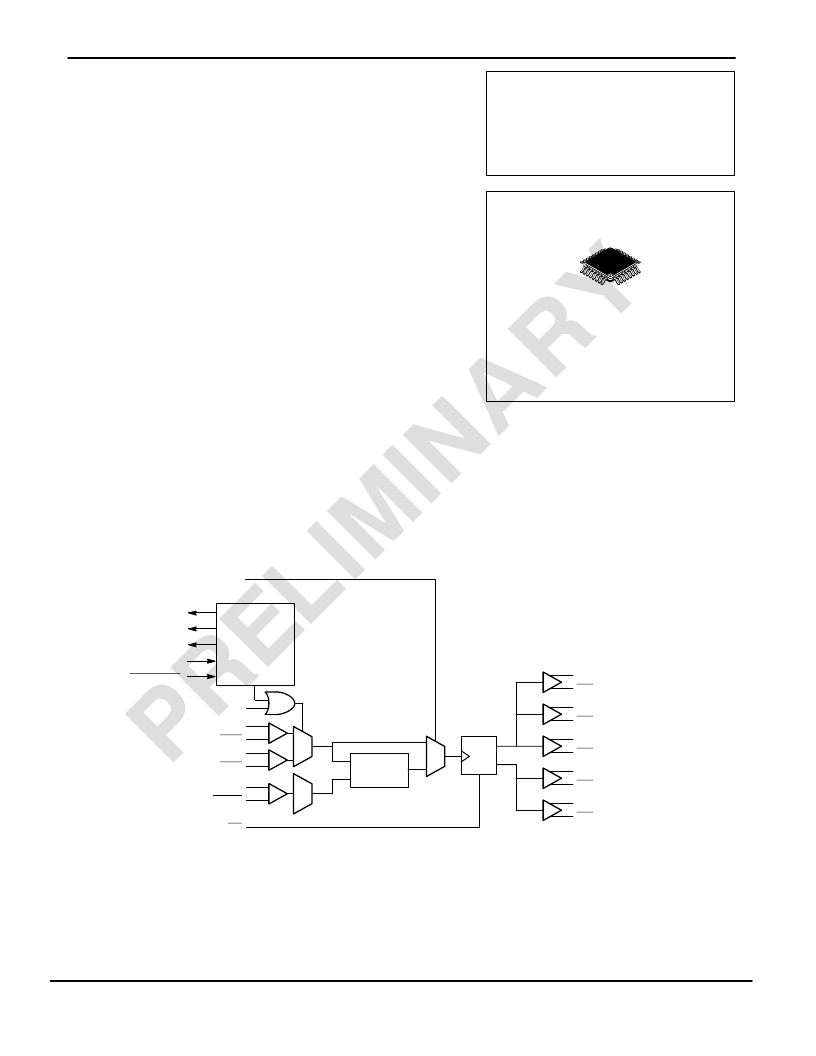

Figure 1. Block Diagram
CLK0
CLK0
CLK1
CLK1
Ext_FB
Ext_FB
Sel_Clk
Dynamic Switch
Logic
PLL
PLL_En
÷
2
÷
4
Qb0
Qb0
Qb1
Qb1
Qb2
Qb2
Qa0
Qa0
Qa1
Qa1
MR
Man_Override
Alarm_Reset
Clk_Selected
Inp1bad
Inp0bad
OR
200 -- 360 MHz
This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.
E
Motorola Inc. 2003
MPC99J93
FA SUFFIX
32--LEAD LQFP PACKAGE
CASE 873A
F
For More Information On This Product,
Go to: www.freescale.com
