NCP1406
http://onsemi.com
10

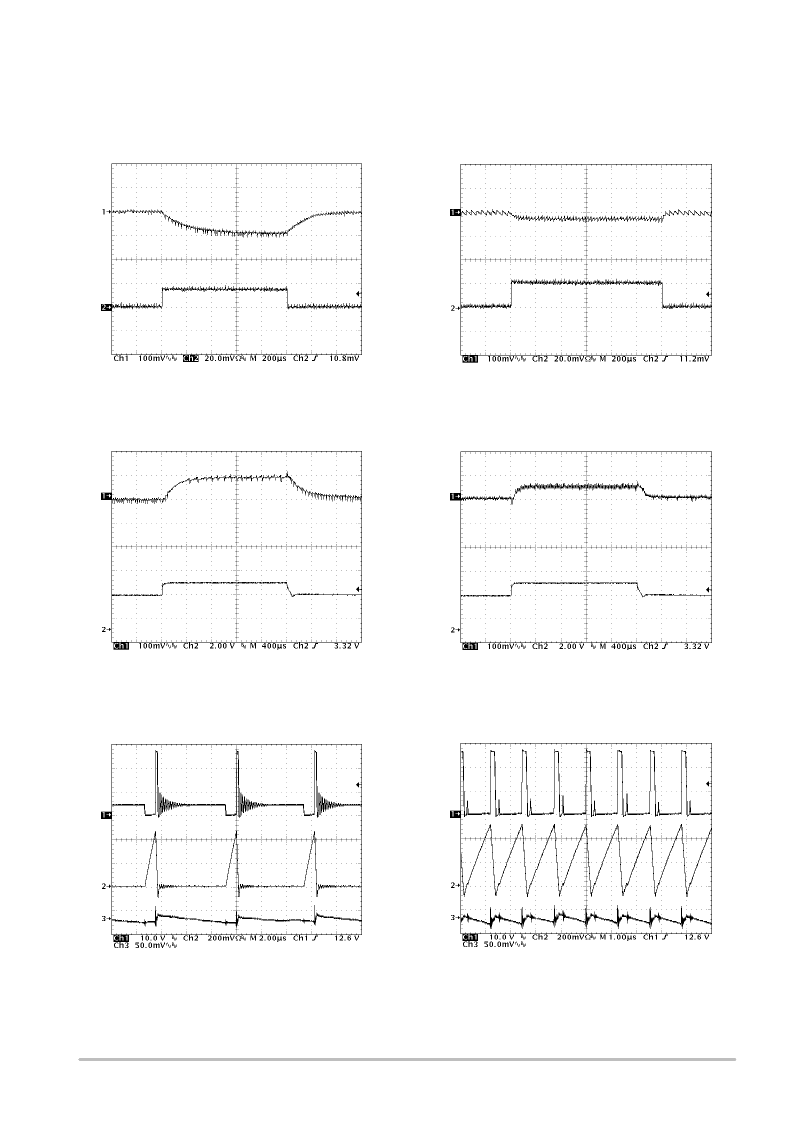

TYPICAL CHARACTERISTICS
Figure 35. Load Transient Response (V
OUT
= 25 V)
L1 = 8.2 H, C1 = 10 F, C2 = 3.3 F, V
IN
= 3.7 V
1. V
OUT
= 25 V (AC Coupled), 100 mV/div
2. I
OUT
= 1.0 mA to 15 mA, 20 mA/div
L1 = 8.2 H, C1 = 10 F, C2 = 4.7 F, V
IN
= 3.7 V
1. V
OUT
= 15 V (AC Coupled), 100 mV/div
2. I
OUT
= 1.0 mA to 20 mA, 20 mA/div
Figure 36. Load Transient Response (V
OUT
= 15 V)
Figure 37. Line Transient Response (V
OUT
= 25 V)
L1 = 8.2 H, C1 = 10 F, C2 = 3.3 F, I
OUT
= 15 mA
1. V
OUT
= 25 V (AC Coupled), 100 mV/div
2. V
IN
= 3.0 V to 4.0 V, 2.0 V/div
Figure 38. Line Transient Response (V
OUT
= 15 V)
L1 = 8.2 H, C1 = 10 F, C2 = 4.7 F, I
OUT
= 15 mA
1. V
OUT
= 15 V (AC Coupled), 100 mV/div
2. V
IN
= 3.0 V to 4.0 V, 2.0 V/div
Figure 39. Operating Waveforms (Light Load)
Figure 40. Operating Waveforms (Heavy Load)
L1 = 8.2 H, C1 = 10 F, C2 = 3.3 F, V
IN
= 4.2 V,
V
OUT
= 25 V, I
OUT
= 5.0 mA
1. V
LX
, 10 V/div
2. I
L
, 200 mA/div
3. V
ripple
, 50 mV/div
L1 = 8.2 H, C1 = 10 F, C2 = 3.3 F, V
IN
= 4.2 V,
V
OUT
= 25 V, I
OUT
= 30 mA
1. V
LX
, 10 V/div
2. I
L
, 200 mA/div
3. V
ripple
, 50 mV/div
