NCP1406
http://onsemi.com
15
switches on, the capacitor C1 is effectively connected like
a reversed battery and C1 discharges the stored charge
through the R
DS(on)
of the internal MOSFET and D3 to
charge up C
OUT
and builds up a negative voltage at V
OUT
.
Since the negative voltage output is not directly monitored
by the NCP1406, the output load regulation of the negative
output is not as good as the standard positive output circuit.
The resistance values of the resistors of the voltage divider
can be onetenth of those used in the positive output circuit
in order to improve the regulation at light load.
The application circuit in Figure 54, is actually the
combination of the application circuits in Figures 50 and
51.
StepDown Converter
NCP1406 can be configured as a simple stepdown
converter by using the opendrain LX pin to drive an
external PCh MOSFET as shown in Figure 52. The
resistor R
GS
is used to switch off the PCh MOSFET during
the switchoff period. Too small a resistance value should
not be used for R
GS
, otherwise, the efficiency will be
reduced. R
GS
should be in the range of 510 to 5.1 k .
White LED Driver
The NCP1406 can be used as a constant current LED
driver which can drive up to 6 white LEDs in series as
shown in Figure 57. The LED current can be set by the
resistance value of R
S
. The desired LED current can be
calculated by the equation below:
ILED
1.19
RS
Moreover, the brightness of the LEDs can be adjusted by
a DC voltage or a PWM signal with an additional circuit

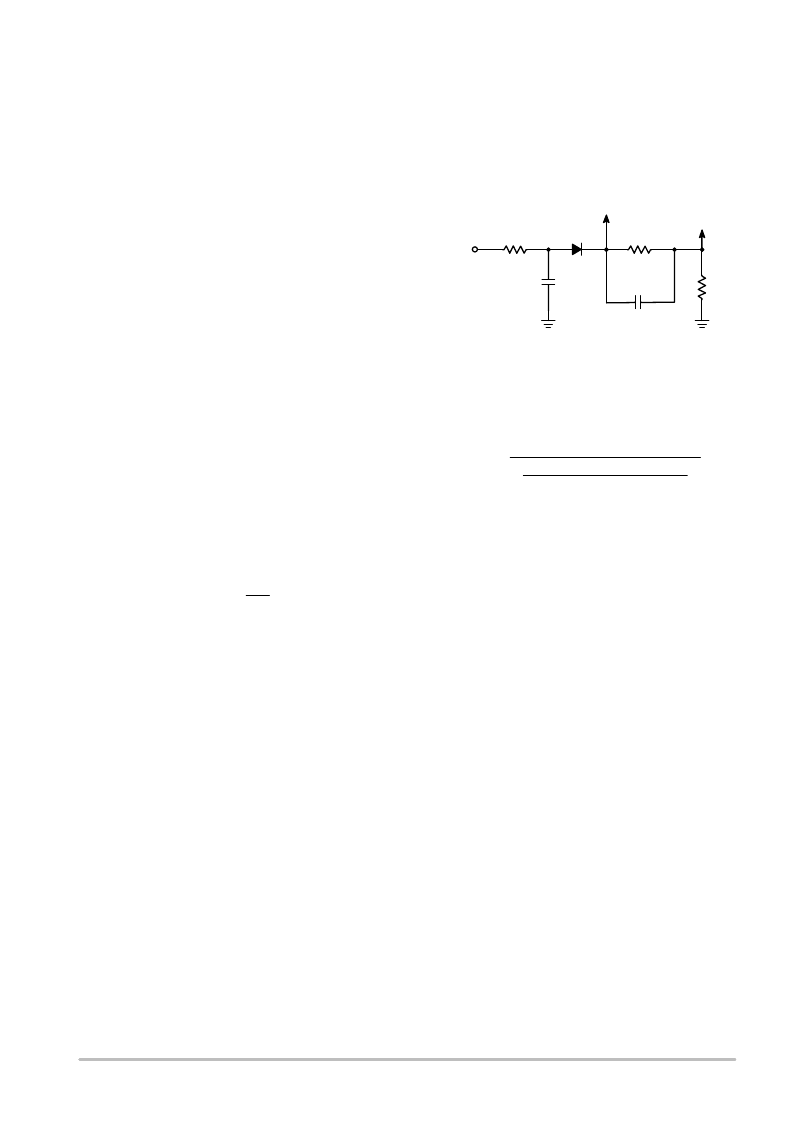

illustrated below:
DC/
PWM
Signal
R2
R1
100 k
C2
680 pF
GND
C1
0.1 F
D2
To FB Pin
To LED
Figure 45.
RS
With this additional circuit, the maximum LED current
is set by the above equation. The value of R2 can be
obtained by the following equation:
R2
VMAX
(ILED(MAX)
DCTL(MAX)
VD
1.19
RS
ILED(MIN))
R1
V
MAX
is the maximum voltage of the control signal,
D
CTL(MAX)
is the maximum duty cycle of the control signal,
V
D
is the diode forward voltage, I
LED(MAX)
is the maximum
LED current and I
LED(MIN)
is the minimum LED current. If
a PWM control signal is used, the signal frequency can be
in the range of 5.0 kHz to 30 kHz. It is recommended to
keep the input PWM frequency about 15 kHz to avoid
generating audio noise.
