- 您現在的位置：買賣IC網 > PDF目錄98215 > TFP501PZPG4 (TEXAS INSTRUMENTS INC) SPECIALTY CONSUMER CIRCUIT, PQFP100 PDF資料下載
參數資料
| 型號： | TFP501PZPG4 |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 消費家電 |
| 英文描述： | SPECIALTY CONSUMER CIRCUIT, PQFP100 |
| 封裝： | 14 X 14 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, HTQFP-100 |
| 文件頁數： | 3/24頁 |
| 文件大小： | 373K |
| 代理商： | TFP501PZPG4 |
TFP501
PanelBus HDCP DIGITAL RECEIVER
SLDS127B JULY 2001 REVISED AUGUST 2002
11
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

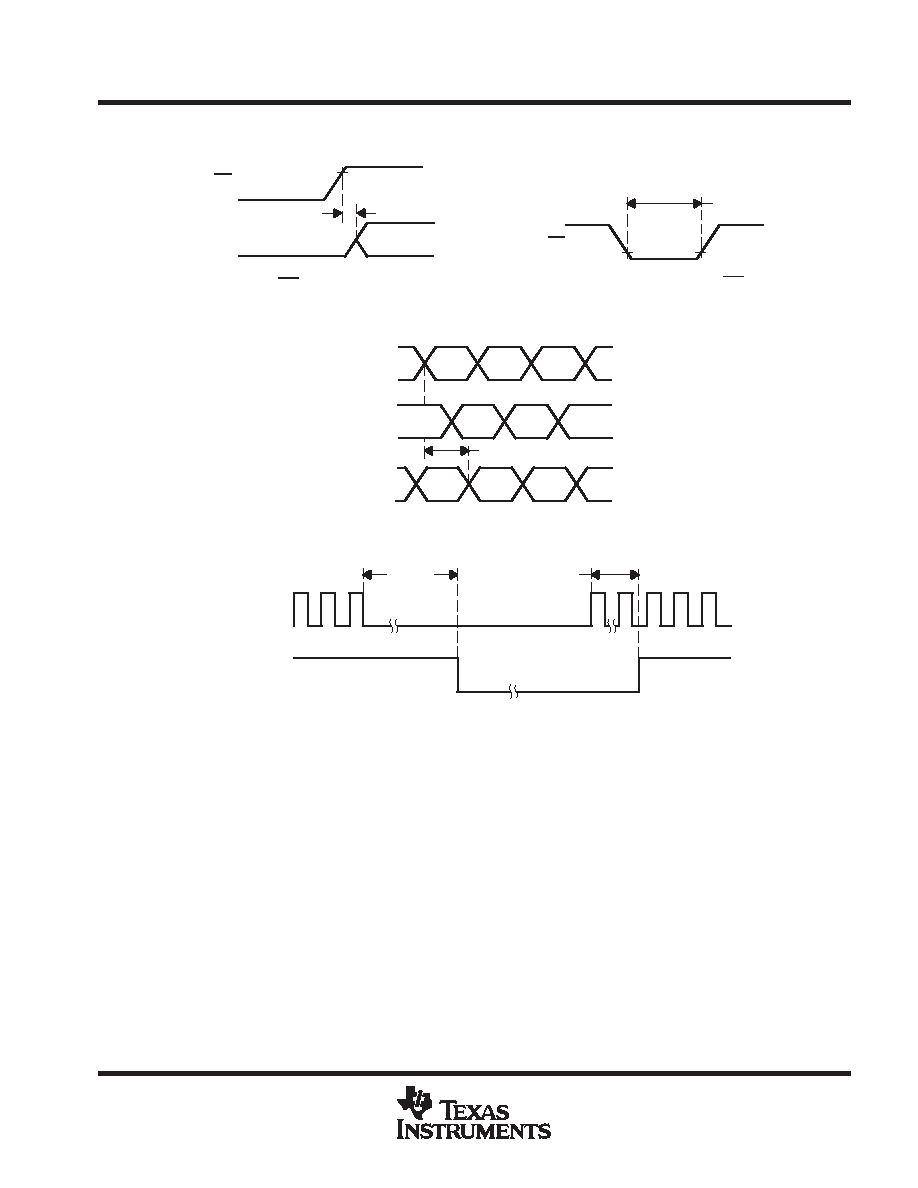

timing diagrams (continued)
Figure 9. Delay From PD Low to High Before
Inputs Are Active
Figure 10. Minimum Time PD Low
PD
DFO, ST, PIXS, STAG,
Rx[2:0]+, Rx[2:0],
OCK_INV
VIH
td(PDLA)
td(PDLM)
PD
VIL
tsk(CC)
50%
TX2
TX1
TX0
Figure 11. Analog Input Channel-to-Channel Skew
t(HSC)
t(FSC)
DE
SCDT
Figure 12. Time Between DE Transitions to SCDT Low and SCDT High
