TFP501
PanelBus HDCP DIGITAL RECEIVER
SLDS127B JULY 2001 REVISED AUGUST 2002
14
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
TFP501 clocking and data synchronization (continued)
The input clock to the TFP501 is conditioned by a PLL (phase-locked-loop) to remove high frequency jitter from
the clock. The PLL provides four 10x clock outputs of different phases to locate and sync the T.M.D.S. data
streams (4x oversampling). During the active display interval, the pixel data is encoded to be transition
minimized; whereas, during the blanking interval, the control data is encoded to be transition maximized. A
DVI-compliant transmitter is required to transmit during the blanking interval for a minimum period of time,
128-t(pixel), to ensure sufficient time for data synchronization when the receiver sees a transition maximized
code. Performing synchronization during the blanking interval, when the data is transition maximized, assures
reliable data bit boundary detection. Phase synchronization to the data streams is unique for each of the three
input channels and is maintained as long as the link remains active.
TFP501 T.M.D.S. input levels and input impedance matching
The T.M.D.S. inputs to the TFP501 receiver have a fixed single-ended input termination impedance to AVDD.
The TFP501 is internally optimized using a laser trim process to precisely fix the single-ended termination
impedance at 50
. This fixed impedance eliminates the need for external termination resistors while providing
optimum impedance matching to standard DVI cables having a characteristic impedance of 100
.
Figure 14 shows a conceptual schematic of a TFP510 transmitter and TFP501 receiver connection. The
TFP510 transmitter drives the twisted-pair cable via a current source, usually achieved with an open-drain type
output driver. The internal single-ended termination resistors, which are matched to the characteristic
impedance of the DVI cable, provide a pullup to AVDD. Naturally, when the transmitter is disconnected and the
TFP501 DVI inputs are left unconnected, the TFP501 receiver inputs are pulled up to AVDD. The single-ended
differential signal and full differential signal is shown in Figure 15. The TFP501 is designed to respond to
differential signal swings ranging from 150 mV to 1.56 V with common mode voltages ranging from
(AVDD300 mV) to (AVDD37 mV).
_
+
Internal
Termination at 50
AVCC
DVI-Compliant Cable
DATA
TI TFP501 Receiver
TI TFP510 Transmitter
Current
Source

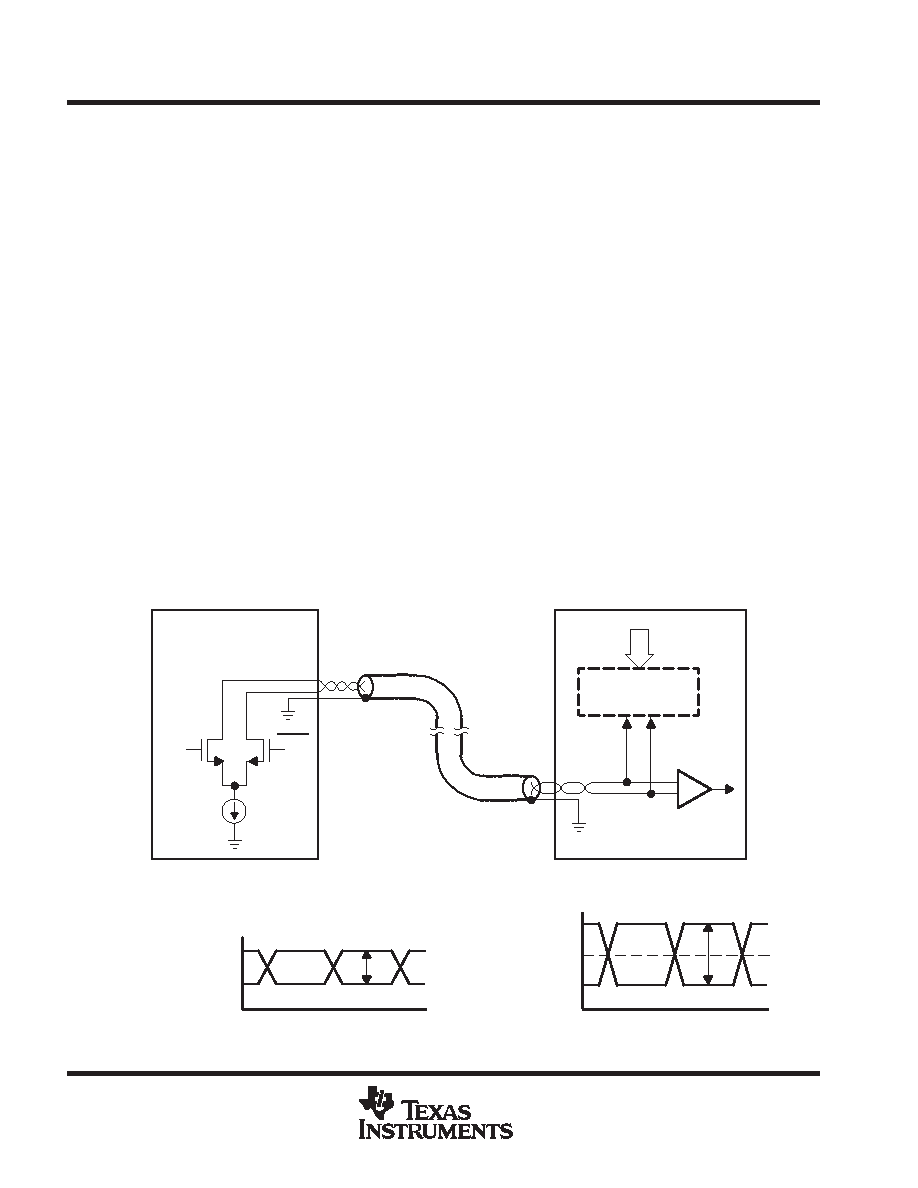

Figure 14. T.M.D.S. Differential Input and Transmitter Connection
1/2 VID
AVCC
AVCC - 1/2 VID
+ 1/2 VID
- 1/2 VID
VID
a ) Single-Ended Input Signal
b) Differential Input Signal
Figure 15. T.M.D.S. Inputs
