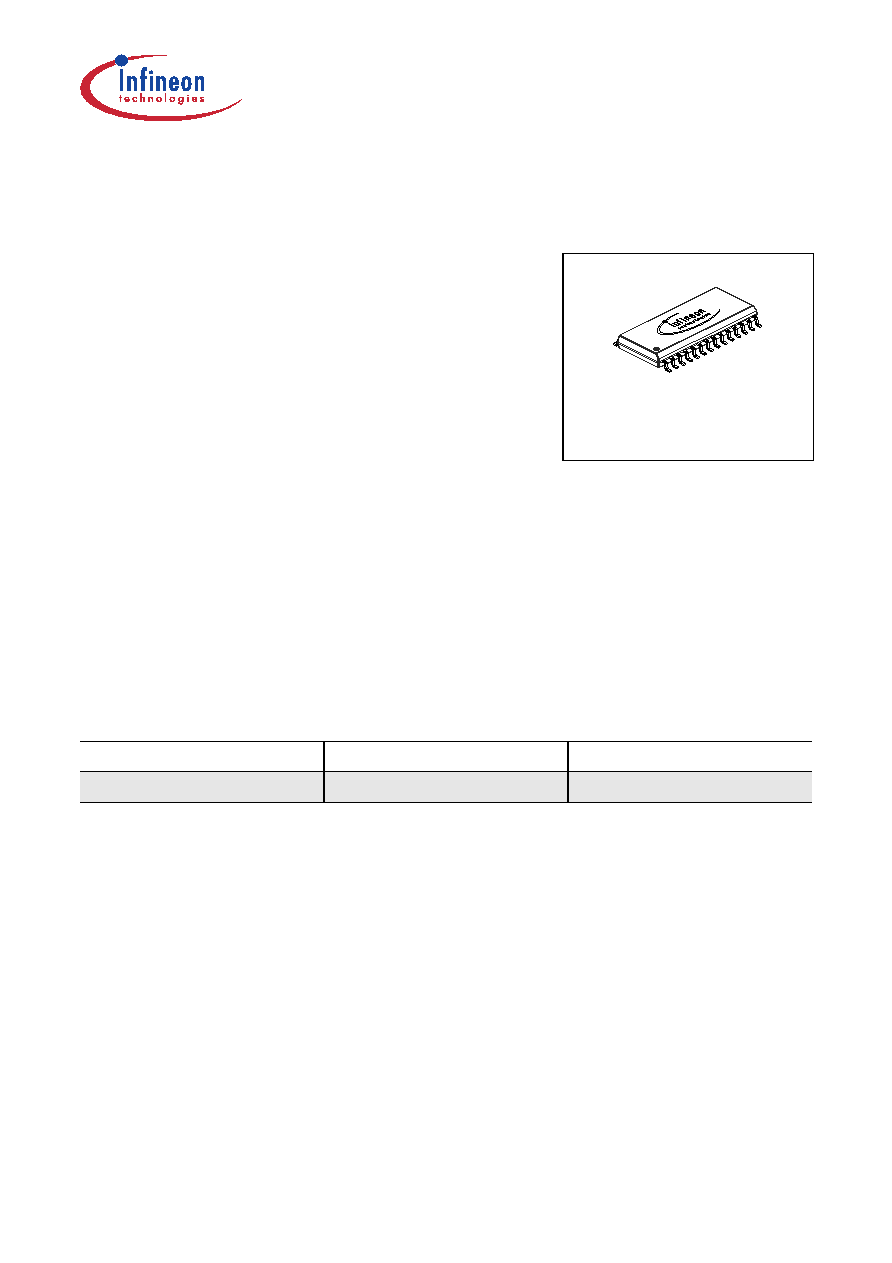

P-DSO-28-18
Enhanced Power
System Basis Chip
TLE 6266 G
Version 2.21
3
July 29th, 2005
Datasheet
1Features
Standard Fault Tolerant differential CAN-Transceiver
Bus Failure Management
Low current consumption mode < 70A
CAN Data Transmission Rate up to 125 kBaud
Low-Dropout Voltage Regulator 5V ± 2%
Two Low Side Switches
Three High Side Switches with internal Charge Pump
Power On and Under-Voltage Reset Generator
Vcc Supervisor
Window Watchdog
Flash Program Mode
Programable Cyclic Wake Timing via SPI
Integrated Fail-Safe Mechanism
Standard 16 bit SPI-Interface
Wide Input Voltage and Temperature Range
Thermal Protection
Enhanced Power P-DSO-Package
Wakeup Input Pin
2
Description
The TLE 6266 G is a monolithic integrated circuit in an enhanced power P-DSO-28-18
package, which incorporates a failure tolerant low speed CAN-transceiver for differential
mode data transmission, a low dropout voltage regulator for internal and external 5V
supply as well as a 16 bit SPI interface to control and monitor the IC. Further there are
integrated additional features like three high side switches, two low side switches, a
window watchdog circuit and a reset circuit. The IC offers a low current consumption
mode, that reduces the current to typ. 70A.
The IC is designed to withstand the severe conditions of automotive applications and is
optimized for low-speed data transmission (up to 125 kBaud).
Type
Ordering Code
Package
TLE 6266 G
on request
P-DSO-28-18
