參數資料
| 型號： | TMC2360KLC |
| 廠商： | FAIRCHILD SEMICONDUCTOR CORP |
| 元件分類： | 顏色信號轉換 |
| 英文描述： | COLOR SIGNAL ENCODER, PQFP80 |
| 封裝： | 2.70 MM HEIGHT, MQFP-80 |
| 文件頁數： | 18/24頁 |
| 文件大小： | 158K |
| 代理商： | TMC2360KLC |
PRODUCT SPECIFICATION
TMC2360
3

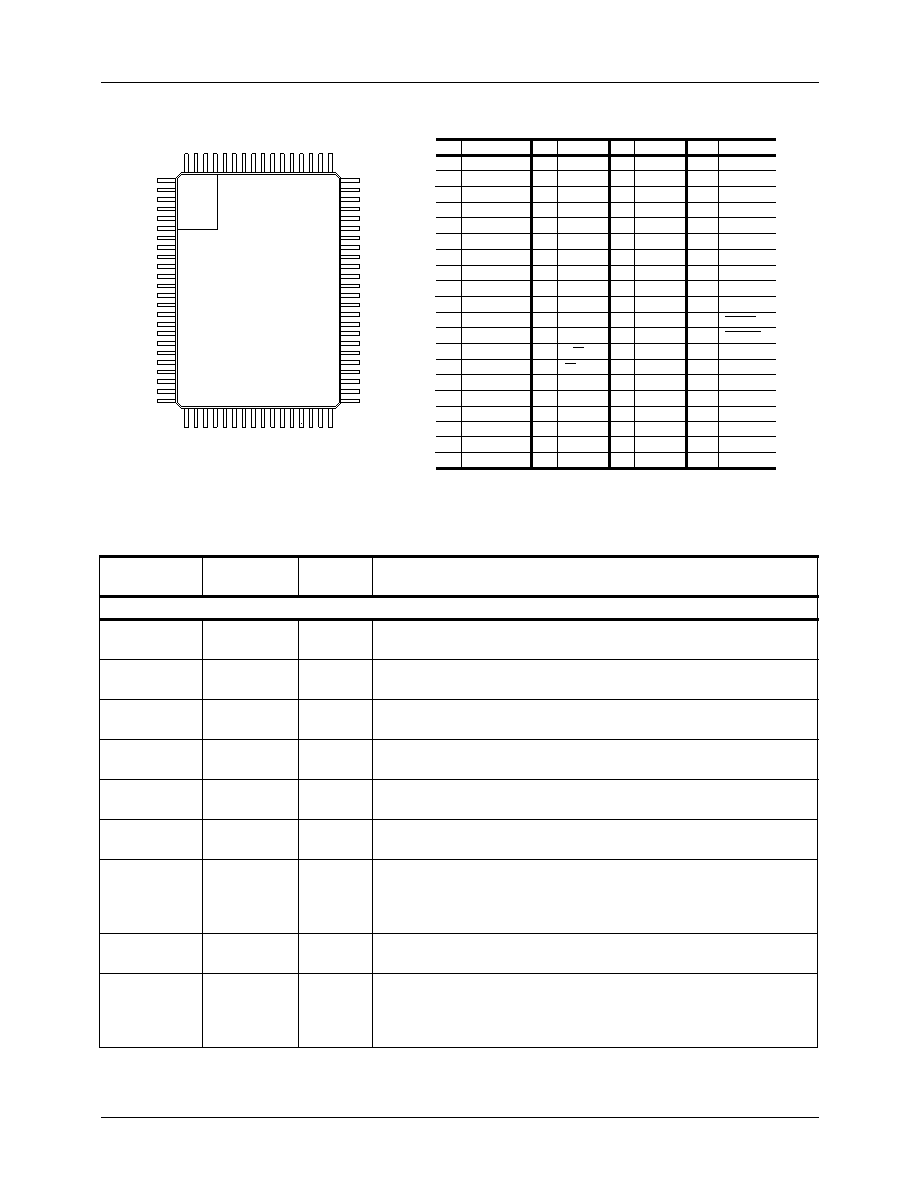

Pin Assignments – 80-Lead MQFP Package (KL)
Pin Descriptions
Pin Name
Pin Number
Type/
Value
Pin Function Description
Clocks
ADCLK
13
TTL
A/D Converter Clock Output. Generated by an internal phase-
locked loop slaved to VGAHS.
ADIVN
16
TTL
Internal ADCLK divided by N Output. Enabled by A0 and A1 pins
according to Table 1 or by VGA Control Register 1.
LPFA
64
—
A/D PLL Loop Filter Connection. An external RC network is
connected here.
PXCK
12
TTL
Encoder Clock Output. Generated by an internal phase-locked loop
slaved to VGAHS.
PDIVM
17
TTL
Internal PXCK divided by M Output. Enabled by A0 and A1 pins
according to Table 1 or by VGA Control Register 1.
LPFP
67
—
Encoder PLL Loop Filter Connection. An external RC network is
connected here.
XTAL1-2
70, 69
—
Subcarrier Reference Crystal/Clock. Connection terminals for an
external 27 MHz crystal. Alternatively, the XTAL1 pin may be used as
an input from an external oscillator or clock. Subcarrier frequency
accuracy is based on this clock.
27MHZ
11
TTL
Subcarrier Reference Clock Output. Buffered TTL output from
27MHz crystal oscillator/reference clock.
VGAHS
46
CMOSS
VGA Horizontal Sync. Incoming VGA sync may be of either polarity
(active LOW or active HIGH). VGAHS frequency must be within 2%
of the nominal specified value. The VGAHS pin has a light pull-up and
a Schmitt trigger.
AGND
COMPOSITE
RREF
VREF
DGND
PHASE
VDD
DGND
VDD
DGND
27MHZ
PXCK
ADCLK
VDD
DGND
ADIVN
PDIVM
D7
D6
D5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
D4
D3
D2
D1
D0
VSOUT
HSOUT
DGND
VDD
MPEN
A1
A0
R/W
CE
VDD
DGND
BLUE
BLANK
TVSTD1
TVSTD0
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Pin
Name
Pin
Name
PAL800
FIL
DPMS
VSCOM
VGAVS
VGAHS
POSR
POSD
AGND
B
VDDA
G
AGND
VRT
VTOUT
VTIN
AGND
R
VDDA
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
DGND
VDD
AGND
LPFA
VDDPLLA
AGND
LPFP
VDDPLLP
XTAL2
XTAL1
RESET
PWRDN
SVIDEN
CVIDEN
VDDA
CBYPR
CHROMA
AGND
LUMA
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
Pin Name
Pin
Name
1
24
25
40
65-3687-06
41
64
65
80
