參數資料
| 型號： | TPA2026D2YZHR |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 音頻／視頻放大 |
| 英文描述： | AUDIO AMPLIFIER, PBGA16 |
| 封裝： | 2.20 X 2.20 MM, GREEN, DSBGA-16 |
| 文件頁數： | 17/39頁 |
| 文件大小： | 823K |
| 代理商： | TPA2026D2YZHR |
第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁第15頁第16頁當前第17頁第18頁第19頁第20頁第21頁第22頁第23頁第24頁第25頁第26頁第27頁第28頁第29頁第30頁第31頁第32頁第33頁第34頁第35頁第36頁第37頁第38頁第39頁
A6
A5
A4
A3
A2
A1
A0
R/W ACK A7
A6
A5
A4
A3
A2
A1
A0 ACK
D7
D6
D5
D4
D3
D2
D1
D0
ACK
Start
Condition
Stop
Condition
Acknowledge
I2CDeviceAddressand
Read/WriteBit
Register
DataByte
SLOS649A – MARCH 2010 – REVISED JANUARY 2011
www.ti.com
SINGLE-BYTE WRITE
As Figure 43 shows, a single-byte data write transfer begins with the master device transmitting a start condition
followed by the I2C device address and the read/write bit. The read/write bit determines the direction of the data
transfer. For a write data transfer, the read/write bit must be set to '0'. After receiving the correct I2C device
address and the read/write bit, the TPA2026D2 responds with an acknowledge bit. Next, the master transmits the
register byte corresponding to the TPA2026D2 internal memory address being accessed. After receiving the
register byte, the TPA2026D2 again responds with an acknowledge bit. Next, the master device transmits the
data byte to be written to the memory address being accessed. After receiving the register byte, the TPA2026D2
again responds with an acknowledge bit. Finally, the master device transmits a stop condition to complete the
single-byte data write transfer.

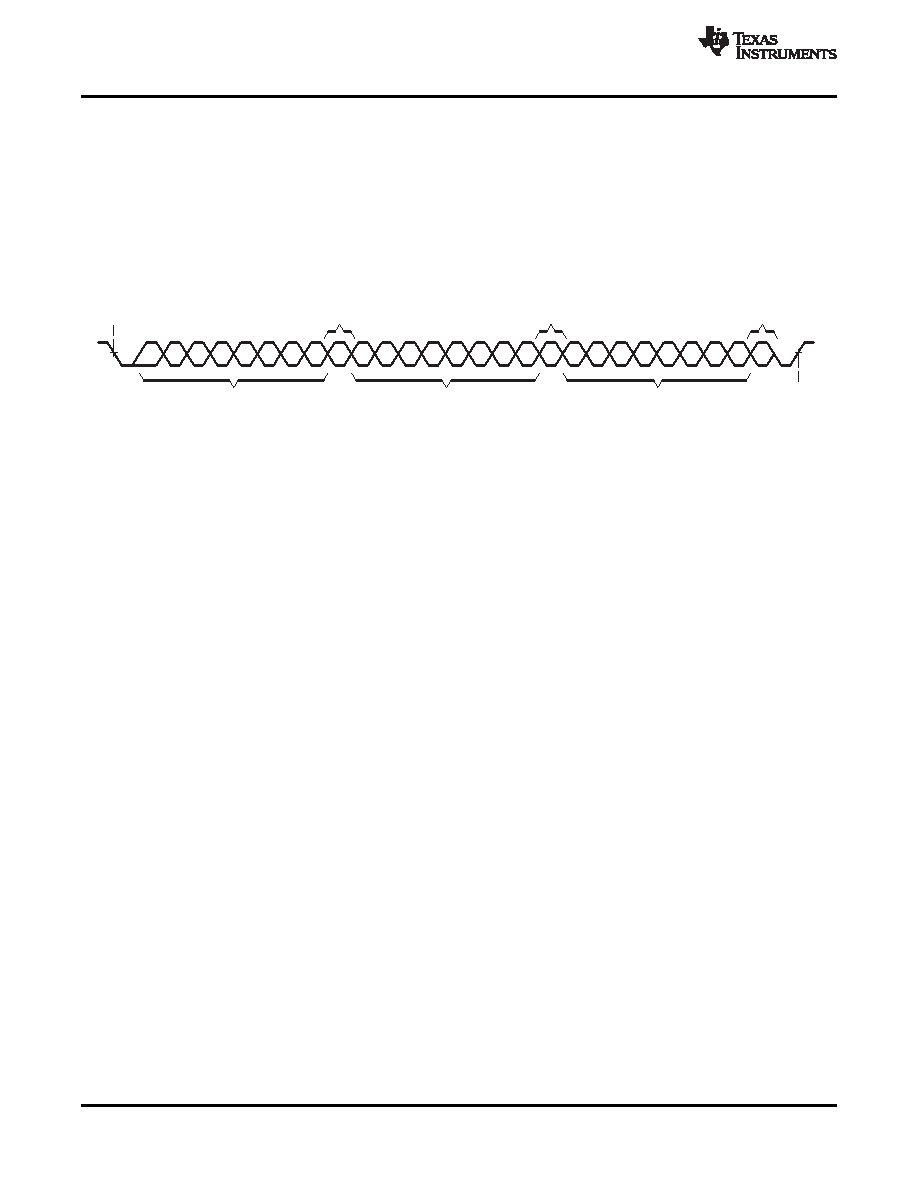

Figure 43. Single-Byte Write Transfer
24
Copyright 2010–2011, Texas Instruments Incorporated
Product Folder Link(s): TPA2026D2
