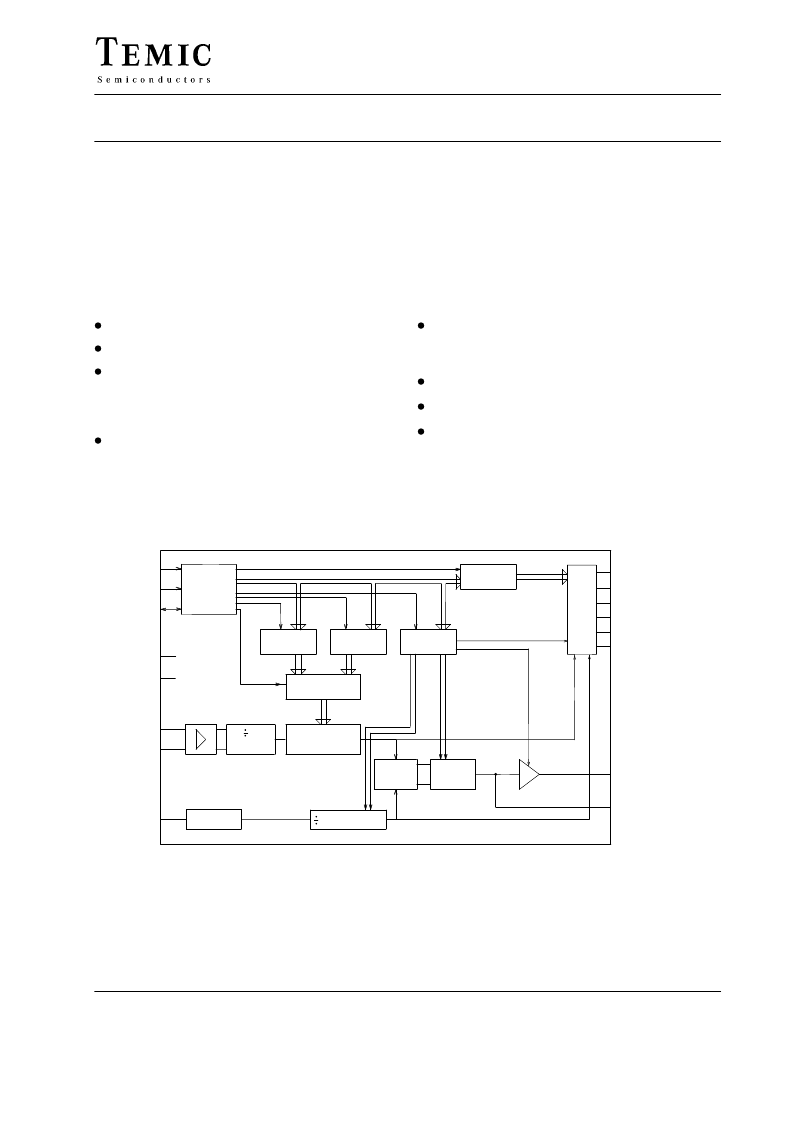

U6220B
Preliminary Information
TELEFUNKEN Semiconductors
Rev. A2, 23-Sep-96
1 (14)
1.3 GHz PLL for TV- and VCR- Tuner
Description
The U6220B is a single chip frequency synthesizer with
I
2
C bus and 3-wire bus control (universal bus). This IC
contains a high frequency prescaler, a crystal oscillator,
a switchable reference divider, 5 open collector switching
outputs and an additional mixer switch output for band
switching. The U6220B is especially designed for low
cost, high performance 2-band and EasyLink tuners
(please see application note ANT017 ‘Semiconductors
for TV Tuners - The New EasyLink Concept’).
Features
1.3 GHz divide-by-8 prescaler integrated
EasyLink interface to MOSMIC and mixer IC
Universal bus:
I
2
C bus or 3-wire bus
I
2
C bus software compatible to U6204B
3-wire bus software compatible to U6359B (18 bit)
I
2
C bus mode:
5 port outputs (open collector)
4 addresses selectable at Pin 3 for multituner
application
3-wire bus mode:
4 port outputs (open collector)
Lock-signal output (open collector)
Low power consumption (typ. 5 V / 20 mA)
Electrostatic protection according to MIL-STD 883
SO16 small package
Block Diagram
VHF
Universal bus
control
SCL
SDA
5 bit latch
Ports
6 bit latch
8 bit latch
7 bit latch
15 bit latch
PD
15 bit counter
RFi
Phase
detector
Charge
pump
VD
256 / 512 / 1024
Oscillator
6
9
10
4
5
1
14
13
16
12
15
2
Vs
Prescaler
GND
CRYSTAL
T1
OS
T0
5I
8
7
8
11
AS / ENA
3
( I2
3–wire bus)
RD1
RD2
FPRD
FRFD
VHF L/H
UHF
P6 / Lock
FM Trap
MS
12426
Figure 1. Block diagram
