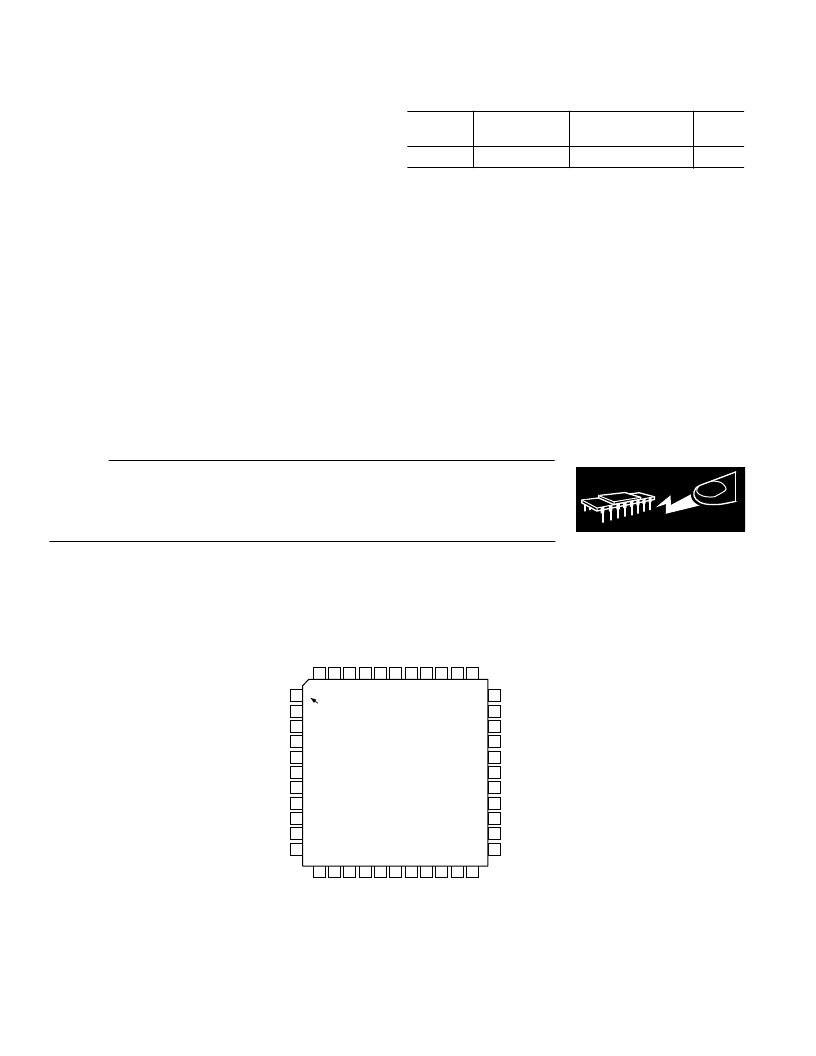

AD7723
–8–
REV. 0
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection.
Although the AD7723 features proprietary ESD protection circuitry, permanent damage may
occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
precautions are recommended to avoid performance degradation or loss of functionality.
ABSOLUTE MAXIMUM RATINGS*
(T
A
= +25
°
C unless otherwise noted)
DV
DD
to DGND . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to +7 V
AV
DD
, AV
DD1
to AGND . . . . . . . . . . . . . . . . . –0.3 V to +7 V
AV
DD
, AV
DD1
to DV
DD
. . . . . . . . . . . . . . . . . . . –1 V to +1 V
AGND, AGND1 to DGND . . . . . . . . . . . . –0.3 V to +0.3 V
Digital Inputs to DGND . . . . . . . . . –0.3 V to DV
DD
+ 0.3 V
Digital Outputs to DGND . . . . . . . . –0.3 V to DV
DD
+ 0.3 V
VIN(+), VIN(–) to AGND . . . . . . . . –0.3 V to AV
DD
+ 0.3 V
REF1 to AGND . . . . . . . . . . . . . . . . –0.3 V to AV
DD
+ 0.3 V
REF2 to AGND . . . . . . . . . . . . . . . . –0.3 V to AV
DD
+ 0.3 V
Operating Temperature Range . . . . . . . . . . –40
°
C to +85
°
C
Storage Temperature Range . . . . . . . . . . . . –65
°
C to +150
°
C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . +150
°
C
θ
JA
Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . 95
°
C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . +215
°
C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . +220
°
C
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
ORDERING GUIDE
Temperature
Range
–40
°
C to +85
°
C Plastic Quad Flatpack S-44
Package
Description
Package
Option
Model
AD7723BS
PIN CONFIGURATION
44-Lead PQFP Package
12 13 14 15 16 17 18 19 20 21 22
3
4
5
6
7
1
2
10
11
8
9
40 39 38
41
42
43
44
36 35 34
37
PIN 1
TOP VIEW
(Not to Scale)
29
30
31
32
27
28
25
26
23
24
33 SCR/DB13
DGND/DB14
D
DGND/DB15
S
DV
DD
/
CS
SYNC
F
S
DGND
D
D
STBY
S
A
D
F
C
T
X
S
X
S
H
A
DGND/DB2
DGND/DB1
DGND/DB0
CFMT/
RD
DGND/
DRDY
DGND
MODE2
MODE1
AGND1
AGND1
AV
DD1
AV
DD
AGND
UNI
REF2
V
V
R
A
AD7723
D
WARNING!
ESD SENSITIVE DEVICE
