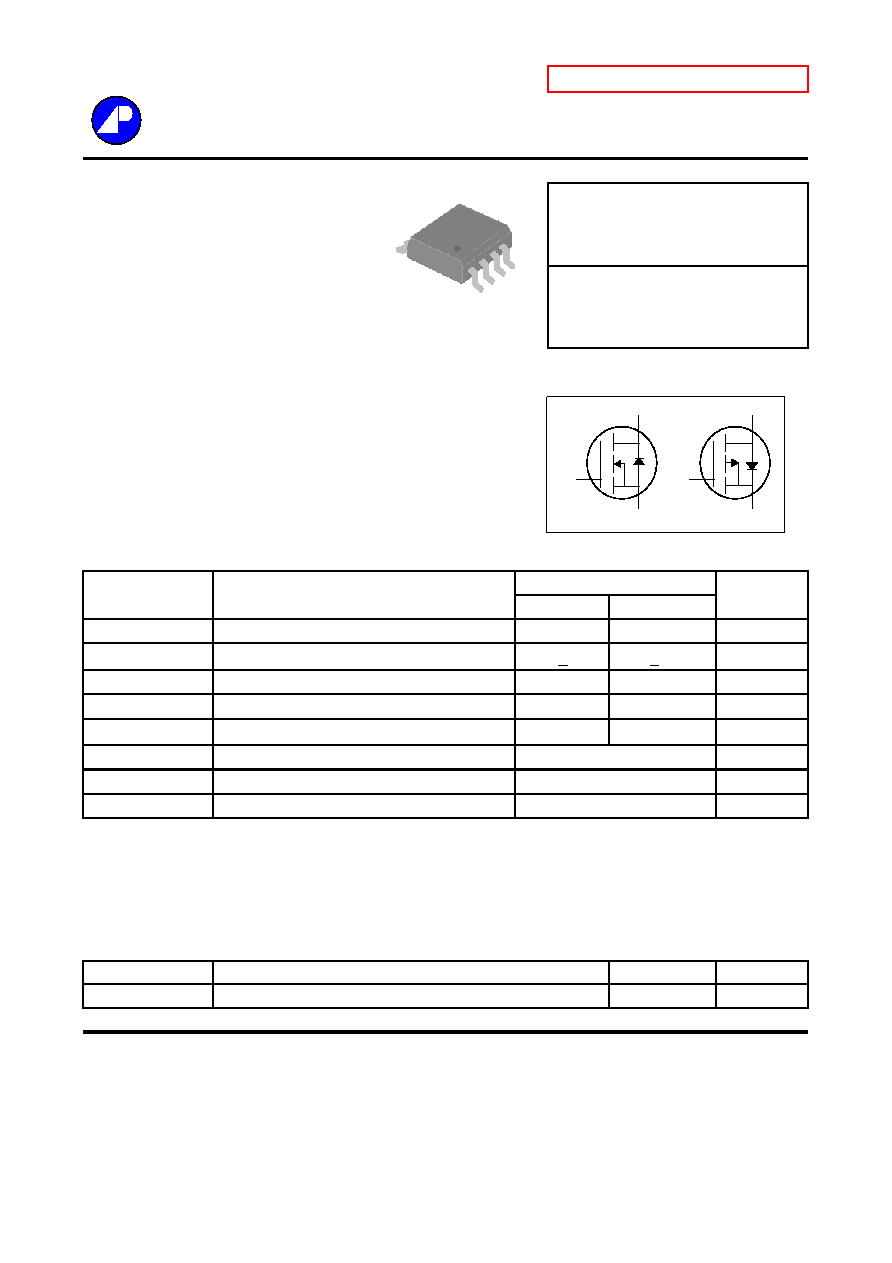

Advanced Power
N AND P-CHANNEL ENHANCEMENT
Electronics Corp.
MODE POWER MOSFET
▼ Simple Drive Requirement
N-CH BVDSS
30V
▼ Lower Gate Charge
RDS(ON)
18mΩ
▼ Fast Switching Performance
ID
8.2A
▼ RoHS Compliant & Halogen-Free
P-CH BVDSS
-30V
RDS(ON)
29mΩ
Description
ID
-6.6A
Absolute Maximum Ratings
Symbol
Parameter
Rating
Units
N-channel
P-channel
VDS
Drain-Source Voltage
30
-30
V
VGS
Gate-Source Voltage
+20
V
ID@TA=25℃
Continuous Drain Current
3
8.2
-6.6
A
ID@TA=70℃
Continuous Drain Current
3
6.6
-5.3
A
IDM
Pulsed Drain Current
1
30
-30
A
PD@TA=25℃
Total Power Dissipation
W
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Symbol
Value
Unit
Rthj-a
Maximum Thermal Resistance, Junction-ambient
3
62.5
℃
/W
Data and specifications subject to change without notice
200907032
Parameter
1
Thermal Data
AP4503BGM-HF
2
Halogen-Free Product
G2
D2
S2
G1
D1
S1
S1
G1
S2
G2
D1
D2
SO-8
Advanced Power MOSFETs from APEC provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and cost-
effectiveness.
The SO-8 package is widely preferred for commercial-industrial
surface mount applications and suited for low voltage applications
such as DC/DC converters.
