Philips Semiconductors
ISP1181
Full-speed USB interface
Objective specification
Rev. 01 — 13 March 2000
43 of 69
9397 750 06896
Philips Electronics N.V. 2000. All rights reserved.
In ‘suspend’ state the normal CLKOUT signal is not available, because the crystal
oscillator and the PLL are switched off to save power. Instead, the CLKOUT signal
can be switched to the LazyClock frequency of 24 kHz.
The oscillator operation and the CLKOUT frequency are controlled via the Hardware
Configuration Register, as shown in
Figure 14
. The following bits are involved:
CLKRUN switches the oscillator on and off
CLKDIV[3:0] is the division factor determining the normal CLKOUT frequency
NOLAZY controls the LazyClock signal output during ‘suspend’ state.
When ISP1181 enters ‘suspend’ state (by setting and clearing bit GOSUSP in the
Mode Register), outputs SUSPEND and CLKOUT change state after approximately
2 ms delay. When NOLAZY = 0 the clock signal on output CLKOUT does not stop, but
changes to the 24 kHz LazyClock frequency.
When resuming from ‘suspend’ state by a positive pulse on input WAKEUP, output
SUSPEND is cleared and the clock signal on CLKOUT restarted after a 0.5 ms delay.
The timing of the CLKOUT signal at ‘suspend’ and ‘resume’ is given in
Figure 15
.

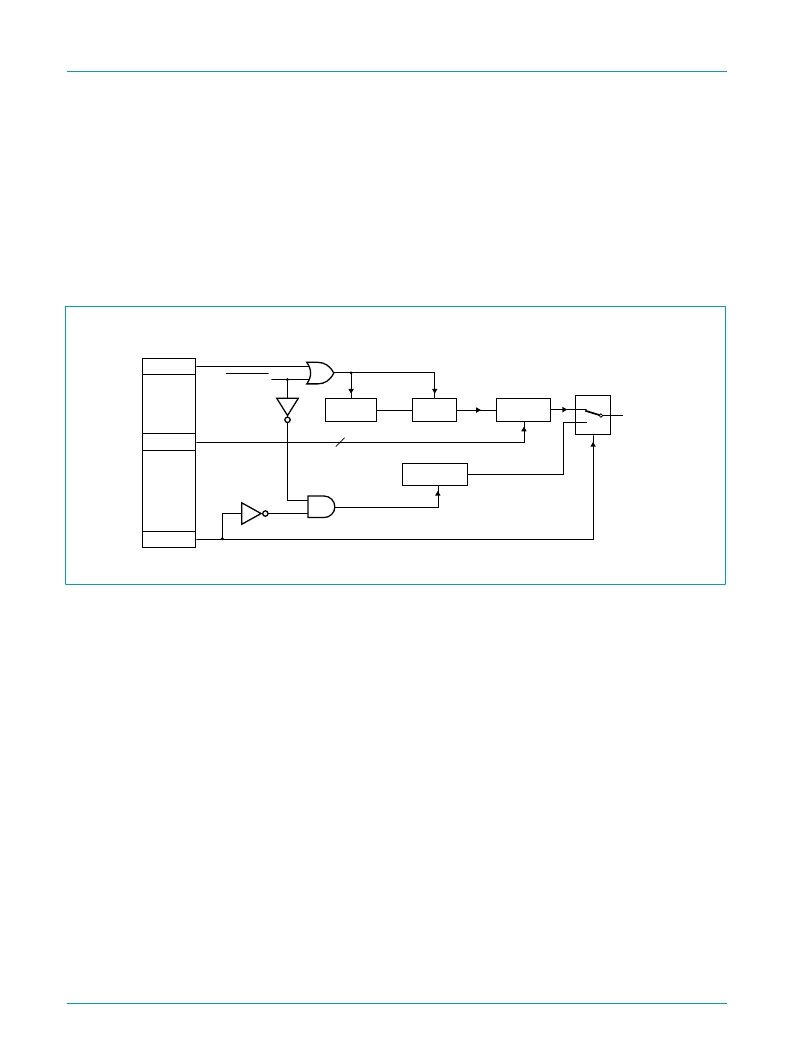

Fig 14. Oscillator and LazyClock logic.
handbook, full pagewidth
MGS775
CLKRUN
register
CKDIV[3:0]
NOLAZY
÷
(N + 1)
1
0
N
PLL 8
×
XTAL OSC
LAZYCLOCK
enable
enable
4
NOLAZY
CLKOUT
enable
6 MHz
48 MHz
SUSPEND
.
.
24 kHz
