MRF21120R6
RF Device Data
Freescale Semiconductor

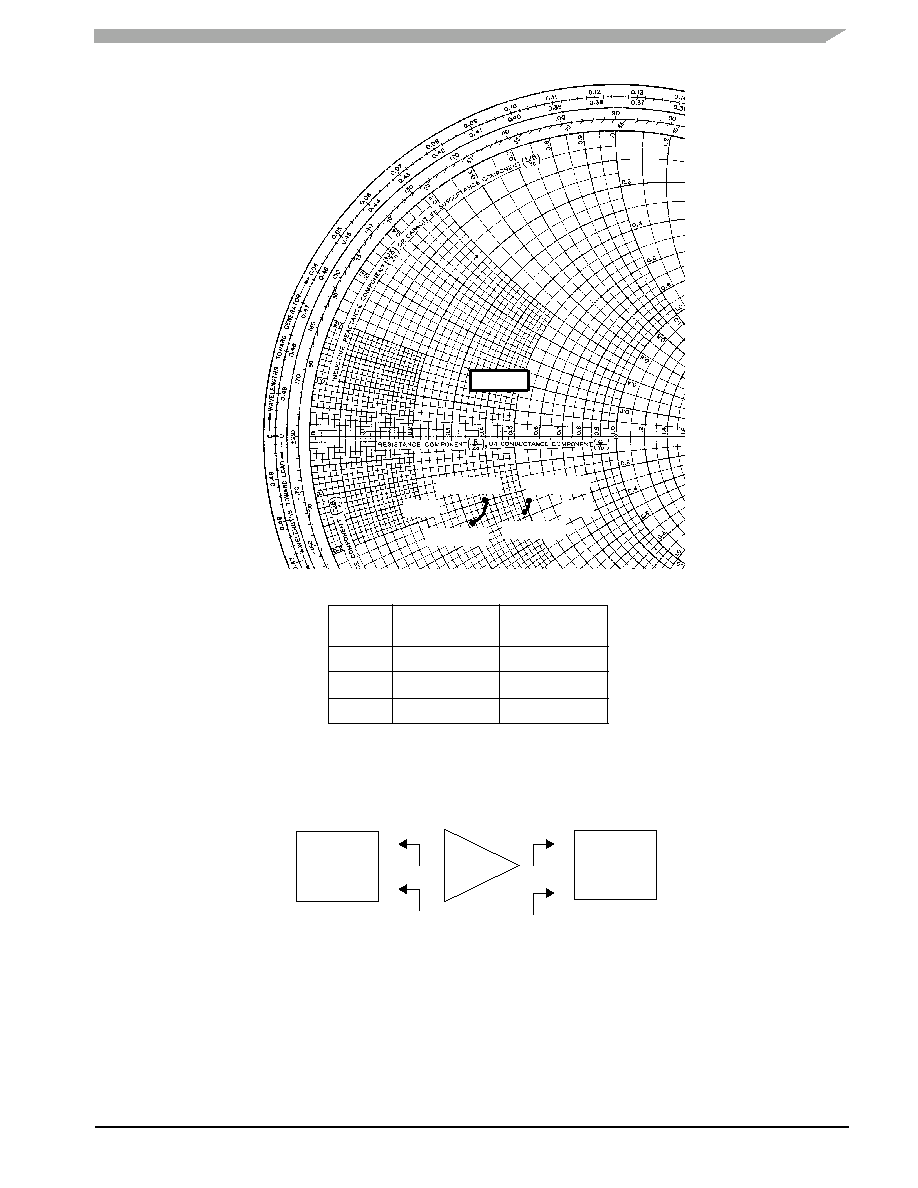

Figure 9. Series Equivalent Source and Load Impedance
f
MHz
Zsource
Ω
Zload
Ω
2110
2140
2170
3.7 - j2.0
3.1 - j2.5
3.5 - j2.4
4.9 - j2.8
5.1 - j2.7
5.2 - j2.5
VDD = 28 V, IDQ = 1000 mA, Pout = 120 W PEP
f = 2170 MHz
Zo = 10 Ω
Zsource
Zload
f = 2170 MHz
Zsource = Test circuit impedance as measured from
gate to gate, balanced configuration.
Zload
= Test circuit impedance as measured
from drain to drain, balanced configuration.
Z source
Z load
Input
Matching
Network
Device
Under
Test
Output
Matching
Network
+
f = 2110 MHz
