MRF21125R3 MRF21125SR3
RF Device Data
Freescale Semiconductor

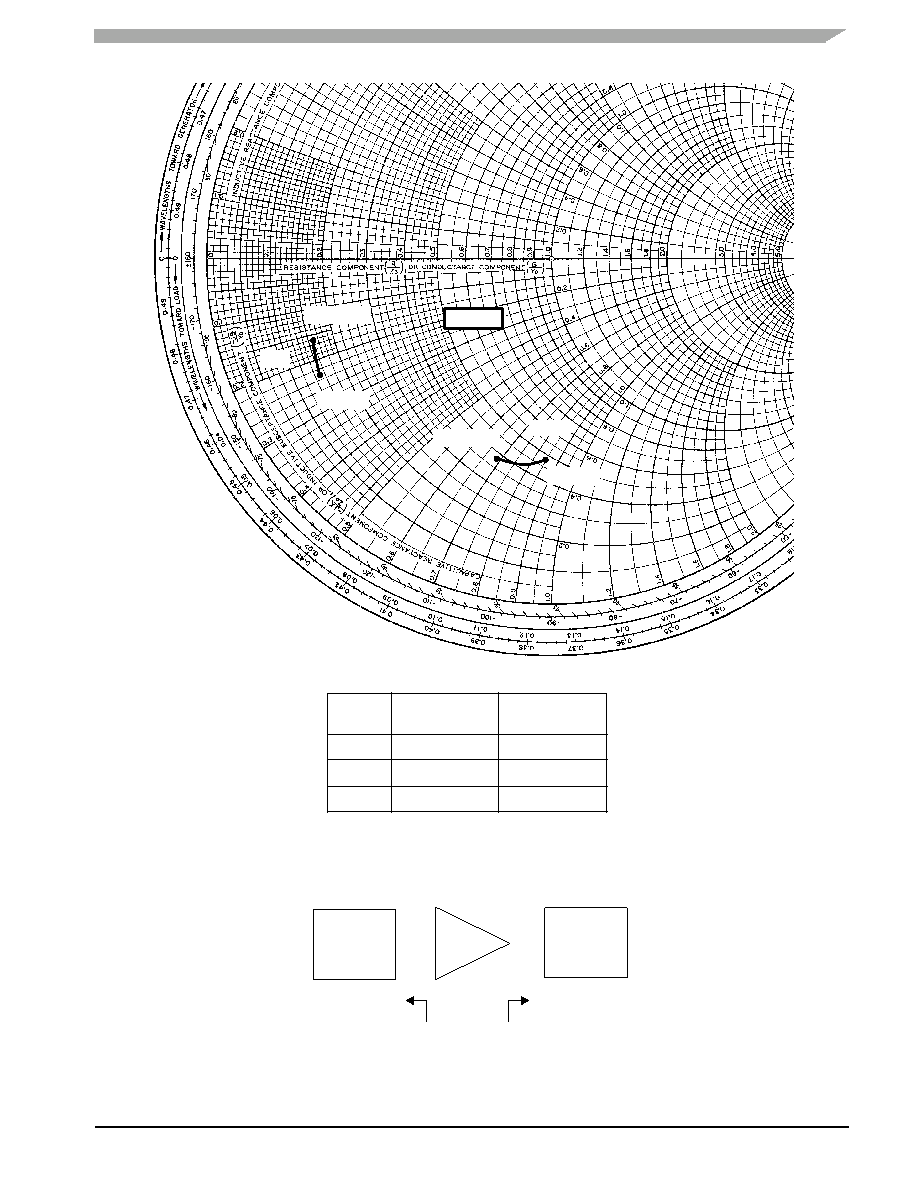

Figure 9. Series Equivalent Source and Load Impedance
f
MHz
Zsource
Ω
Zload
Ω
2110
2140
2170
3.81 - j6.86
4.84 - j8.46
4.33 - j7.90
1.56 - j1.58
1.53 - j1.90
1.48 - j2.26
VDD = 28 V, IDQ = 1600 mA, Pout = 20 W (Avg.), 2Carrier WCDMA
Zo = 10 Ω
2170 MHz
f = 2110 MHz
2170 MHz
f = 2110 MHz
Zsource
Zload
Zsource = Test circuit impedance as measured from
gate to ground.
Zload
= Test circuit impedance as measured
from drain to ground.
Z source
Z load
Input
Matching
Network
Device
Under Test
Output
Matching
Network
