www.ti.com
DIGITAL AUDIO DATA SERIAL INTERFACE
RIGHT JUSTIFIED MODE
BCLK
WCLK
SDIN/
SDOUT
1
0
1
0
1/fs
LSB
MSB
LeftChannel
RightChannel
2
n1
n3
n2
n1
n3
n2
SLAS479B – AUGUST 2005 – REVISED AUGUST 2006
OVERVIEW (continued)
Similarly, in the case of an I2C register read, after the device has sent out the 8-bit data from the addressed
register, if the master issues a ACKNOWLEDGE, the slave takes over control of SDA bus and transmit for the
next 8 clocks the data of the next incremental register.
Audio data is transferred between the host processor and the TLV320AIC32 via the digital audio data serial
interface, or audio bus. The audio bus of the TLV320AIC32 can be configured for left or right justified, I2S, DSP,
or TDM modes of operation, where communication with standard telephony PCM interfaces is supported within
the TDM mode. These modes are all MSB-first, with data width programmable as 16, 20, 24, or 32 bits. In
addition, the word clock (WCLK) and bit clock (BCLK) can be independently configured in either Master or Slave
mode, for flexible connectivity to a wide variety of processors
The word clock (WCLK) is used to define the beginning of a frame, and may be programmed as either a pulse
or a square-wave signal. The frequency of this clock corresponds to the maximum of the selected ADC and DAC
sampling frequencies.
The bit clock (BCLK) is used to clock in and out the digital audio data across the serial bus. When in Master
mode, this signal can be programmed in two further modes: continuous transfer mode, and 256-clock mode. In
continuous transfer mode, only the minimal number of bit clocks needed to transfer the audio data are
generated, so in general the number of bit clocks per frame will be two times the data width. For example, if data
width is chosen as 16-bits, then 32 bit clocks will be generated per frame. If the bit clock signal in master mode
will be used by a PLL in another device, it is recommended that the 16-bit or 32-bit data width selections be
used. These cases result in a low jitter bit clock signal being generated, having frequencies of 32
×Fs or 64×Fs.
In the cases of 20-bit and 24-bt data width in master mode, the bit clocks generated in each frame will not all be
of equal period, due to the device not having a clean 40
×Fs or 48×Fs clock signal readily available. The average
frequency of the bit clock signal is still accurate in these cases (being 40
×Fs or 48×Fs), but the resulting clock
signal has higher jitter than in the 16-bit and 32-bit cases.
In 256-clock mode, a constant 256 bit clocks per frame are generated, independent of the data width chosen.
The TLV320AIC32 further includes programmability to tri-state the DOUT line during all bit clocks when valid
data is not being sent. By combining this capability with the ability to program at what bit clock in a frame the
audio data will begin, time-division multiplexing (TDM) can be accomplished, resulting in multiple codecs able to
use a single audio serial data bus.
When the audio serial data bus is powered down while configured in master mode, the pins associated with the
interface will be put into a tri-state output condition.
In right-justified mode, the LSB of the left channel is valid on the rising edge of the bit clock preceding the falling
edge of word clock. Similarly, the LSB of the right channel is valid on the rising edge of the bit clock preceding
the rising edge of the word clock.

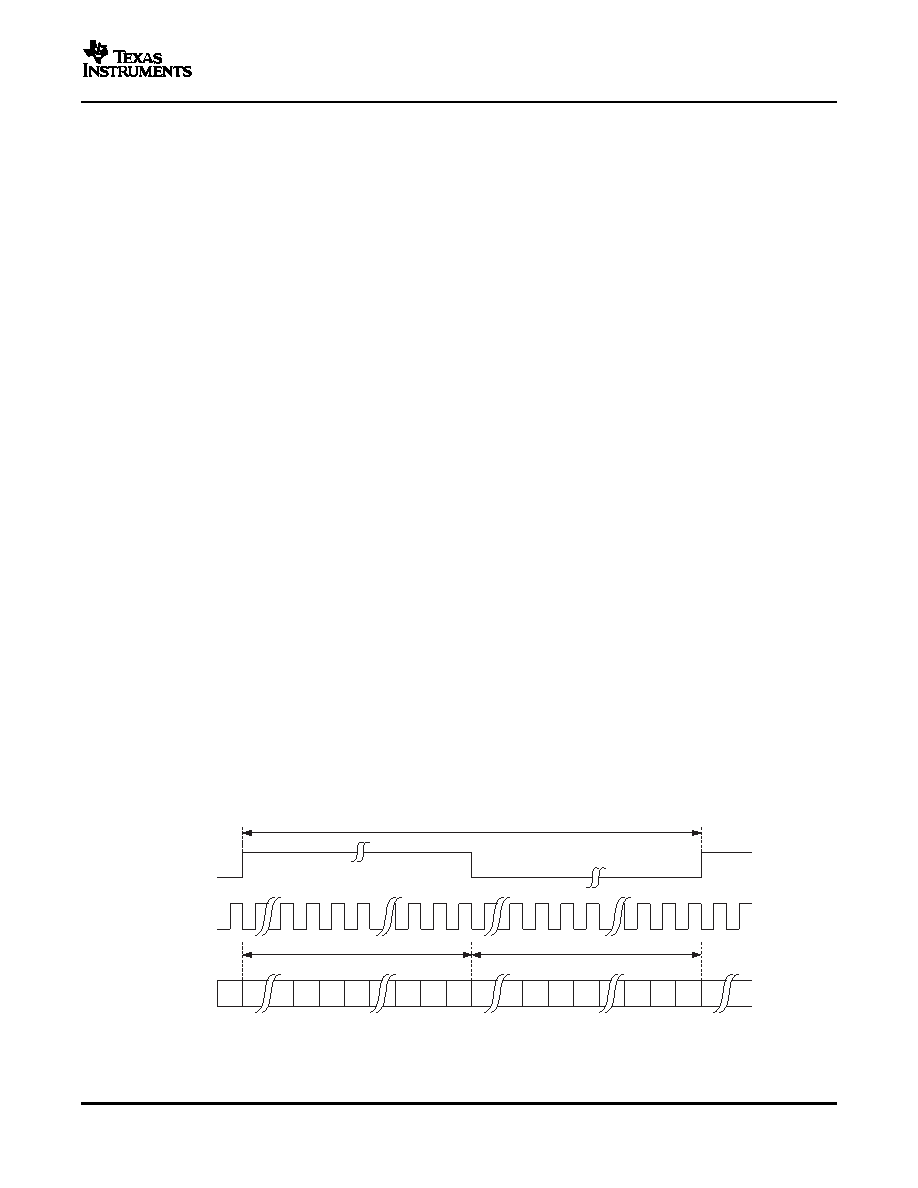

Figure 19. Right Justified Serial Bus Mode Operation
19
