V
SLEW
+
–
R
DROOP
+
PWM
Comparator
R
DS(on)
G
MV
= 1 mS
Driver
L
OUT
ESR
C
OUT
R
OUT
UDG-10188
R
LOAD
8 kW
+
–
+
G
MC
= 1 mS
VREF
UDG-11080
Droop
I
LOAD
V
OUT
setpoint at 0 A
Maximum undershoot voltage =(5%–1%) x 1 = 4% x V
OUT
Load insertion
Load release
Non-
Droop
Maximum transient voltage
= (5%–1%) x 2 = 8% x V
OUT
V
OUT
setpoint at 6 A
V
OUT
setpoint at 0 A
Maximum overshoot voltage =(5%–1%) x 1 = 4% x V
OUT
SLUSAH9
– MARCH 2011

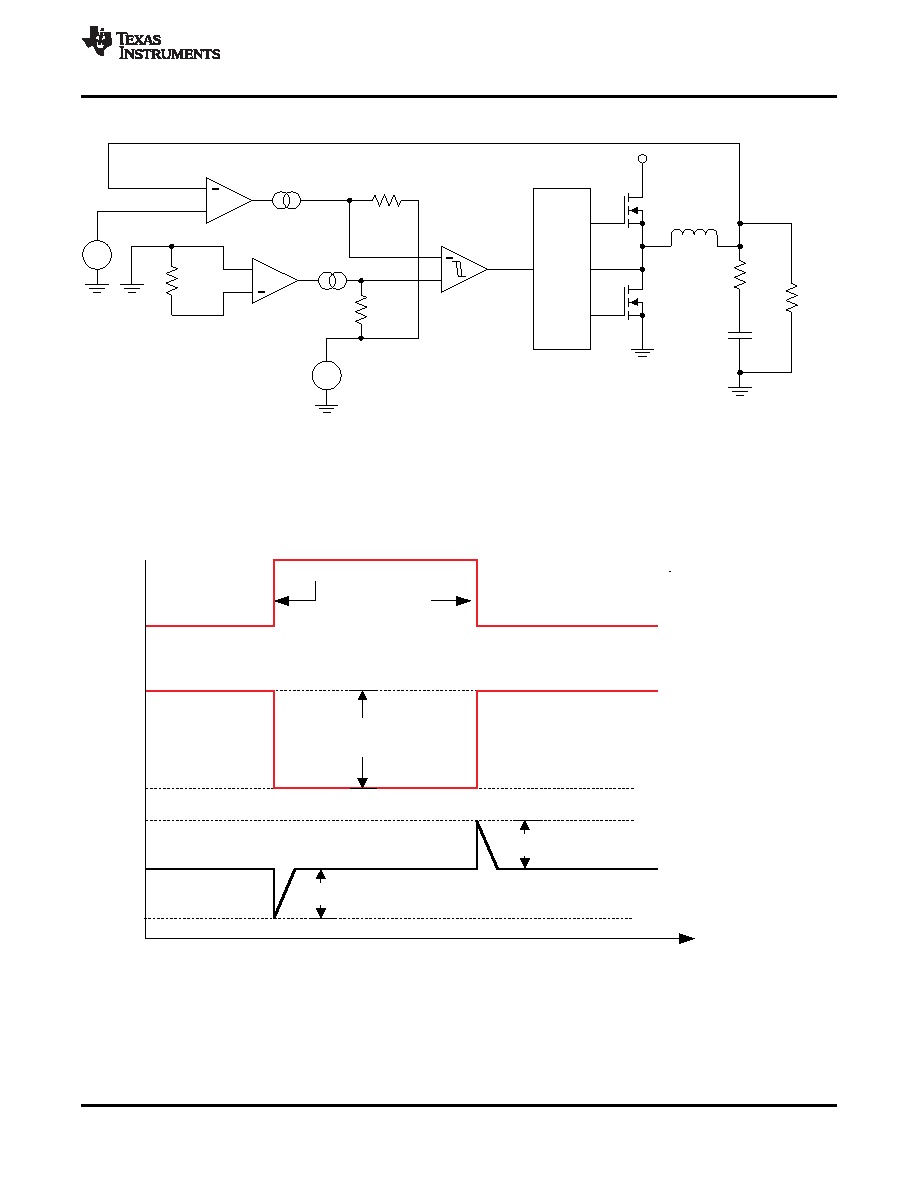

Figure 7 shows the basic implementation of the droop mode using the TPS51317.
Figure 7. DROOP Mode Basic Implementation
The droop (voltage positioning) method was originally recommended to reduce the number of external output
capacitors required. The effective transient voltage range is increased because of the active voltage positioning
(see Figure 8).
Figure 8. DROOP vs Non-DROOP in Transient Voltage Window
In applications where the DC and the AC tolerances are not separated, which means there is not a strict DC
tolerance requirement, the droop method can be used.
Copyright
2011, Texas Instruments Incorporated
13
Product Folder Link(s): TPS51317
