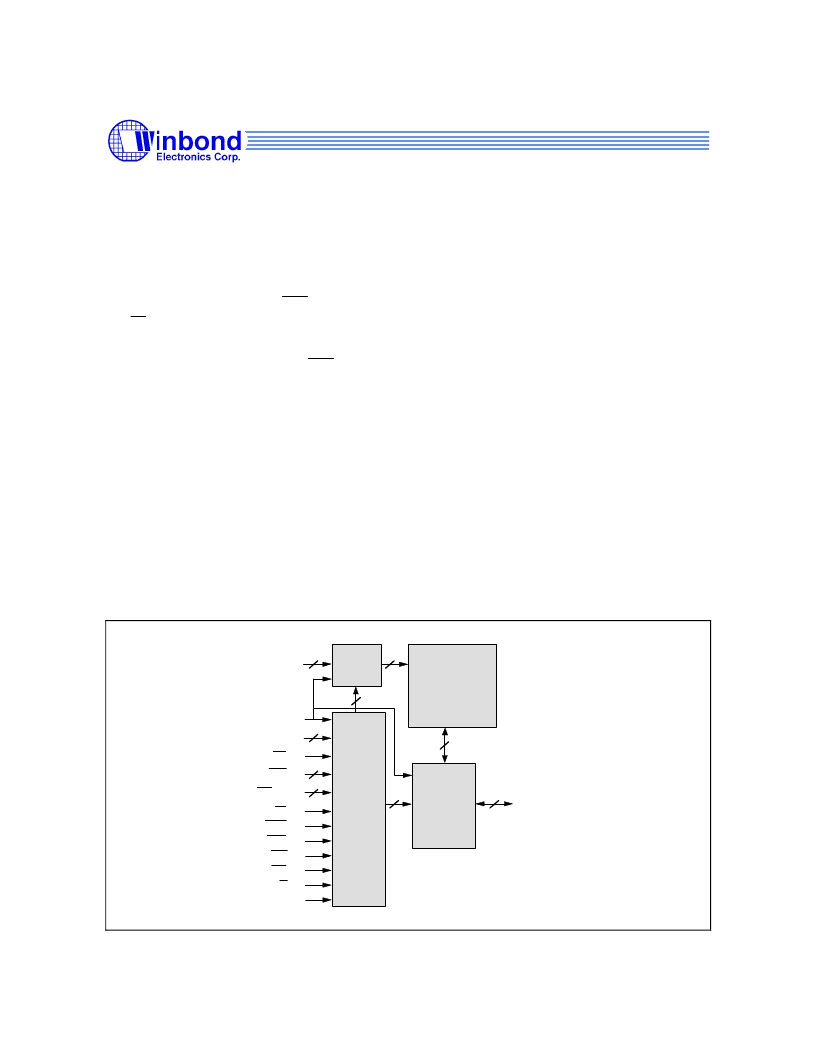

W25P010A
32K
×
32 BURST PIPELINED HIGH-SPEED
CMOS STATIC RAM
Publication Release Date: September 1996
- 1 -
Revision A7
GENERAL DESCRIPTION
The W25P010A is a high-speed, low-power, synchronous-burst pipelined, CMOS static RAM
organized as 32,768
×
32 bits that operates on a single 3.3-volt power supply. A built-in two-bit burst
address counter supports both Pentium
burst mode and linear burst mode. The mode to be
executed is controlled by the
pin. Pipelining or non-pipelining of the data outputs is controlled by
the
W25P010A support 2T/2T mode whcih will delay one cycle data output in a burst read cycle when the
device is deselected by CE2 or
CE3
. This mode supports 3-1-1-1-1-1-1-1 in a two-bank, back-to-
back burst read cycle.
FEATURES
Synchronous operation
High-speed access time: 6/7/8 nS (max.)
Single +3.3V power supply
Individual byte write capability
3.3V LVTTL compatible I/O
Clock-controlled and registered input
Asynchronous output enable
Pipelined/non-pipelined data output capability
Supports snooze mode (low-power state)
Internal burst counter supports Intel burst
mode & linear burst mode
Supports 2T/2T mode
Packaged in 100-pin QFP and TQFP
BLOCK DIAGRAM
A(14:0)
DATA I/O
REGISTER
INPUT
REGISTER
CONTROL
LOGIC
REGISTER
32K X 32
CORE
ARRAY
CE(3:1)
BWE
CLK
OE
GW
ADSC
ADSP
ADV
LBO
BW(4:1)
I/O(32:1)
FT
ZZ
