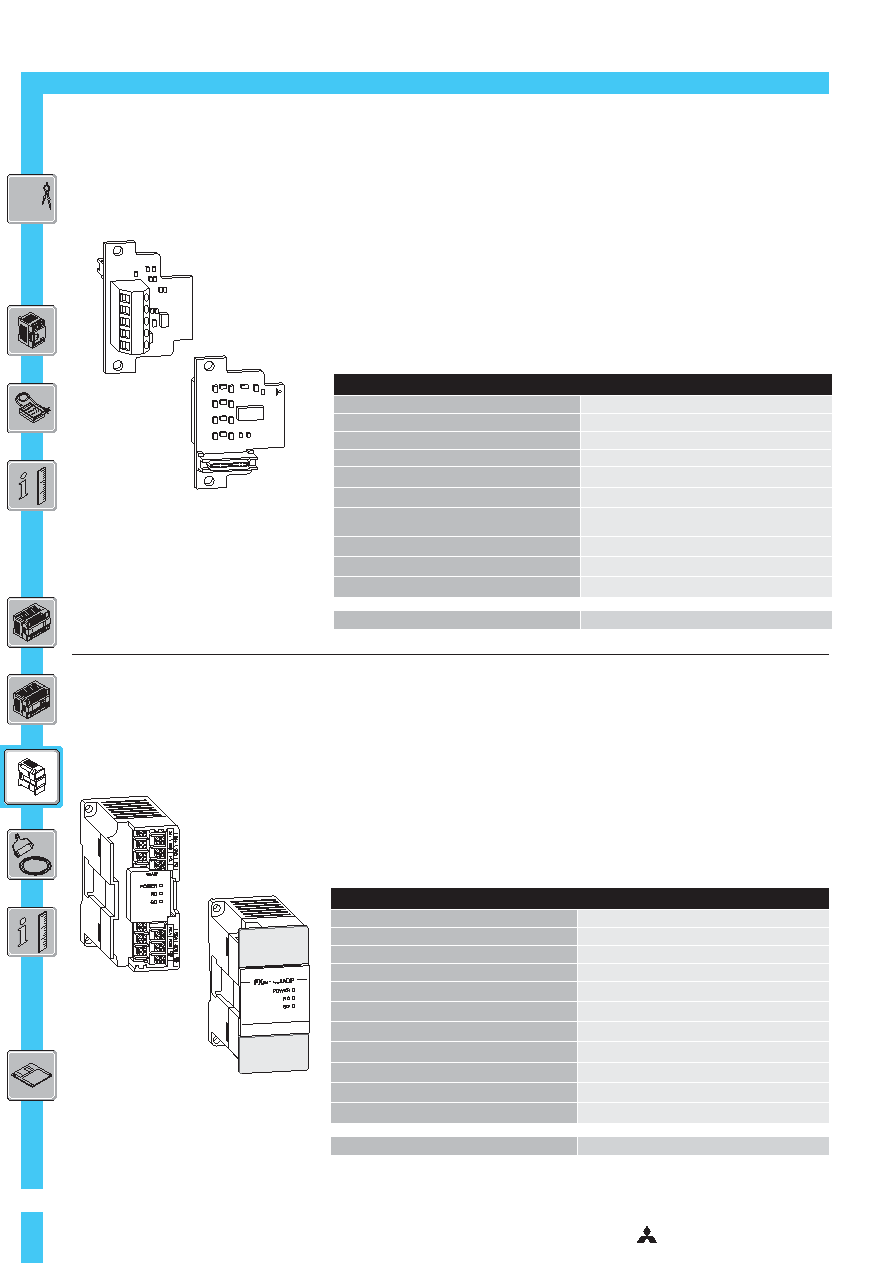

The FX2N-485BD interface adapter board
provides the FX2N unit with an additional
RS-485 interface. The adapter, which is sim-
ply inserted into the base unit’s expansion
slot, enables the configuration of RS-485
1:n multidrop, parallel link or peer-to-peer
networks with FX0N/FX2N systems.
You can also transfer data directly to other
RS-485 peripherals using the RS dedicated
instruction.
In peer-to-peer network configurations
the adapter enables active communica-
tion between the individual FX0N/FX2N
controllers via the RS-485 interfaces.
In 1:n multidrop networks the adapter
can be use to provide communication
with a host master station of the A series.
Interface Adapter FX2N-485BD
¨ FX0N FX2N
Specifications
FX2N-485BD
General specifications
Conforms to FX2N base units
Power supply
5 V DC / 60 mA from base unit
Interface
RS485 / RS422
Communication speed
bit/s
300 – 19200
Communication cable
Twisted pair
Communication distance
m
max.50
Protocols
Protocol 1 or 4 of AJ71UC24 /noprotocol/parallellink/
peer-to-peernetwork
Related I/O points
Station
0
Weight
kg
0.08
Dimensions (W x H x D)
mm
35 x 54 x 22
Order information
Art. no.
65597
The FX0N-485ADP communications mod-
ule enables the configuration of 1:n mul-
tidrop, parallel link and peer-to-peer data
networks using the RS-485 interface.
Configuration of peer-to-peer data net-
works requires version 2.00 of the FX0N-
485ADP (see p. 21 for details).
In FX0N systems the module is con-
nected directly to the communications
bus on the left-hand side of the FX0N
base unit. The FX2N-CNV-BD communi-
cations adapter is required for connec-
tion to FX2N base unit.
Specifications
FX0N-485ADP
General specifications
Conforms to FX0N base units
Power supply
5 V DC / max.30 mA (from base unit),24 V DC / 50 mA
Interface
RS485
Communication speed
bit/s
300 – 19200
Communication distance
m
Max.500
Communication cable
Shielded cable
Communication mode
Half duplex
Protocols
Protocol1and4ofAJ71UC24
Related I/O points
—
Weight
kg
0.3
Dimensions (W x H x D)
mm
43 x 90 x 87
Order information
Art. no.
66665
Communications Module FX0N-485ADP
FX0N FX2N
RDA
RDB
SD
A
SD
B
SG
JY
3
1B
8
9
0
1C
FX
-4
85-
BD
2N
MELSEC FX0N/FX2N
SPECIAL FUNCTION MODULES
Communications Modules
BASICS
X
FX
F
MITSUBISHI ELECTRIC
46
