400 MSPS 14-Bit, 1.8 V CMOS
Direct Digital Synthesizer
AD9954
FEATURES
Rev.
0
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
Tel: 781.329.4700Fax: 781.326.8703
www.analog.com400 MSPS internal clock speed
Integrated 14-bit DAC
Programmable phase/amplitude dithering
32-bit tuning word
Phase noise ≤ –120 dBc/Hz @ 1 kHz offset (DAC output)
Excellent dynamic performance
>80 dB SFDR @ 160 MHz (±100 kHz offset) A
OUT
Serial I/O control
Ultrahigh speed analog comparator
Automatic linear and nonlinear frequency sweeping
capability
4 frequency/phase offset profiles
1.8 V power supply
Software and hardware controlled power-down
48-lead TQFP/EP package
Integrated 1024 word × 32-bit RAM
Support for 5 V input levels on most digital inputs
PLL REFCLK multiplier (4× to 20×)
Internal oscillator, can be driven by a single crystal
Phase modulation capability
Multichip synchronization
APPLICATIONS
Agile LO frequency synthesis
Programmable clock generator
FM chirp source for radar and scanning systems
Automotive radar
Test and measurement equipment
Acousto-optic device drivers

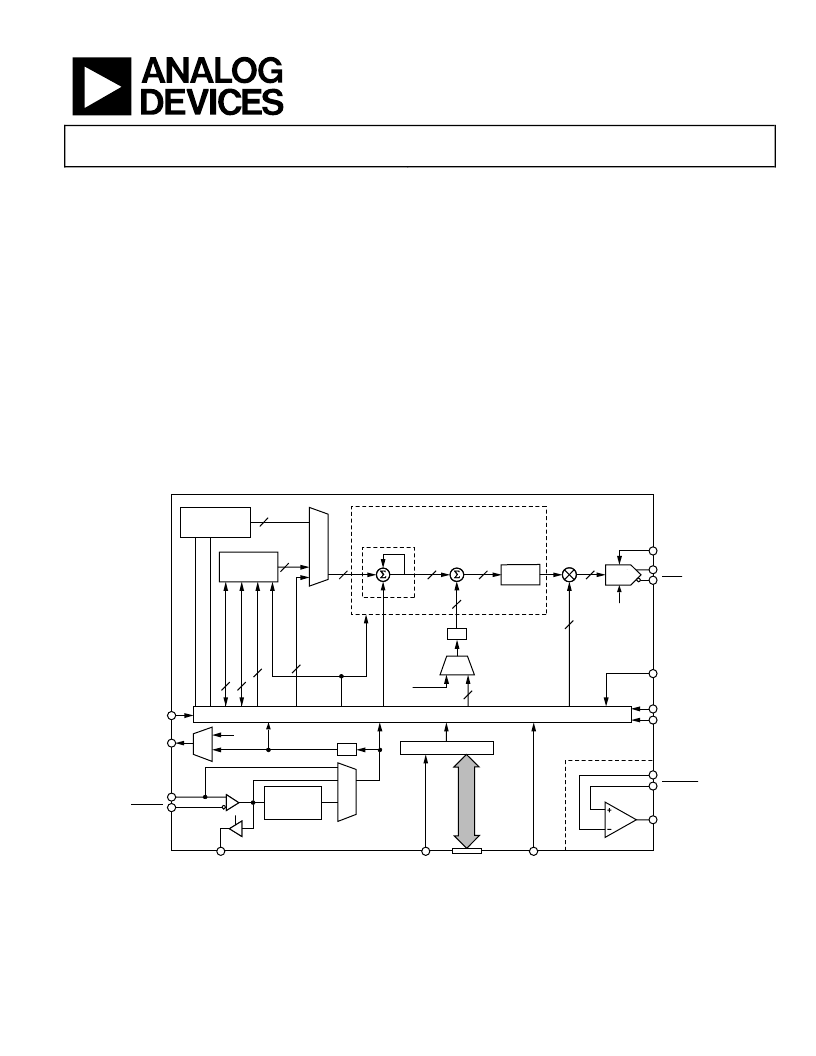

FUNCTIONAL BLOCK DIAGRAM
FREQUENCY
ACCUMULATOR
STATIC RAM
1024
×
32
COS(X)
CONTROL REGISTERS
OSCILLATOR/BUFFER
COMPARATOR
SYNC
ENABLE
I/O UPDATE
DAC_R
SET
DDS CORE
PHASE
OFFSET
PHASE
ACCUMULATOR
Z
–1
Z
–1
IOUT
IOUT
OSK
PWRDWNCTL
COMP_OUT
COMP_IN
COMP_IN
REFCLK
REFCLK
CRYSTAL OUT
I/O PORT
PS<1:0>
RAM DATA
<31:18>
DDS
CLOCK
RAM
DATA
D
F
T
R
D
D
P
A
R
DAC
MUX
SYSTEM
CLOCK
SYSTEM
CLOCK
SYNC_IN
SYNC_CLK
RESET
TIMING AND CONTROL LOGIC
4
×
–20
×
CLOCK
MULTIPLIER
÷ 4
AD9954
32
32
32
14
14
14
32
R
10
R
3
19
14
0
32
32
M
U
X
M
U
X
M
U
X
0
θ
Figure 1. 48-LeadTQFP/EP
