參數資料
型號: AD7760BCP
廠商: ANALOG DEVICES INC
元件分類: ADC
英文描述: 2.5 MSPS, 20-Bit ADC
中文描述: 1-CH 20-BIT DELTA-SIGMA ADC, PARALLEL ACCESS, QCC48
封裝: LFCSP-48
文件頁數: 1/22頁
文件大小: 868K
代理商: AD7760BCP

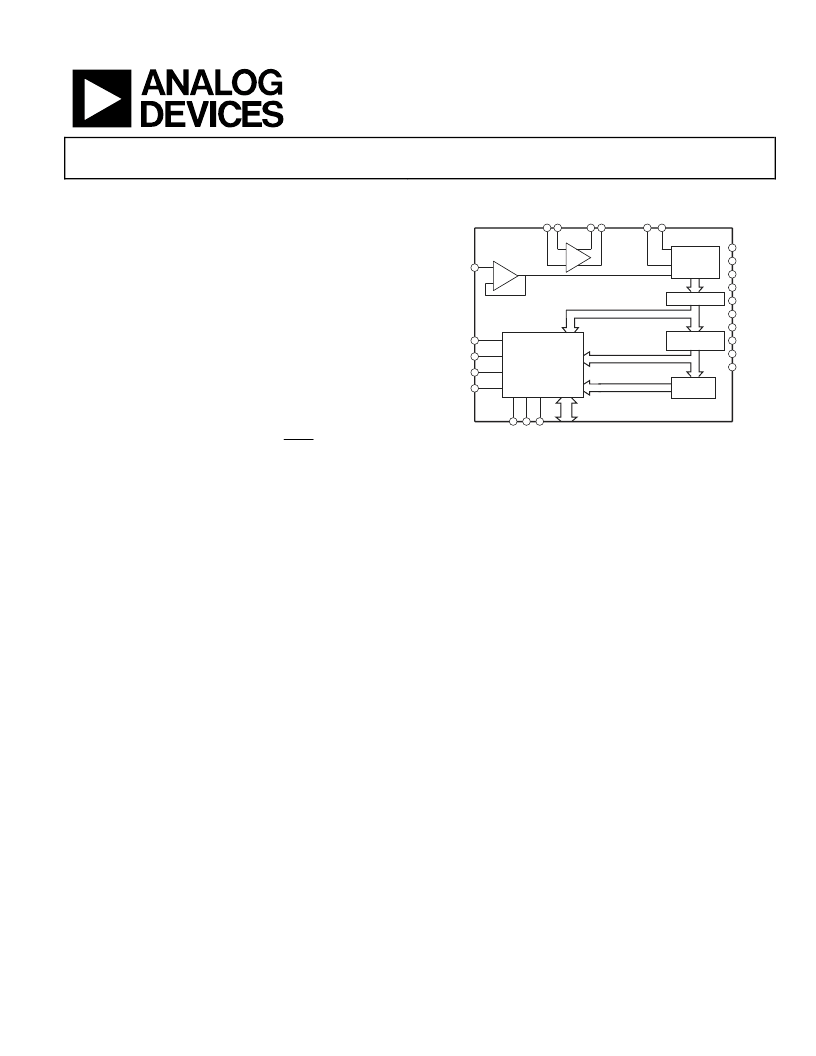

2.5 MSPS, 20-Bit
Σ
ADC
Preliminary Technical Data
AD7760
FEATURES
High performance 20-bit Sigma-Delta ADC
118dB SNR at 78kHz output data rate
100dB SNR at 2.5MHz output data rate
2.5 MHz maximum fully filtered output word rate
Programmable over-sampling rate (8x to 256x)
Flexible parallel interface
Fully differential modulator input
On-chip differential amplifier for signal buffering
Low pass FIR filter with default or user programmable
coefficients
Over-range alert bit
Digital offset and gain correction registers
Filter bypass modes
Low power and power down modes
Synchronization of multiple devices via SYNC pin
APPLICATIONS
Data acquisition systems
Vibration analysis
Instrumentation
PRODUCT OVERVIEW
Rev.
PrN
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.326.8703
2004 Analog Devices, Inc. All rights reserved.
www.analog.com
FUNCTIONAL BLOCK DIAGRAM
DIFF
Multi-Bit
Sigma-Delta
Modulator
AD7760
Control Logic,
I/O and
Registers
Reconstruction
Programmable
Decimation
FIR Filter
Engine
DB0 - DB15
VIN+
VIN-
AVDD1
AVDD2
AVDD3
AVDD4
DECAP
RBIAS
AGND
VDRIVE
DVDD
VREF+
MCLK
W
D
DGND
BUF
-
+
Figure 1.
The AD7760 high performance 20-bit sigma delta analog to
digital converter combines wide input bandwidth and high
speed with the benefits of sigma delta conversion with
performance of 100dB SNR at 2.5MSPS making it ideal for high
speed data acquisition. Wide dynamic range combined with
significantly reduced anti-aliasing requirements simplify the
design process. An integrated buffer to drive the reference, a
differential amplifier for signal buffering and level shifting, an
over-range flag, internal gain & offset registers and a low-pass
digital FIR filter make the AD7760 a compact highly integrated
data acquisition device requiring minimal peripheral
component selection. In addition the device offers
programmable decimation rates and the digital FIR filter can be
adjusted if the default characteristics are not appropriate to the
application. The AD7760 is ideal for applications demanding
high SNR without necessitating design of complex front end
signal processing.
The differential input is sampled at up to 40MS/s by an analog
modulator. The modulator output is processed by a series of
low-pass filters, the final one having default or user
programmable coefficients. The sample rate, filter corner
frequencies and output word rate are set by a combination of
the external clock frequency and the configuration registers of
the AD7760.
The reference voltage supplied to the AD7760 determines the
analog input range. With a 4V reference, the analog input range
is ±3.2V differential biased around a common mode of 2V. This
common mode biasing can be achieved using the on-chip
differential amplifiers, further reducing the external signal
conditioning requirements.
The AD7760 is available in an exposed paddle 64-lead TQFP
and 48-lead CSP packages and is specified over the industrial
temperature range from -40°C to +85°C.
