REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.
a
AD9824
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
Fax: 781/326-8703
Analog Devices, Inc., 2002Complete 14-Bit 30 MSPS
CCD Signal Processor

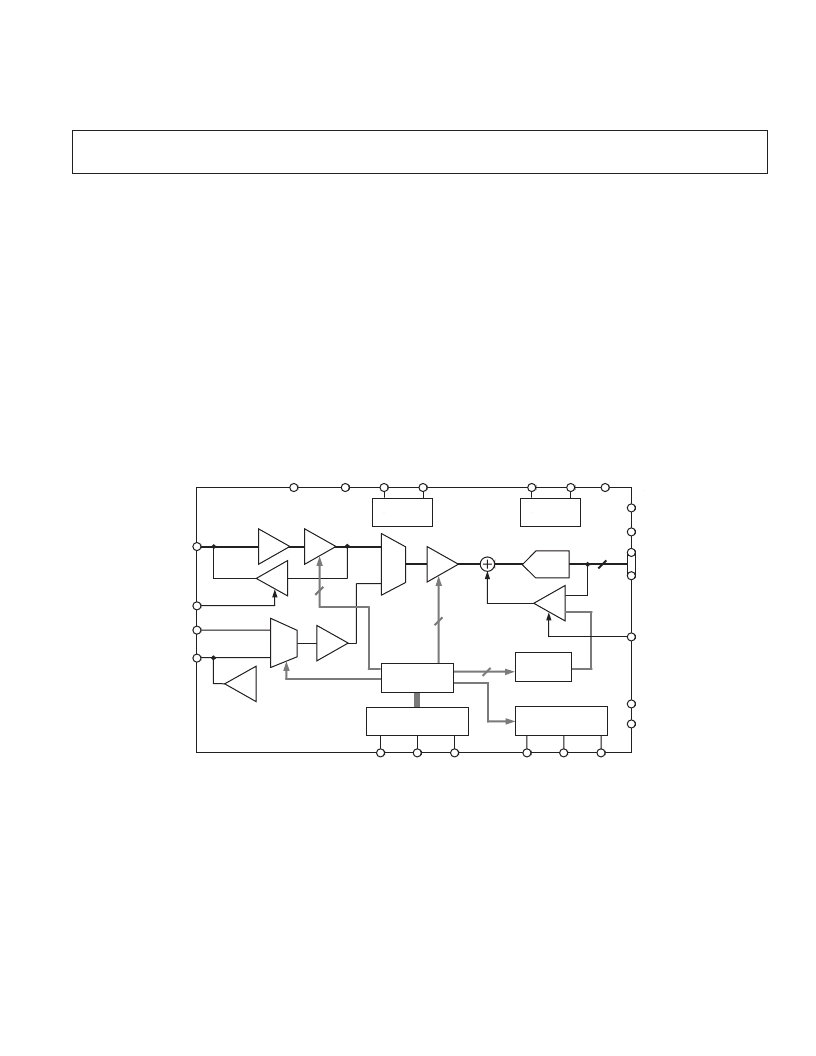

FUNCTIONAL BLOCK DIAGRAM
DATACLK
SHD
SHP
2:1
MUX
DOUT
AUX2IN
CLPDM
CCDIN
AUX1IN
INTERNAL
TIMING
2dB~36dB
AVDD
DVDD
DVSS
AVSS
DRVDD
DRVSS
10
8
DIGITAL
INTERFACE
SDATA
SCK
SL
CDS
VGA
BUF
2:1
MUX
CLP
AD9824
CLP
ADC
4dB
6dB
COLOR
STEERING
HD
VD
PxGA
6
BAND GAP
REFERENCE
VRT
VRB
CLP
14
BLK CLAMP
LEVEL
CONTROL
REGISTERS
CLPOB
PBLK
FEATURES
14-Bit 30 MSPS A/D Converter
30 MSPS Correlated Double Sampler (CDS)
4 dB
6 dB 6-Bit Pixel Gain Amplifier (PxGA
)
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
Low Noise Clamp Circuits
Analog Preblanking Function
Auxiliary Inputs with VGA and Input Clamp
3-Wire Serial Digital Interface
3 V Single-Supply Operation
Low Power: 153 mW @ 3 V Supply
Space-Saving 48-Lead LFCSP Package
APPLICATIONS
High Performance Digital Still Cameras
Industrial/Scientific Imaging
PRODUCT DESCRIPTION
The AD9824 is a complete analog signal processor for CCD
applications. It features a 30 MHz single-channel architecture
designed to sample and condition the outputs of interlaced and
progressive scan area CCD arrays. The AD9824’s signal chain
consists of an input clamp, a correlated double sampler (CDS),
PxGA
, a digitally controlled VGA, a black level clamp, and a
14-bit A/D converter. Additional input modes are also pro-
vided for processing analog video signals.
The internal registers are programmed through a 3-wire
serial digital interface. Programmable features include gain
adjustment, black level adjustment, input configuration, and
power-down modes.
The AD9824 operates from a single 3 V power supply, typically
dissipates 153 mW, and is packaged in a 48-lead LFCSP.
PxGA
is a registered trademark of Analog Devices, Inc.
